ViewSonic  |  SKU: ViewSonic CDE8630-E1

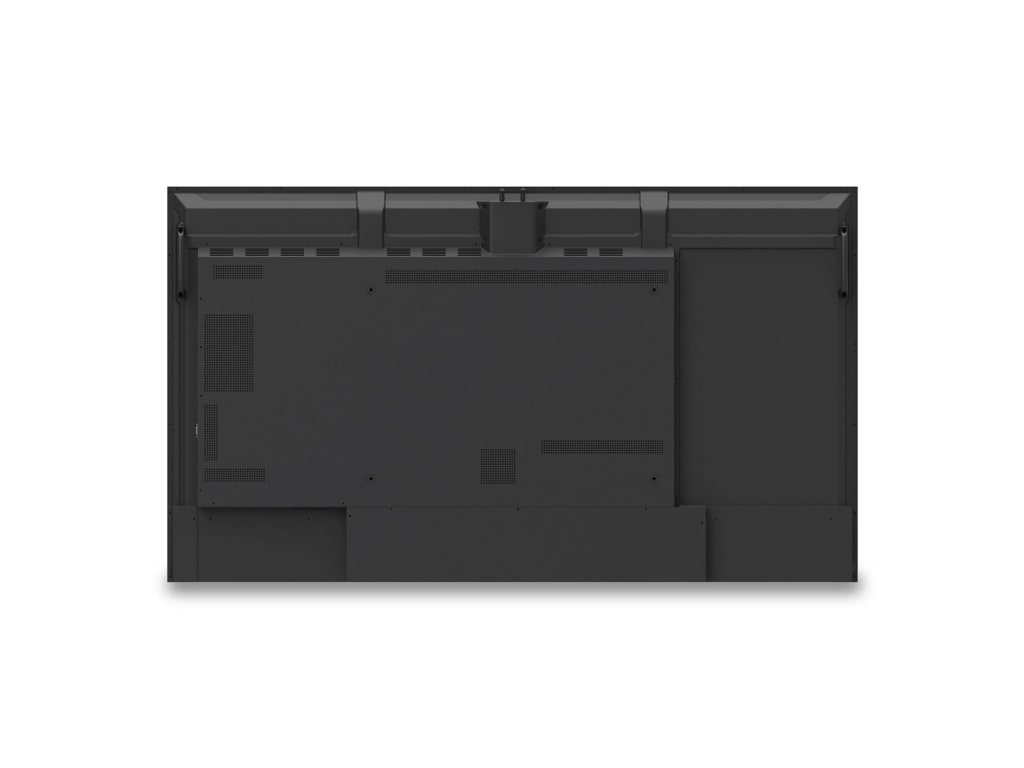

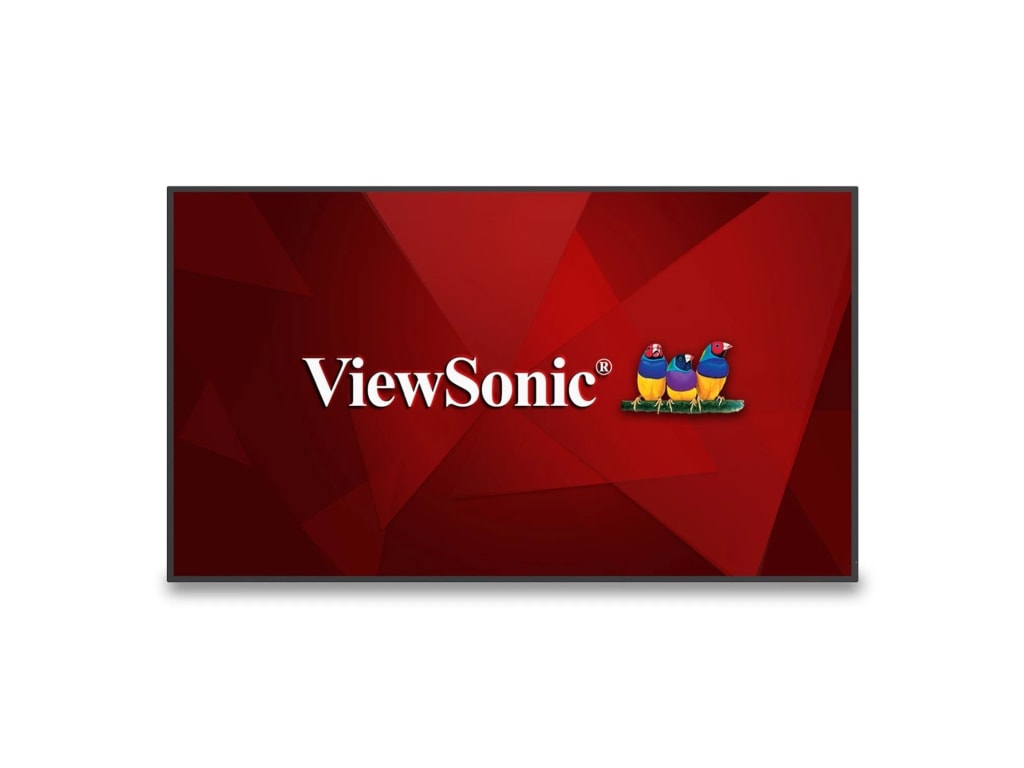

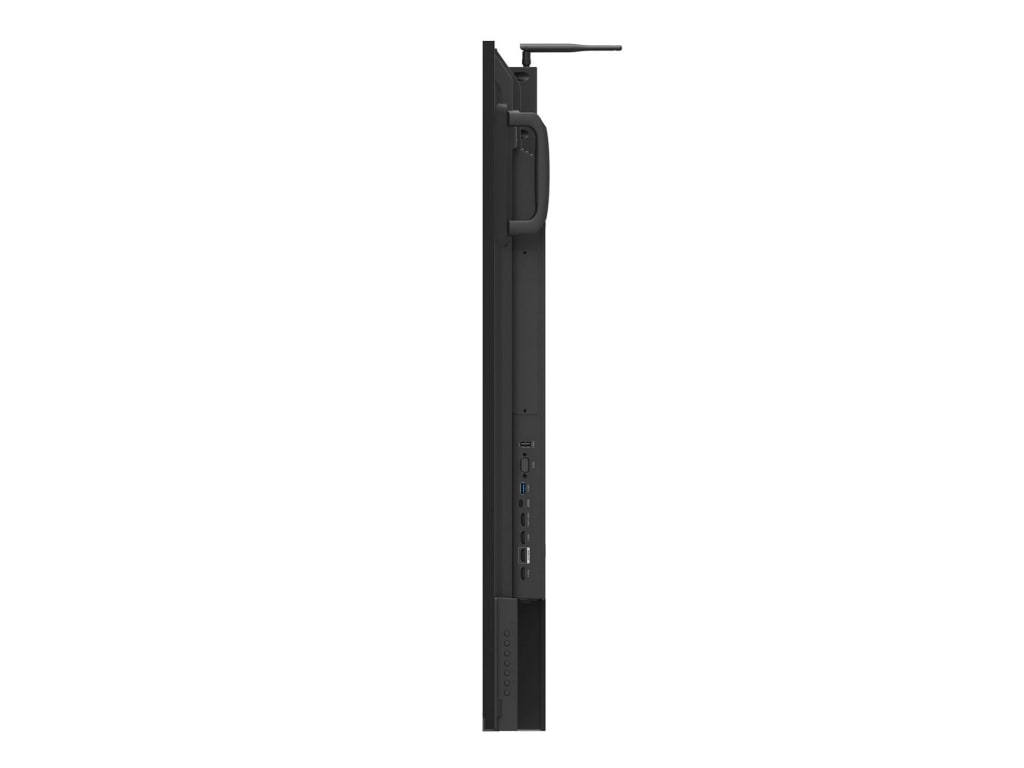

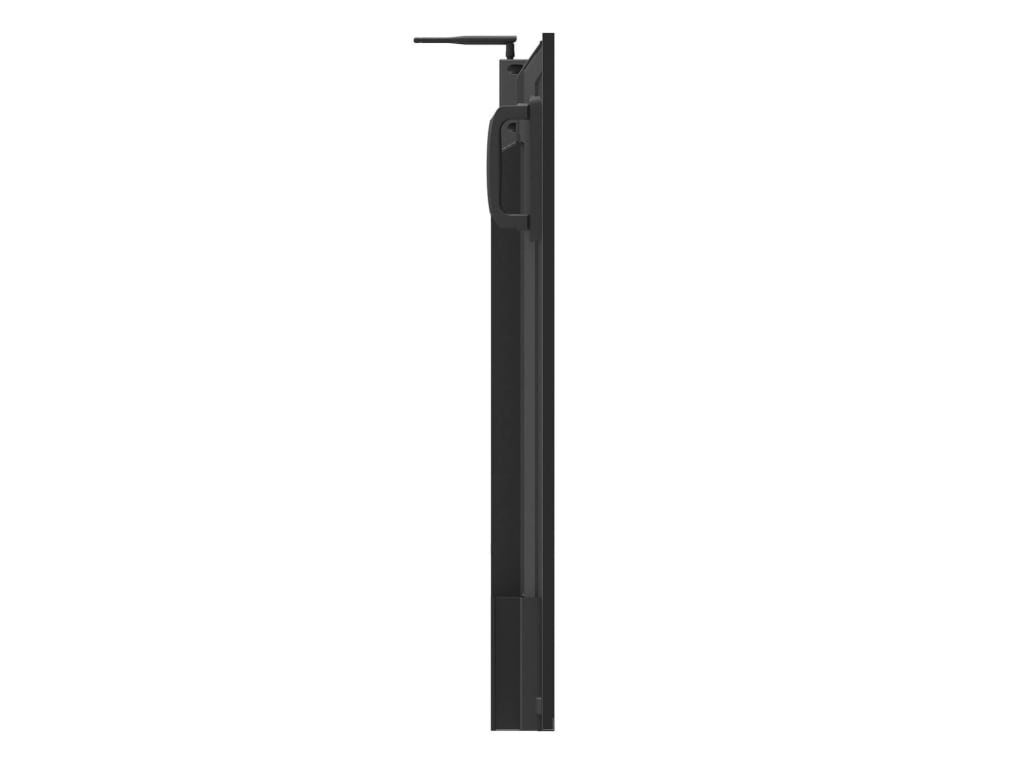

ViewSonic CDE8630-E1 86-inch 4K Digital Display

Shipping calculated at checkout.

Spec Sheet: View PDF File

Product Specifications

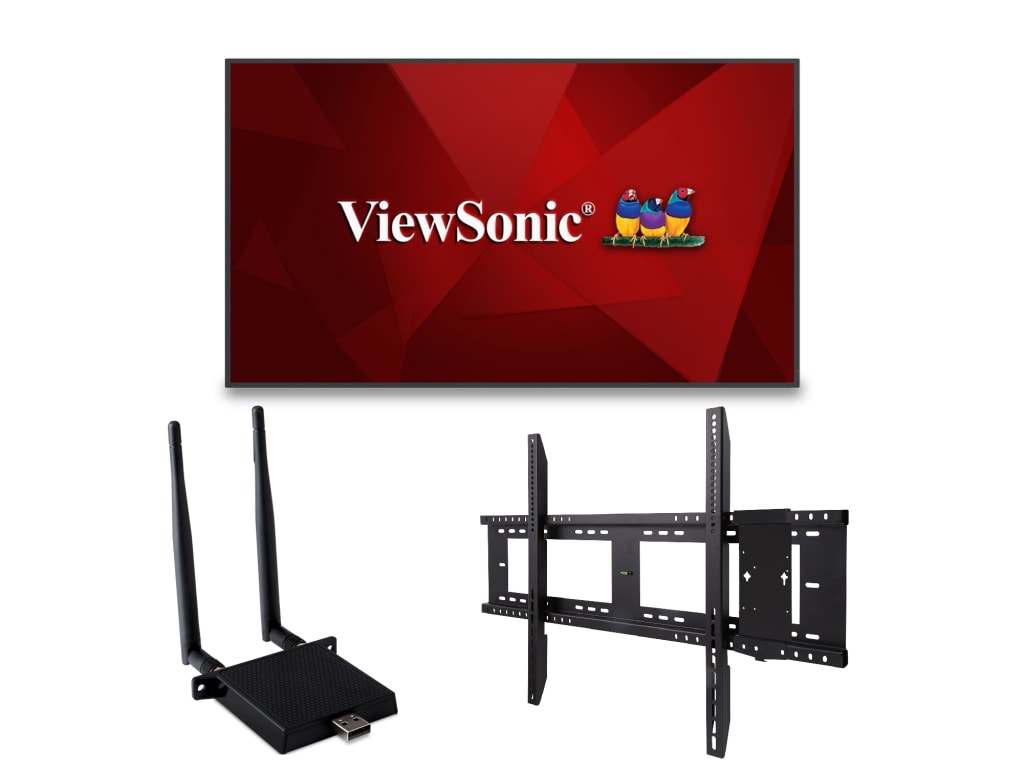

Model: ViewSonic CDE8630-E1 - 86" 4K Digital Display Bundle
Panel Spec
Display Type TFT-LCD
Size 86"
Touch Screen No
Resolution 3840 x 2160 (4K UHD)
Aspect Ratio 16 : 9
Color Depth 10 bit
Contrast Ratio 1,200 : 1
Backlight LED
Viewing Angle 178° (H), 178° (V)
HDMI 3 x HDMI 2.0
DisplayPort 1 x DisplayPort 1.2
Audio 1 x Audio In, 1 x Audio Out
Power Consumption Typical: 250W, Max: 400W
Power Supply AC 100-240V (universal), 50-60Hz
Operating Temperature 0 - 40°C
Storage Temperature -20 - 60°C
Humidity 20 - 80% RH, Non-Condensing
Physical Properties
Housing Metal
Weight 89.6 kg (197.5 lb)
Dimensions (L x W x H) 1973.8 x 1141.8 x 102.8 mm (77.7 x 44.9 x 4.0 in)
VESA Mount 600 x 400 mm
What's in the Box:
  • Display

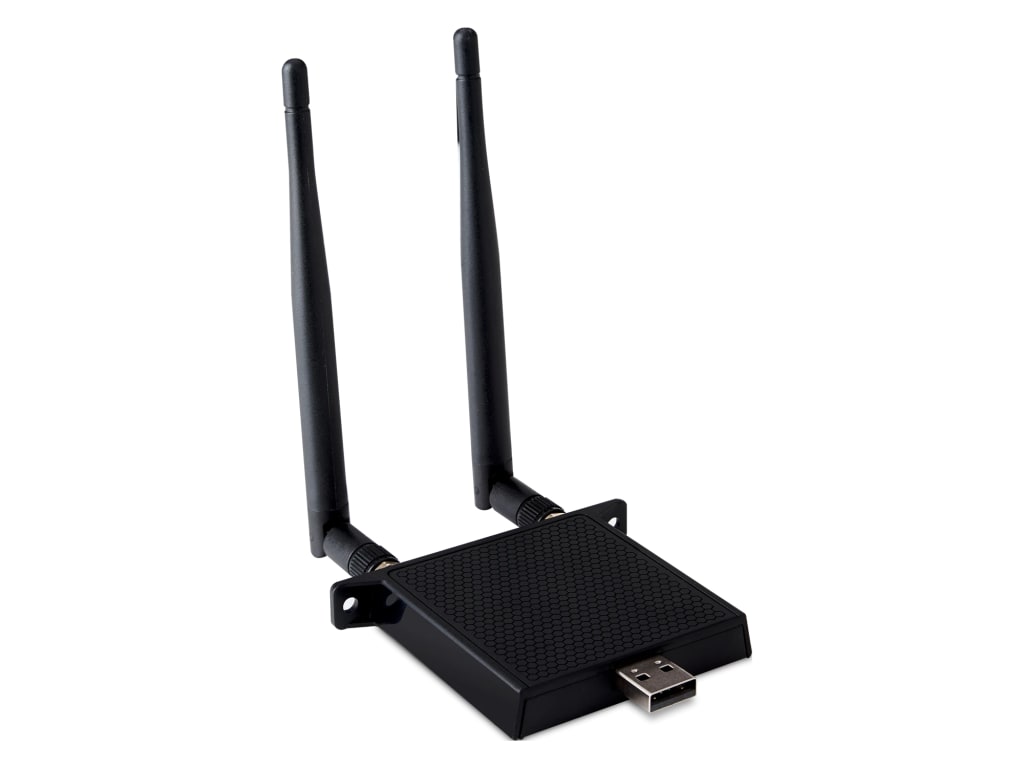

  • Wireless module

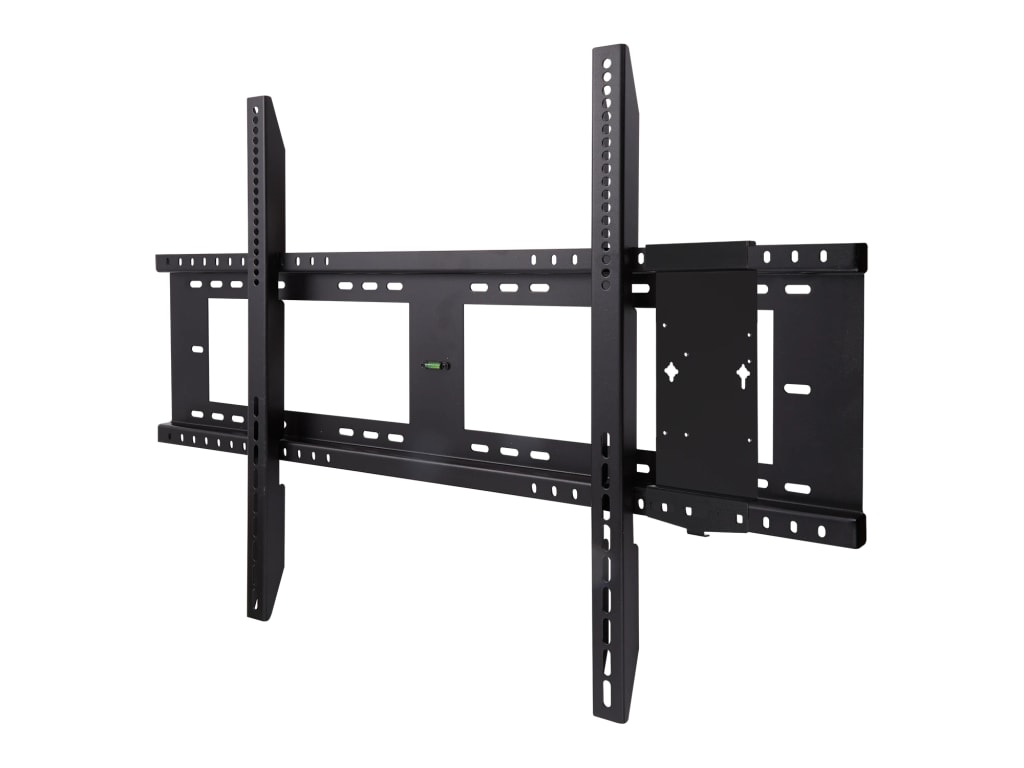

  • Wall mount
  • Remote control with batteries
  • Quick Start Guide
  • Power cable
  • HDMI Cable
  • USB-C cable
  • Wall Mount Screws
  • RS232 cable
Product Description:

The ViewSonic CDE8630-E1 86-inch 4K Digital Display Bundle offers unparalleled picture quality and clarity, making it ideal for businesses seeking top-notch visual solutions.

  • High brightness of 450 cd/m2 ensures clear visibility in any lighting environment.
  • Seamless integration with AV control systems like Crestron, Extron, and AMX for enhanced functionality.
  • Powerful secured embedded platform enables smooth content playback without the need for additional devices.
  • Multiple connectivity options including 3 x HDMI 2.0, 1 x DisplayPort 1.2, and 1 x VGA for versatile usage.
  • Sturdy metal housing with VESA mount support for easy installation and durability.

ViewSonic CDE8630-E1 86-inch 4K Digital Display
