ViewSonic  |  SKU: ViewSonic CDE5530-E1

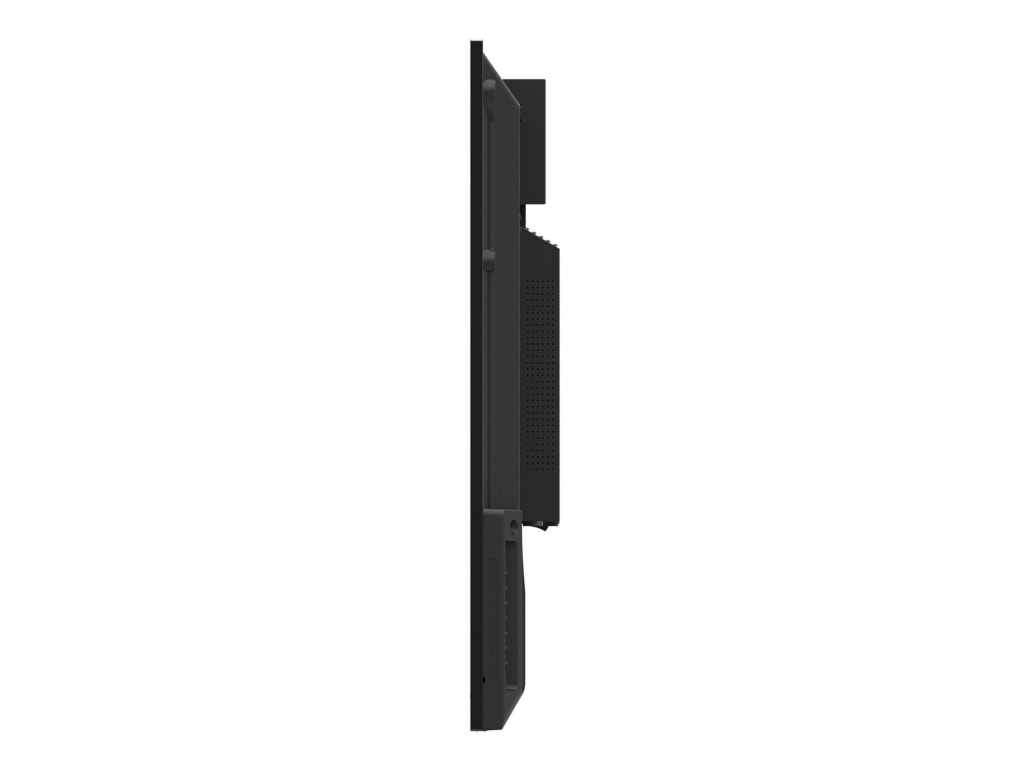

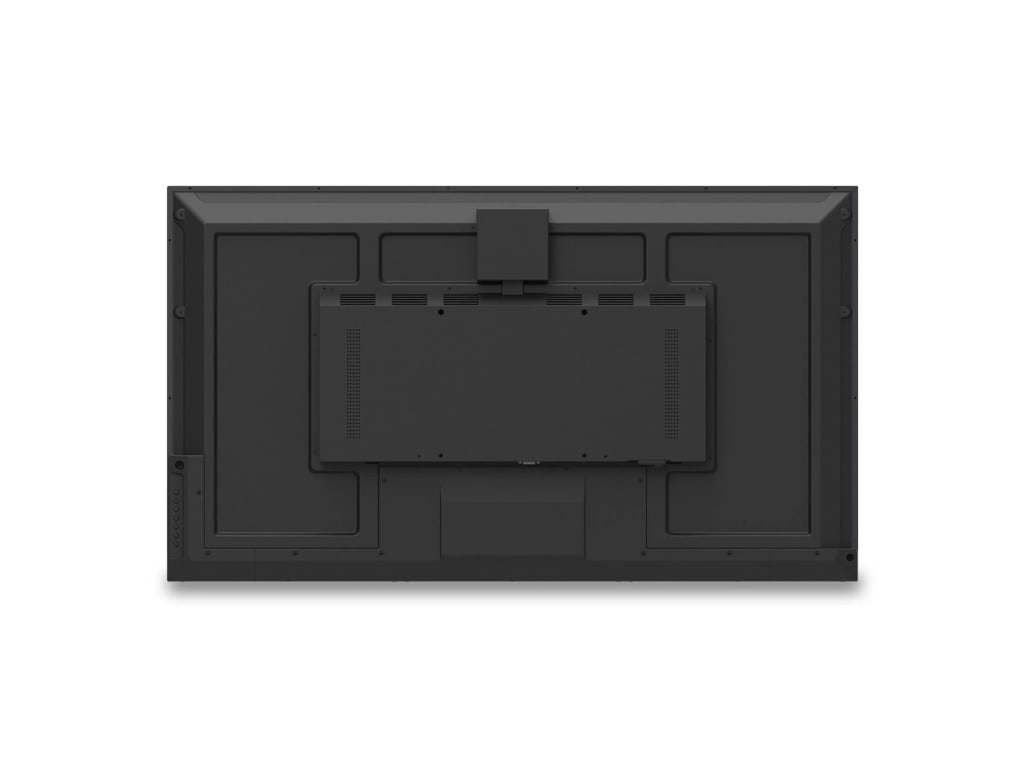

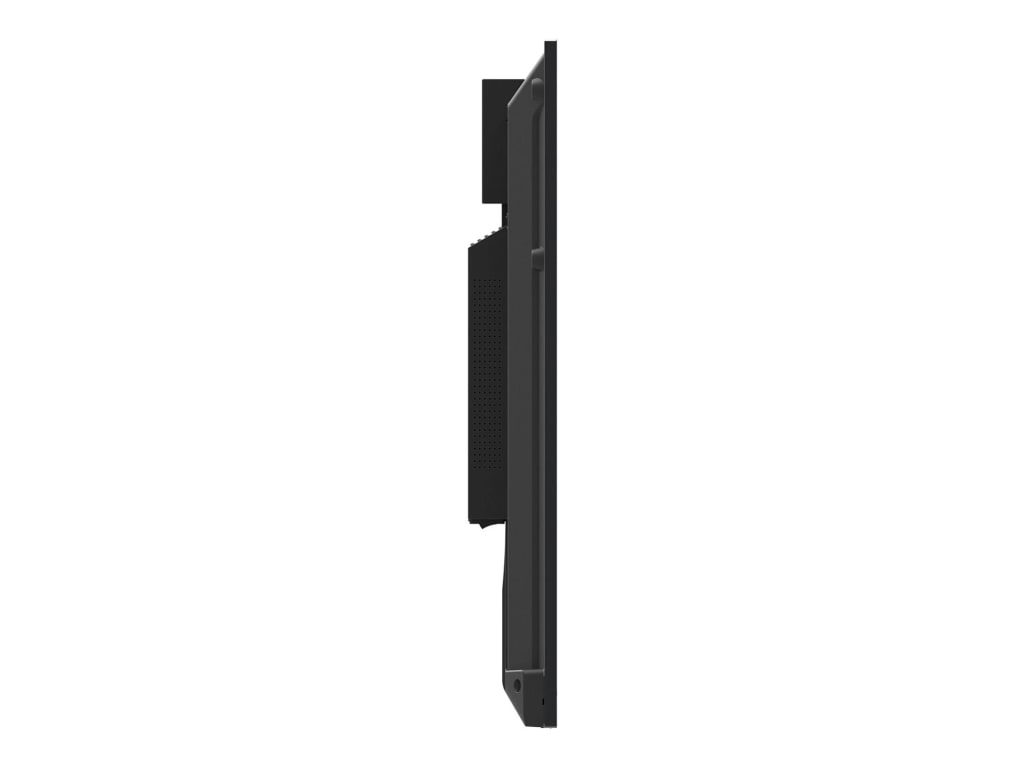

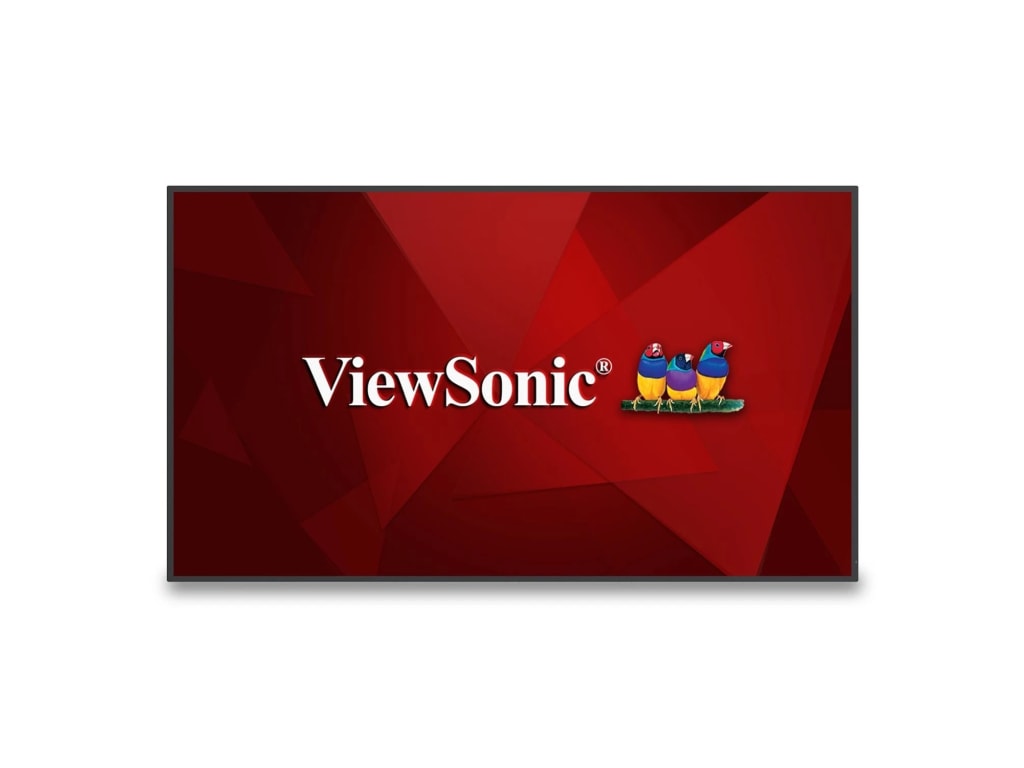

ViewSonic CDE5530-E1 55" 4K Digital Display

$1,417.61
Shipping calculated at checkout.

Request Replacement Part and Supplies

Spec Sheet: View PDF File

Product Specifications

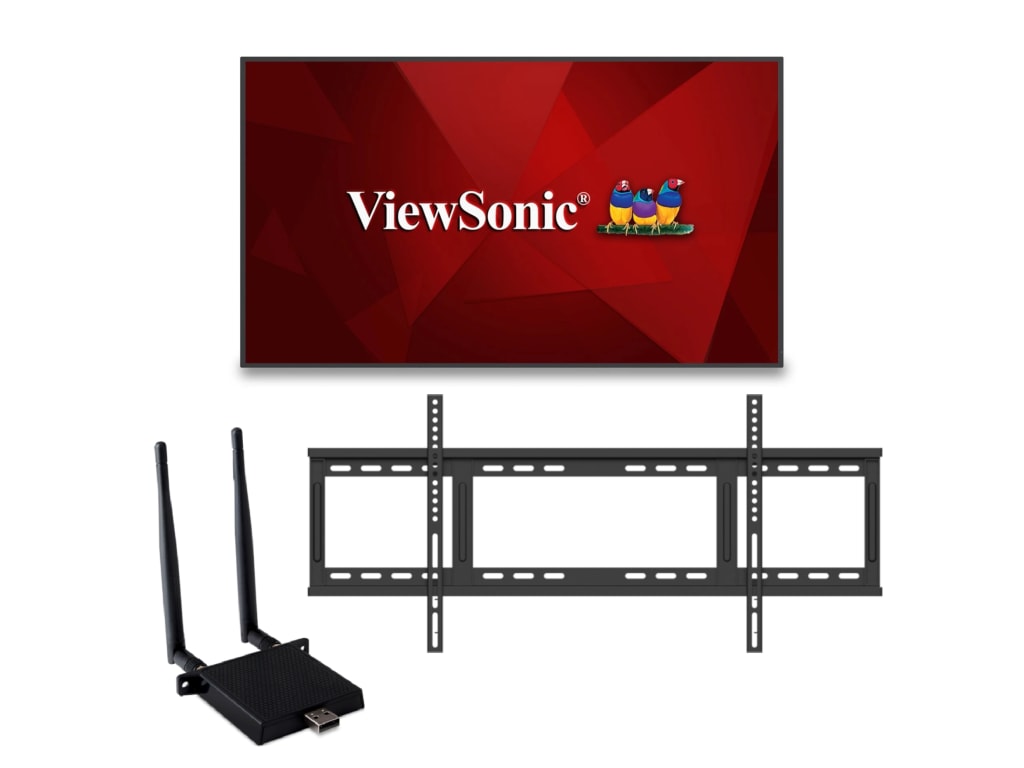

Model: ViewSonic CDE5530-E1 - 55" 4K Digital Display Bundle
Panel Spec
Display Type TFT-LCD
Size 55"
Touch Screen No
Resolution 3840 x 2160 (4K UHD)
Aspect Ratio 16 : 9
Color Depth 10 bit
Contrast Ratio 4000 : 1
Backlight LED
Viewing Angle 178° (H), 178° (V)
Interfaces
HDMI 2 x HDMI (2.0)
DisplayPort 1 x DisplayPort (1.2)
VGA 1 x VGA
Power Inputs
Power Consumption 100 W
Environmental
Operating Temperature 0 - 40°C
Storage Temperature -20 - 60°C
Humidity 10 - 90% RH, Non-Condensing
Physical Properties
Housing Metal
Weight 26.9 kg (59.3 lb)
Dimensions (L x W x H) 1248.7 x 719.7 x 89.5 mm (49.2 x 28.3 x 3.5 in)
Note N/A
What's in the Box:
  • Display

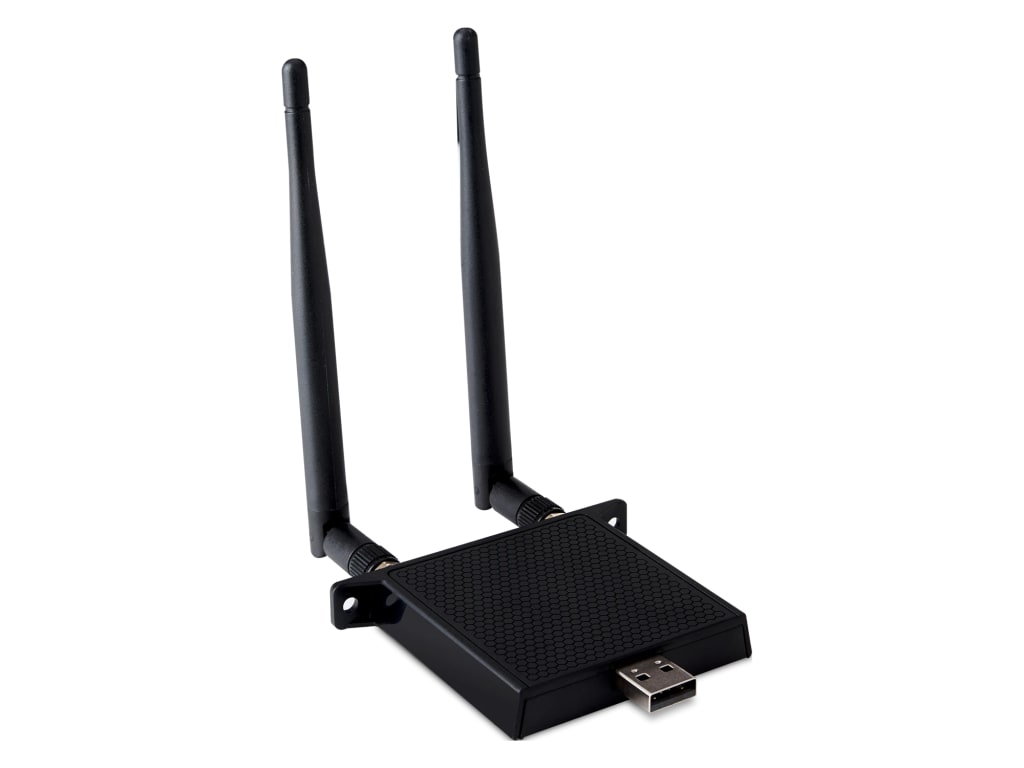

  • Wireless module

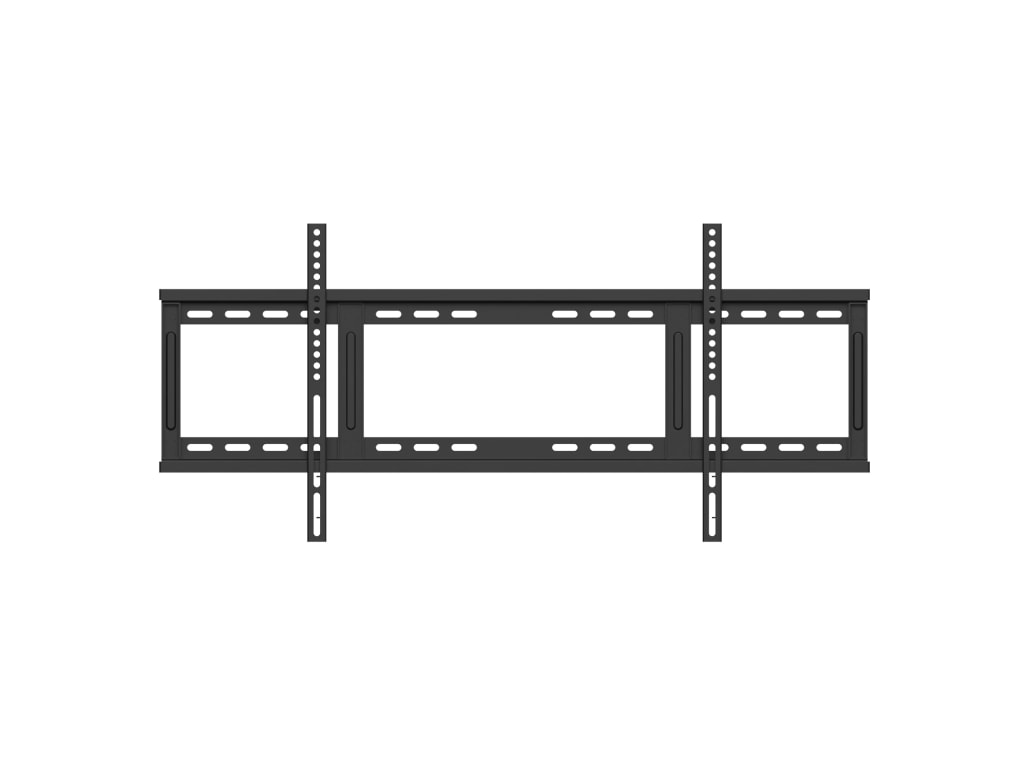

  • Wall mount
  • Remote control with batteries
  • Quick Start Guide
  • Power cable
  • HDMI Cable
  • USB-C cable
  • Wall Mount Screws
  • RS232 cable
  • Manuals/G
Product Description:

Elevate your visual experiences with the ViewSonic CDE5530-E1 55" 4K Digital Display Bundle. Enjoy stunning picture quality with 4K resolution and high brightness, perfect for presentations and collaborations.


  • Immerse yourself in crystal-clear visuals with a 3840 x 2160 resolution and 450 cd/m2 brightness.
  • Seamlessly integrate with AV control systems for easy operation and centralized management.
  • Connect wirelessly with the VB-WIFI-001 module for fast internet and Bluetooth 5 capabilities.
  • Experience reliable 24/7 performance and flexible installation options.

Enhance connectivity and content sharing with multiple participants using ViewBoard Cast and myViewBoard Display. With Crestron, Extron, and AMX certifications, seamless integration is at your fingertips. Easily manage all displays with myViewBoard Manager for hassle-free maintenance.


  • Enjoy cloud-based content management with Revel Digital platform integration.
  • Utilize the ViewSonic Signage Manager CMS for local content push.
  • Benefit from HDMI, DisplayPort, and VGA interfaces for versatile connectivity.
  • Operate in various environments with an operating temperature range of 0 - 40°C.
