Product Specifications

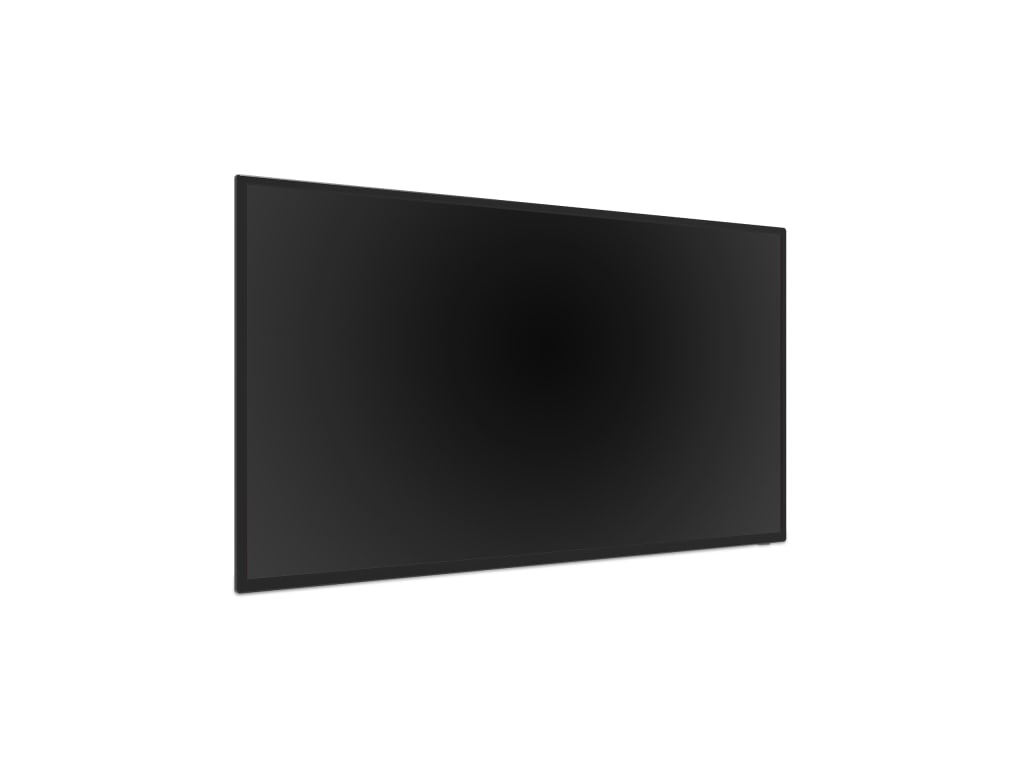

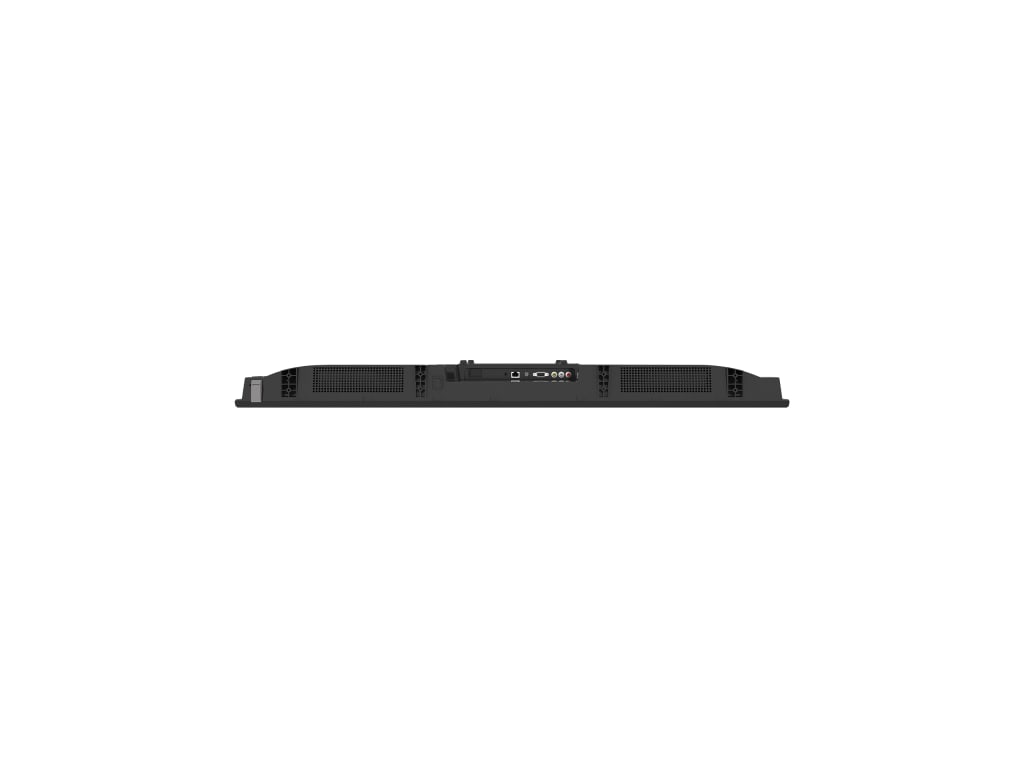

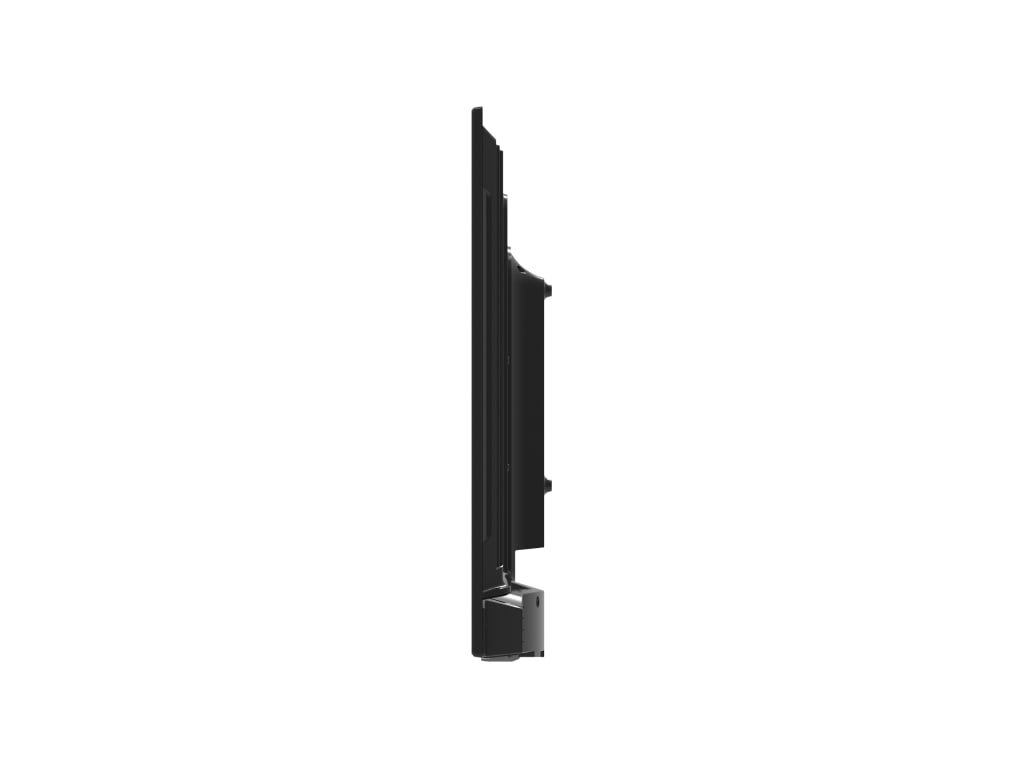

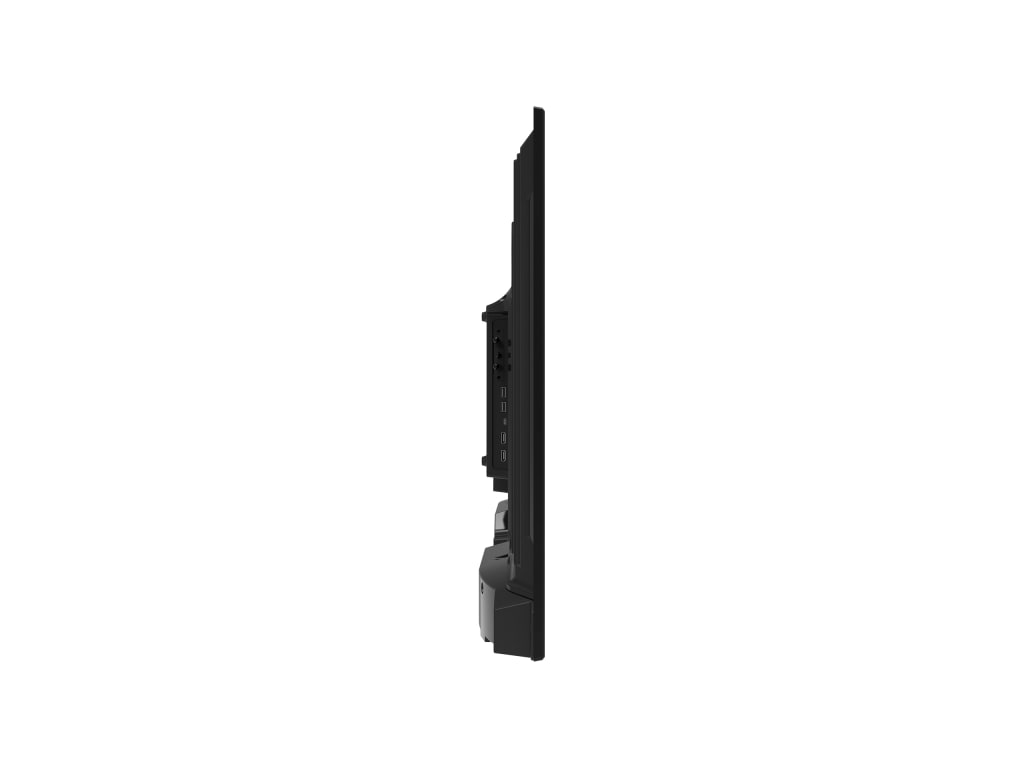

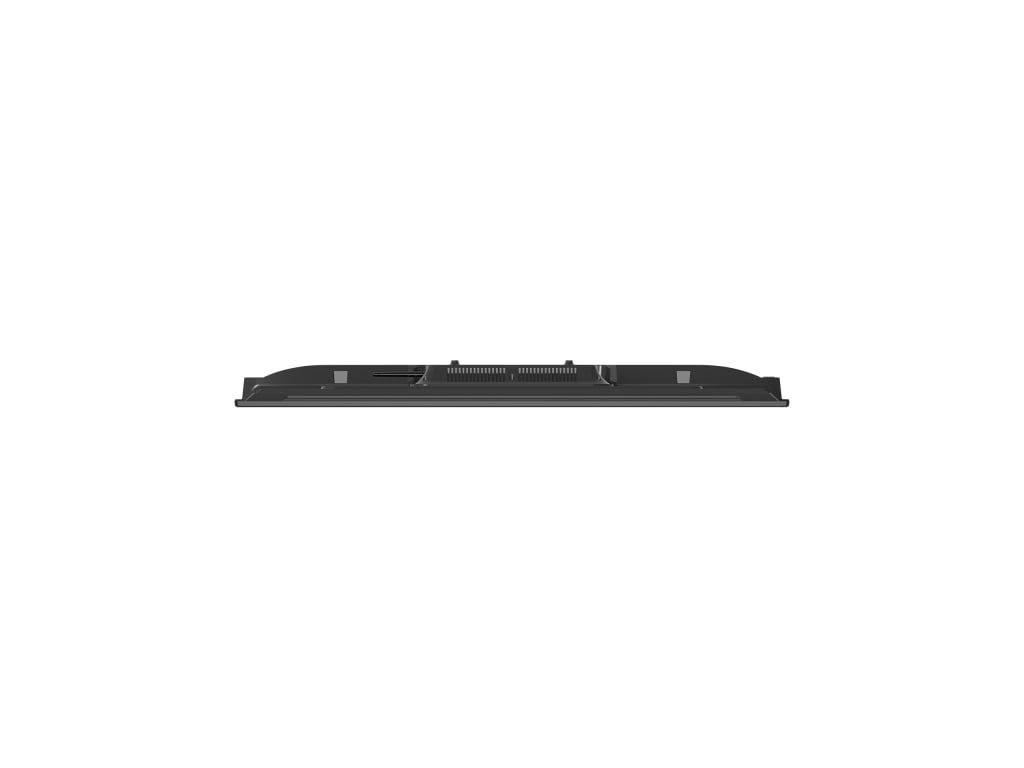

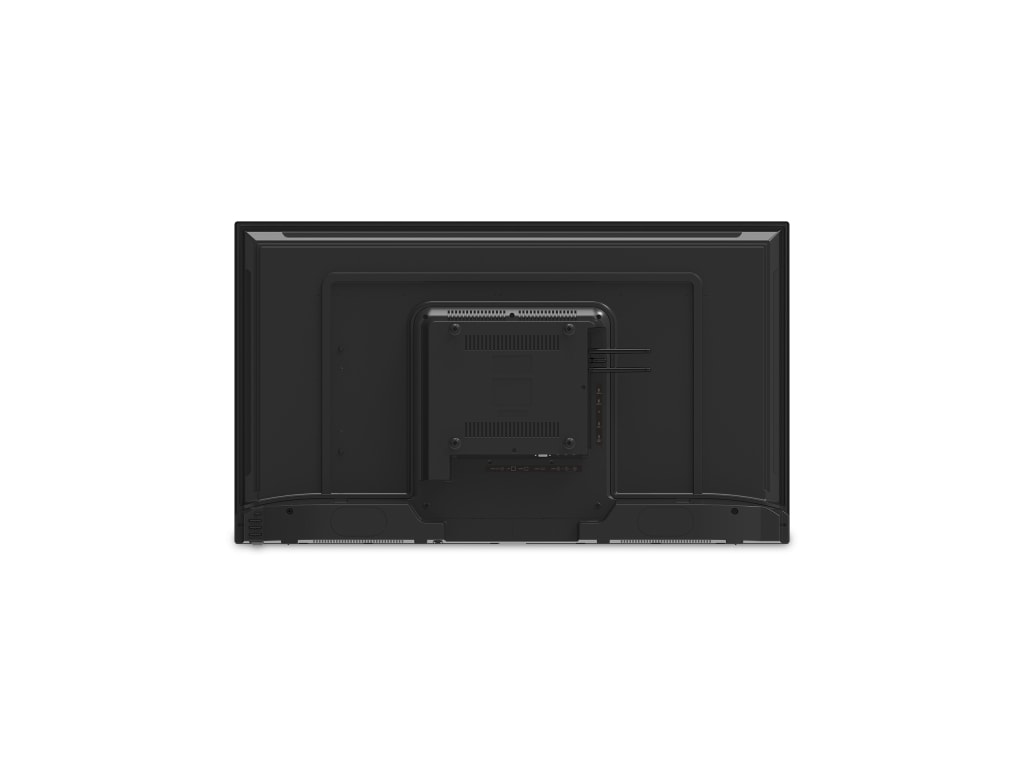

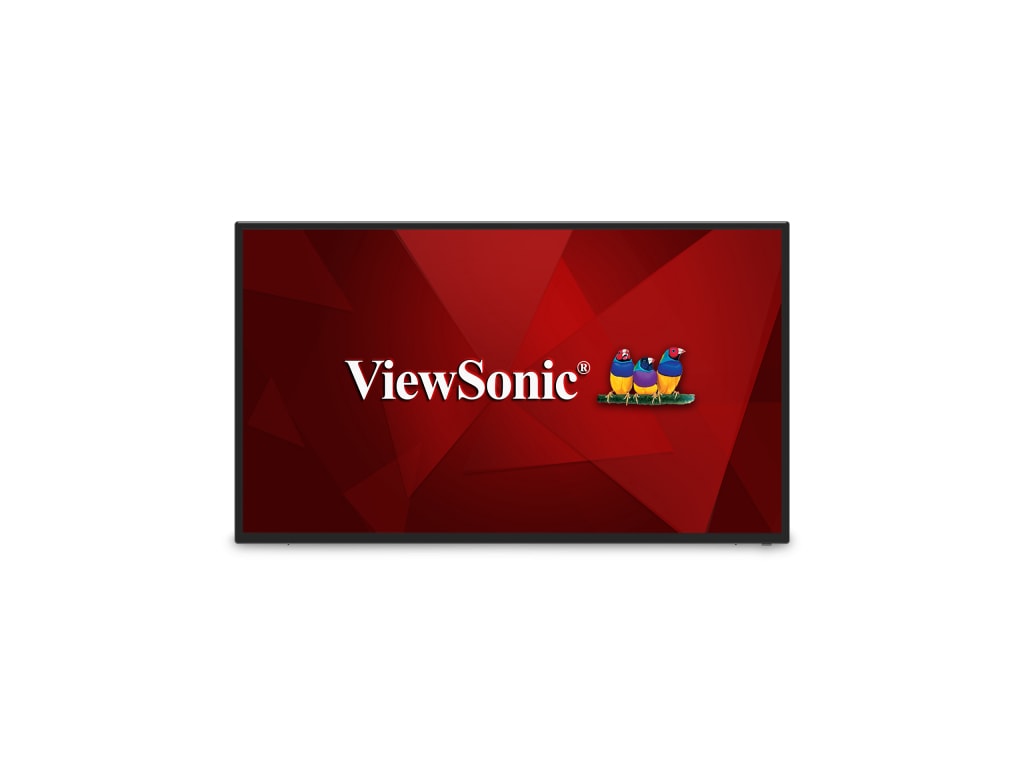

| Model: ViewSonic CDE5512 - 55" Display with WiFi, 4K UHD, 290 nits, 16/7 Operation | |
| Panel Spec | |
| Display Type | TFT-LCD |
| Size | 55" |
| Touch Screen | No |
| Resolution | 3840 x 2160 (4K UHD) |
| Aspect Ratio | 16 : 9 |
| Color Depth | 8 bit |
| Contrast Ratio | 1200 : 1 |
| Backlight | LED |
| Viewing Angle | 178° (H), 178° (V) |
| Interfaces | |
| Ethernet | 1 x RJ-45 Female, 10 / 100 / 1000 BaseT |
| WiFi | Yes |
| USB | 2 x USB Type A, 1 x USB Type B |
| Power Inputs | |
| Power Consumption | 120W (Typical) |
| Environmental | |
| Operating Temperature | 0 - 40°C |
| Storage Temperature | -20 - 60°C |
| Humidity | 20 - 80% RH, Non-Condensing |
| Physical Properties | |
| Housing | Metal |
| Weight | 26.5 kg (58.4 lb) |
| Dimensions (L x W x H) | 1241.6 x 719.1 x 81.1 mm (48.9 x 28.3 x 3.2 in.) |
| Note | - |
What's in the Box:
- Remote control with batteries
- Quick start guide
- Power cable
- Hdmi cable
- Wall mount screws
- RS232 cable
Product Description:
Elevate your presentations with the ViewSonic CDE5512 55" Display Monitor. Experience stunning 4K Ultra HD resolution for vibrant and immersive visuals that captivate your audience.
- Seamless Connectivity: Equipped with embedded LAN and USB wireless connectivity, this display ensures easy content streaming and sharing for efficient collaboration.
- Wireless Screen Sharing: Enjoy the freedom of wireless screen sharing with ViewBoard Cast software, allowing multiple users to participate in real-time content sharing.
- Powerful Performance: With a powerful embedded SOC platform, this display simplifies installation and maintenance, making it an ideal solution for conference rooms and collaborative spaces.
- Immersive Viewing: The 178-degree ultra-wide viewing angles and 290 nits brightness guarantee clear visibility from various vantage points, enhancing the overall viewing experience.
