Planar  |  SKU: Planar CLO7.8

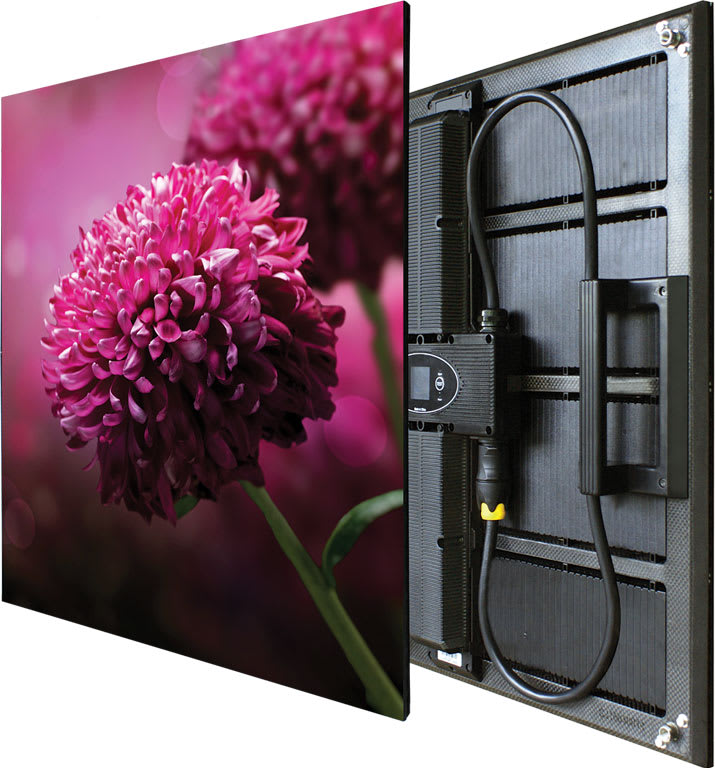

Planar CLO7.8 Outdoor LED Video Wall with 7.8mm Pixel Pitch

Shipping calculated at checkout.

Spec Sheet: View PDF File

Other Resources: View PDF File

Product Specifications
Description Outdoor LED Video Wall
Pixel Pitch 7.8mm
Resolution 64x64
Pixel Density 16,384 / sq m | 1,522 / sq ft
LED Cabinet Size (W x H x D) 500 x 500 x 56mm | 19.69 x 19.69 x 2.20in
Cabinet Diagonal 707mm | 27.8in
Cabinet Area 0.25 sq m | 2.69 sq ft
Modules/Cabinet (W x H) 4 x 4
Module Size 125 x 125mm | 4.92 x 4.92in
Power Consumption, Maximum (watts) 300 / Cabinet | 1200 / sq m | 111 / sq ft
Power Consumption, Typical (watts) 150 / Cabinet | 600 / sq m | 56 / sq ft
Line Voltage 100-240V AC, 50/60Hz
Cabinet Weight (per display) 5kg | 11.0lb
Cabinet Weight (per m²) 20kg | 44.1lb
Brightness Max (cd / sq m) 6000
Contrast Ratio 4000:1
LED Refresh Rate 1920Hz
Color Temperature, Adjustable (k) 6500
Viewing Angle, Horizontal 140°
Viewing Angle, Vertical 140°
Video Inputs DVI, HDMI, HD-SDI (to VSP)
Video Input Resolution Maximum 1920 x 1080 @ 60Hz
Frame Rate 30Hz~70Hz
Control Input Type CAT6 Ethernet
Service Access Rear
Lifetime: Typical 75,000 hrs
Environmental Outdoor
Power Supply Dual (Redundant)
Protection IP65
Grey Scale 14bit
Product Description:

Elevate your outdoor events with the Planar CLO7.8 Outdoor LED Video Wall. Offering a pixel pitch of 7.8mm, this display ensures a high-quality visual experience, making it perfect for rental, staging, and fixed applications. Its IP65 protection rating guarantees durability in any outdoor environment.

Designed for seamless outdoor performance, the Planar CLO7.8 features a signature carbon fiber structure that is both lightweight and robust. With a maximum brightness of 6000 cd/sq m and a contrast ratio of 4000:1, this LED video wall delivers vibrant and sharp visuals. The 1920Hz refresh rate ensures smooth video playback, while the 14-bit grayscale enhances color accuracy for a captivating display.

  • Pixel Pitch: 7.8mm
  • Resolution: 64x64
  • Brightness Max: 6000 cd/sq m
  • Contrast Ratio: 4000:1
  • Refresh Rate: 1920Hz
  • Grey Scale: 14bit
  • Protection: IP65
