Planar  |  SKU: Planar CLO5.2

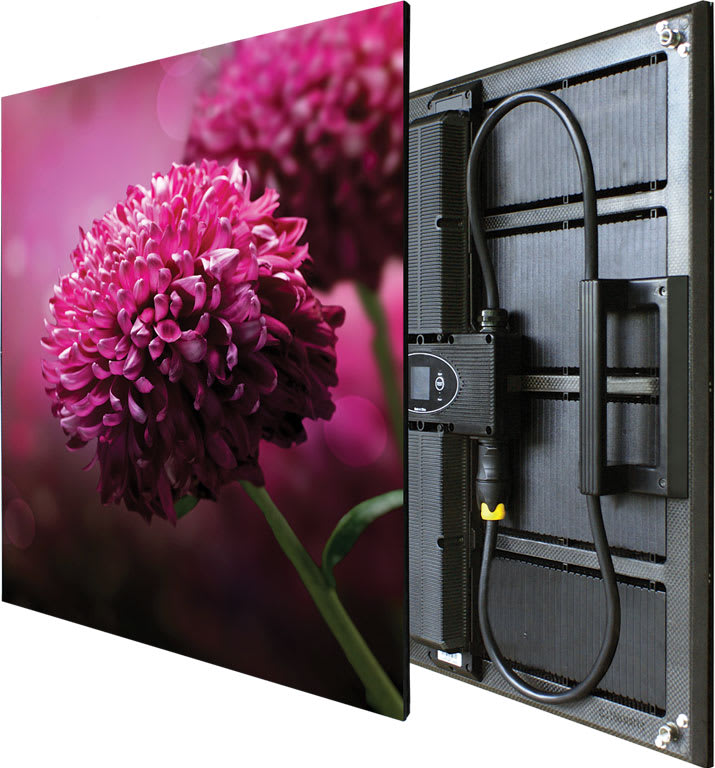

Planar CLO5.2 Outdoor LED Video Wall with 5.2mm Pixel Pitch

Shipping calculated at checkout.

Spec Sheet: View PDF File

Other Resources: View PDF File

Product Specifications
Description Outdoor LED Video Wall
Pixel Pitch 5.2mm
Resolution 96x96
Pixel Density 36,864 / sq m | 3,425 / sq ft
LED Cabinet Size (W x H x D) 500 x 500 x 56mm | 19.69 x 19.69 x 2.20in
Cabinet Diagonal 707mm | 27.8in
Cabinet Area 0.25 sq m | 2.69 sq ft
Modules/Cabinet (W x H) 4 x 4
Module Size 125 x 125mm | 4.92 x 4.92in
Line Voltage 100-240V AC, 50/60Hz
Cabinet Weight (per display) 5kg | 11.0lb
Cabinet Weight (per m²) 20kg | 44.1lb
Brightness Max (cd / sq m) 6000
Contrast Ratio 4000:1
LED Refresh Rate 3000Hz
Color Temperature, Adjustable (k) 6500
Viewing Angle, Horizontal 140°
Viewing Angle, Vertical 140°
Video Inputs DVI, HDMI, HD-SDI (to VSP)
Video Input Resolution Maximum 1920 x 1080 @ 60Hz
Frame Rate 30Hz~70Hz
Control Input Type CAT6 Ethernet
Service Access Rear
Lifetime: Typical 75,000 hrs
Environmental Outdoor
Power Supply Dual (Redundant)
Protection IP65
Acoustic Noise Fanless Operation
Weight Bearing Capacity (per panel) 1000kg | 2204lb
Cabinet Material Carbon Fiber
Grey Scale 14bit
Product Description:

Elevate your outdoor visual experiences with the Planar CLO5.2 Outdoor LED Video Wall. Featuring a 5.2mm pixel pitch, this LED display delivers stunning visuals for various outdoor events and installations.

  • High-quality visuals with 5.2mm pixel pitch
  • Lightweight carbon fiber construction for easy installation
  • IP65 protection rating for reliable outdoor performance
  • Compatible with Leyard CarbonLight bracketry for swift installation

The Planar CLO5.2 is designed to offer a seamless outdoor display solution, ensuring durability and flexibility. Its modular design and dust-tight enclosure with IP65 protection make it suitable for a wide range of outdoor applications.

  • Modular design for versatile outdoor applications
  • Dust-tight enclosure with IP65 protection rating
  • LED refresh rate of 3000Hz for smooth video playback
  • CAT6 Ethernet control input type for easy connectivity
