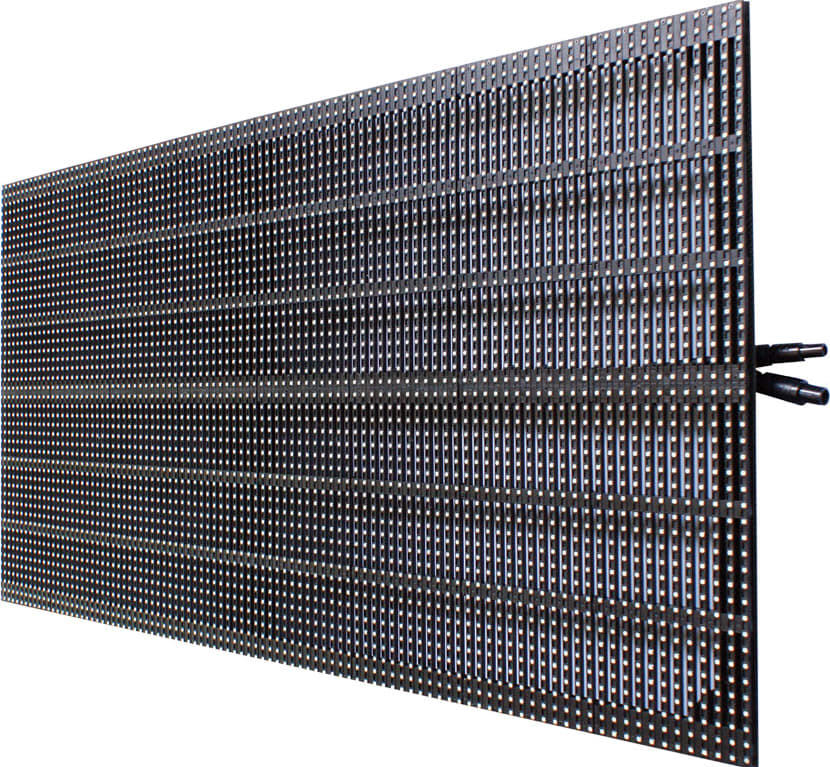

Planar CLM10.4 - 10.4mm Pixel Pitch Mesh LED System
Spec Sheet: View PDF File
Other Resources: View PDF File
Product Specifications
| Description | Leyard CarbonLight - Mesh LED System |
| Pixel Pitch | 10.4mm |
| Resolution | 96x48 |
| Pixel Density | 9,216 / sq m | 856 / sq ft |
| LED Cabinet Size (W x H x D) | 1000 x 500 x 45mm | 39.37 x 19.69 x 1.77in |
| Cabinet Diagonal | 1118mm | 44in |
| Cabinet Area | 0.5 sq m | 5.38 sq ft |
| Modules/Cabinet (W x H) | 1 x 8 |
| Module Size | 500 x 125mm | 19.69 x 4.92in |
| Power Consumption, Maximum (watts) | 300 / Cabinet | 600 / sq m | 56 / sq ft |
| Power Consumption, Typical (watts) | 150 / Cabinet | 300 / sq m | 28 sq ft |
| Line Voltage | 100-240V AC, 50/60Hz |
| Cabinet Weight (per display) | 4.8kg | 10.6lb |
| Cabinet Weight (per m²) | 9.6kg | 21.2lb |
| Brightness Max (cd / sq m) | 5000 |
| Contrast Ratio | 2000:1 |
| LED Refresh Rate | 4000Hz |
| Color Temperature, Adjustable (k) | 6500 |
| Viewing Angle, Horizontal | 140° |
| Viewing Angle, Vertical | 140° |
| Video Inputs | DVI, HDMI, HD-SDI (to VSP) |
| Video Input Resolution Maximum | 1920 x 1080 @ 60Hz |
| Frame Rate | 30Hz~70Hz |
| Control Input Type | CAT6 Ethernet |
| Service Access | Rear |
| Lifetime: Typical | 75,000 hrs |
| Environmental | Indoor, Outdoor |
| Power Supply | Dual (Redundant) |
| Protection | IP65 |
Product Description:
The Planar CLM10.4 Leyard CarbonLight CLM Series Mesh LED System offers a cutting-edge see-through mesh design that ensures high transparency and low wind resistance. This lightweight carbon fiber construction is ideal for both indoor and outdoor applications, providing a visually stunning display in any environment.
Featuring a 10.4mm pixel pitch and IP65 protection rating, this mesh LED system delivers a superior viewing experience with a resolution of 96x48. With a maximum brightness of 5000 cd/sq m and a contrast ratio of 2000:1, the Leyard CarbonLight CLM Series ensures vibrant visuals with sharp clarity. The adjustable color temperature of 6500k and wide viewing angles of 140° horizontally and vertically further enhance the display quality.
- Lightweight carbon fiber construction
- IP65 Protection rating for outdoor applications
- High brightness of 5000 cd/sq m and contrast ratio of 2000:1
- Adjustable color temperature of 6500k
- Wide viewing angles of 140° horizontally and vertically
