Product Specifications

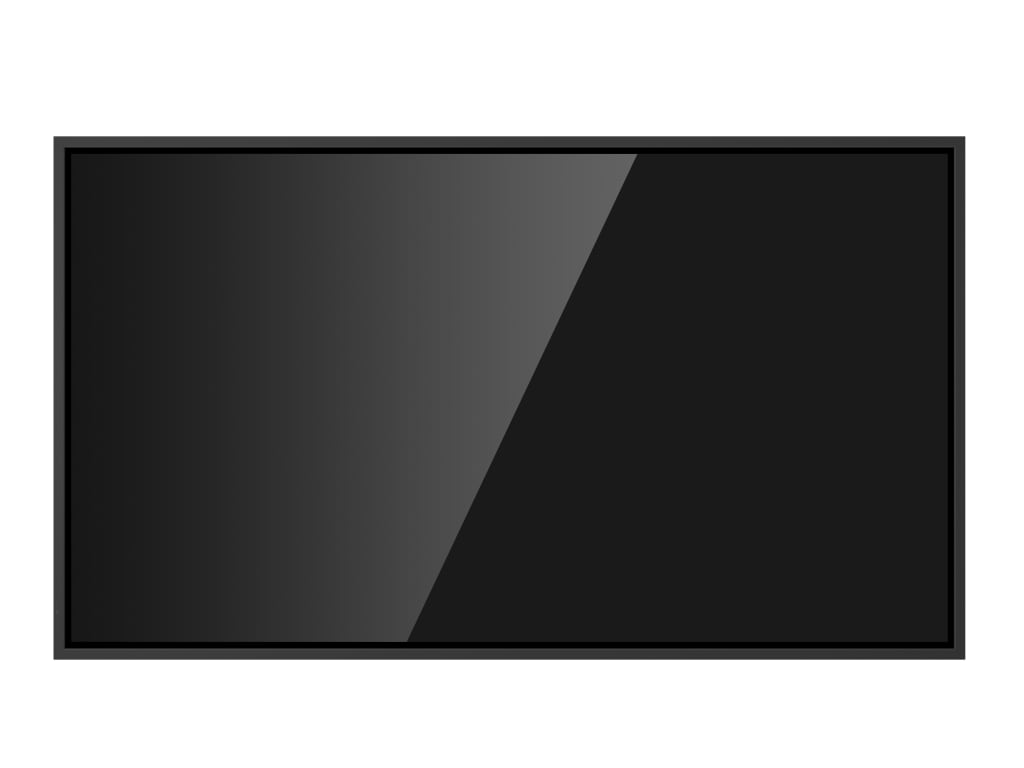

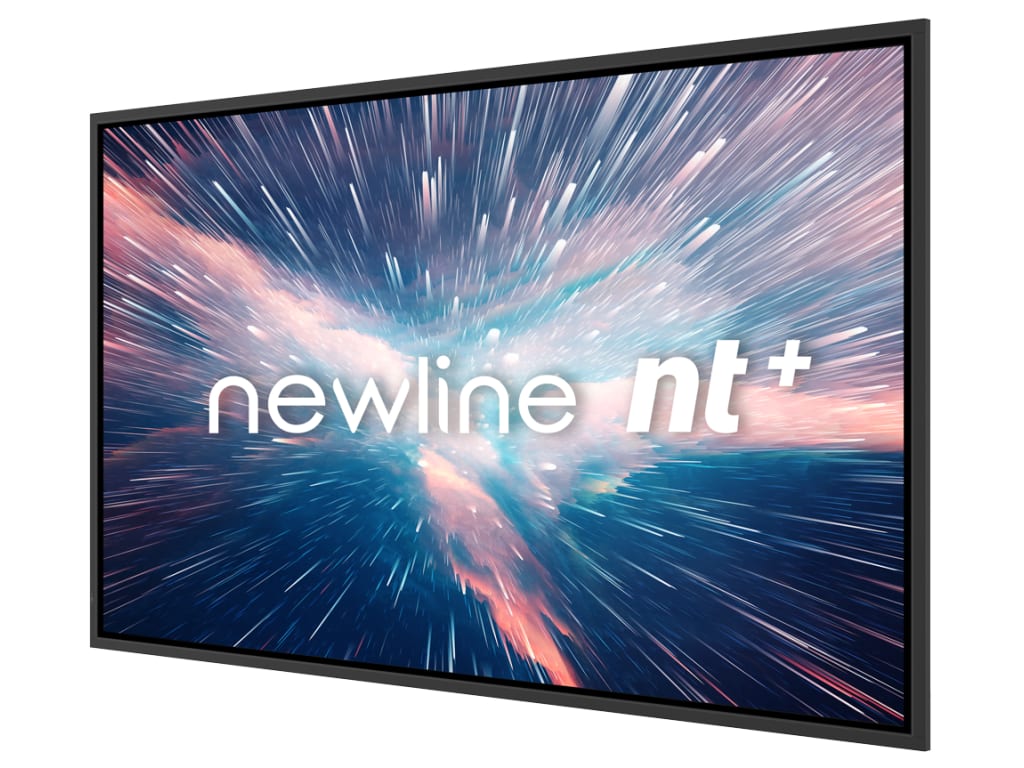

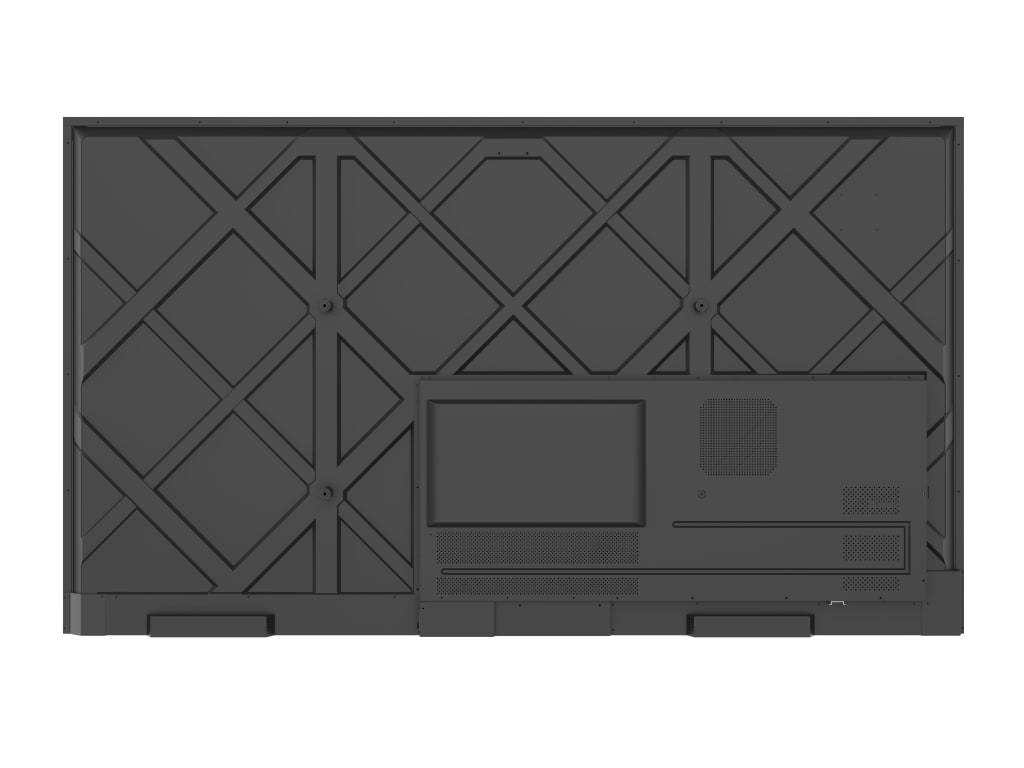

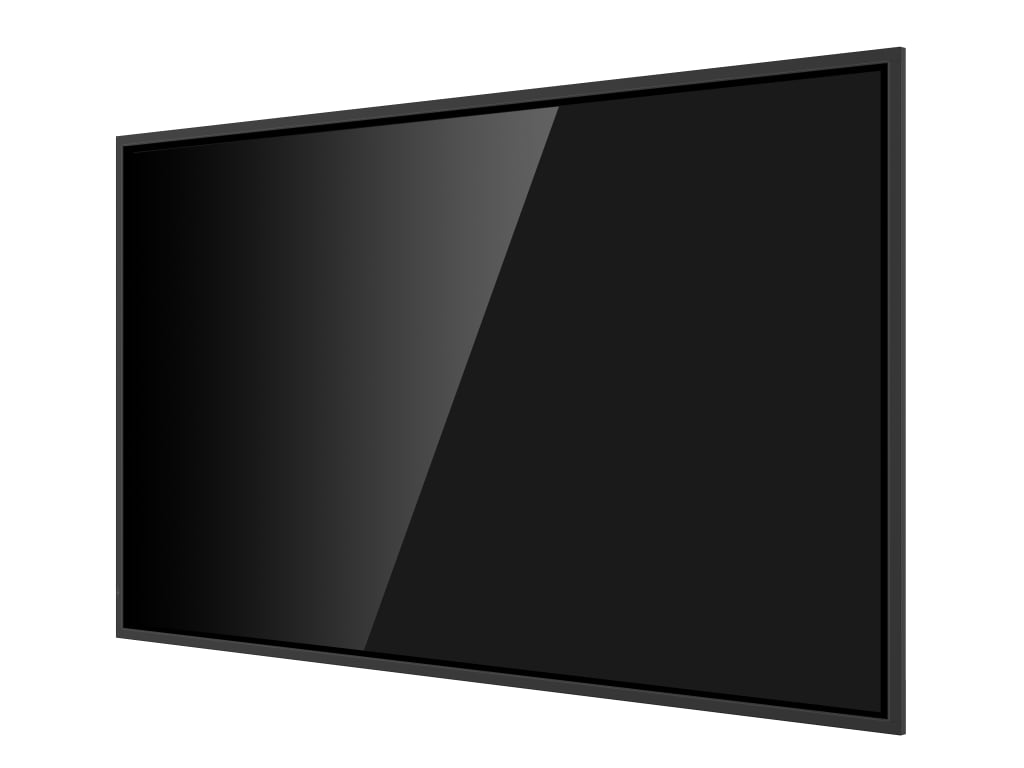

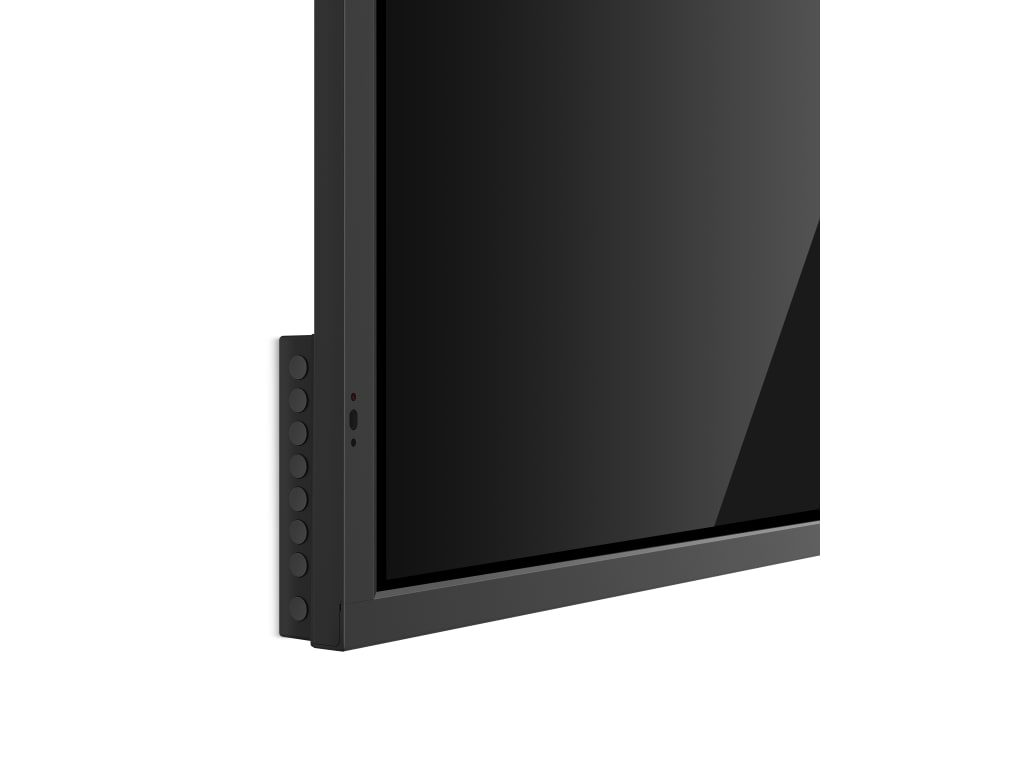

Model: NewLine TT-9822NT-PLUS - 98" 4K UHD Commercial Display | |
Panel Spec | |
Display Type | TFT-LCD |
Size | 98" |
Touch Screen | No |
Resolution | 3840 x 2160 (4K UHD) |
Aspect Ratio | 16 : 9 |
Color Depth | 8 bit |
Contrast Ratio | 5000 : 1 |
Backlight | LED |
Viewing Angle | 178° (H), 178° (V) |
Interfaces | |
Ethernet | 1 x RJ-45 Female, 10 / 100 / 1000 BaseT |
USB | 2 x USB Type A |
HDMI | 4 x HDMI |
DisplayPort | 1 x DisplayPort |
Power Inputs | |
Power Consumption | AC 100 - 240V, 50/60Hz |
Environmental | |
Operating Temperature | 0 - 40°C |
Storage Temperature | -10 - 55°C |
Humidity | 10 - 80% RH, Non-Condensing |
Physical Properties | |
Housing | Metal |
Weight | Approx. 90 kg (198.4 lb) |
Dimensions (L x W x H) | 224.7 x 129.1 x 9.9 cm (88.5 x 50.8 x 3.9 in.) |
Note | N/A |
What's in the Box:
- USB Type-C x 1 (6.5 ft)
- HDMI x 1 (10 ft)
- UL Power Cord x 1 (6.5 ft)
- M8x20 Screws x 4
- Remote Control x 1
- AAA Battery x 2
- VESA Bracket Installation Kit* x 1
Product Description:
Elevate your visual experience with the NewLine TT-9822NT-PLUS 98" 4K UHD commercial display. Enjoy stunning image quality with a brightness of ≤400 nit and immersive audio from two powerful 20W speakers.
- USB Type C for better connectivity
- 4K UHD resolution with 4GB RAM for superior image quality

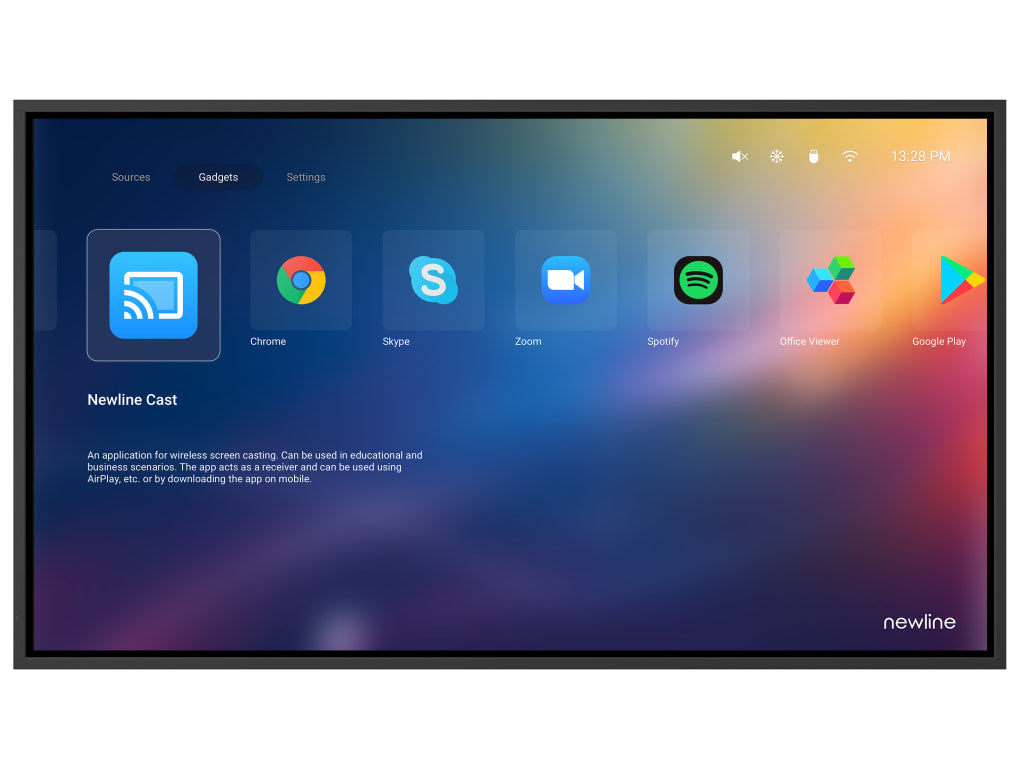

- Remote management for hassle-free control
- Compatible with all devices for seamless integration
- 178° viewing angle for optimal visibility
- Landscape mode only for versatile display options
