Product Specifications
Product Name | MBM Triumph 4850 Automatic Paper Cutter |
Manufacturer | MBM |
SKU | CU0416L |
Dimensions (H”xW”xD”) | 51 x 30 (53 w/ side tables) x 41.5 |
Length Behind Blade (Inches) | 18 |
Narrow Cut (Inches) | 1 |
Cutting Width (inches) | 18.62 |
Sheet Capacity | 600 |
Operation | Automatic |
Type of cutter | Floor Stand Cutter |
Cutting Height (Inches) | 3 |
Blade Drive | Electric |
Paper Clamp | Automatic |
Back Gauge Setting | Calibrated Hand Crank |
Warranty | 1 year |
Country of Origin | Germany |
Power Supply (Volts) | 115v, 60Hz, 20 amp dedicated line req. |
User Type | Large Office |
Optional Accessories | Side Tables |
Applications | Print Shops, Copy Centers |
Cutting Material | Paper |
LED Laser Cut Line | Yes |
Safety Feature | Comprehensive SCS Safety Package |
Product Description:

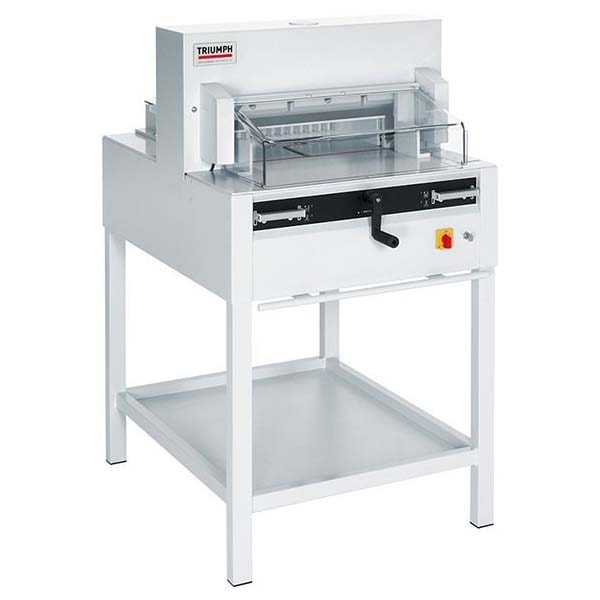

MBM Triumph 4850 Automatic Cutter serves as an effective solution to paper cutting jobs in all kinds of work environments. It features automatic cutting with a great degree of precision and user safety, making it not only efficient with regard to time but also maximizes usability.
4850 paper Cutter can cut through stacks as thick as 3” and with lengths up to 18 5/8”. The automation is owed to the unique Easy Cut electronic blade activation bars that are operated with both hands. By simply pressing them down, users can firmly clamp and cut their stacks at remarkable speeds. 4850 is made for precision cutting, so it has an adjustable back gauge that is used to set the cut’s length. Its exact position is displayed accurately on a digital display that can be interchanged between inches and centimeters. A calibrated crank shaft is used to adjust the back gauge to the required position. Furthermore, a distinct red laser indicates exactly where the blade will fall, making it even easier to place stacks.

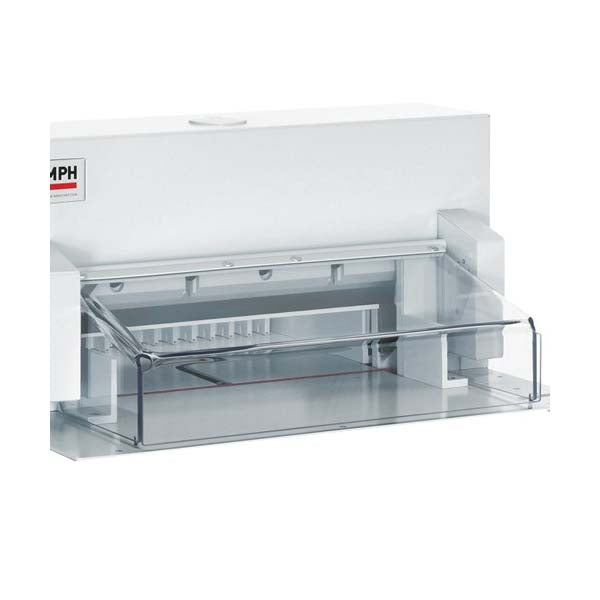

MBM automatic cutter is also known for its safety features. A transparent safety cover is present that does not let the cutting proceed unless it is closed, thus eliminating the chances of accidents. While changing blades, specially designed tools cover the cutting edge so no harm is done.
Martin Yale 4850 is unparalleled in its cutting qualities and ease of use. These highly demanded features are what make it perfect for cutting jobs.
