i3  |  SKU: i3-Technologies i3TOUCH PX86

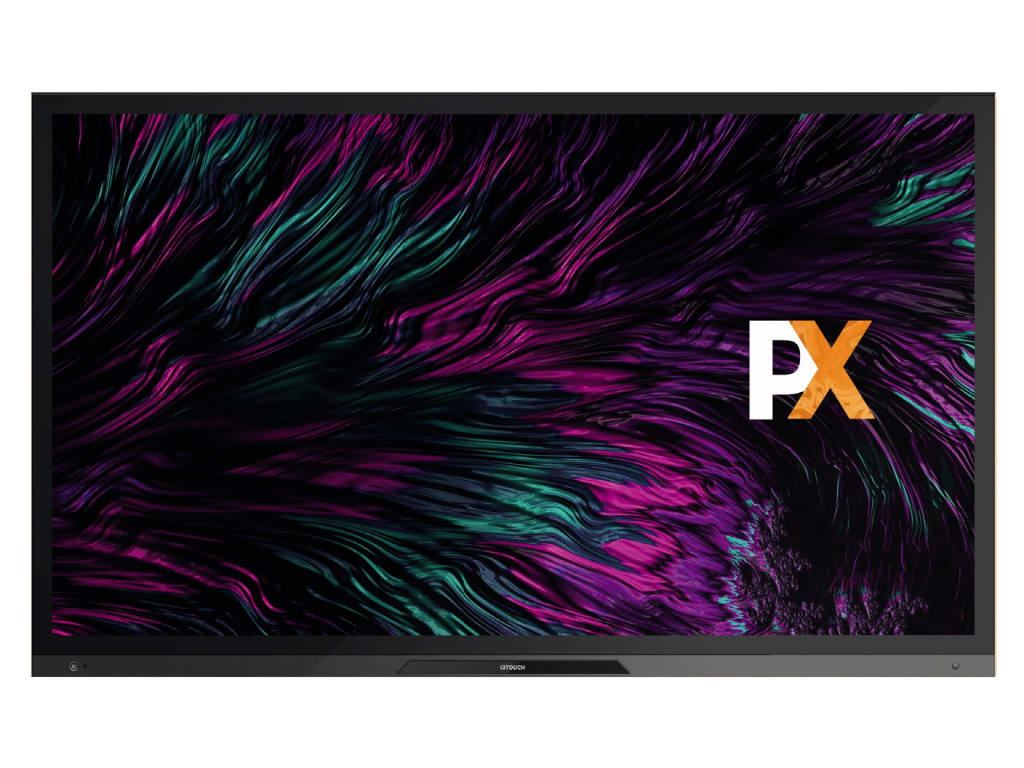

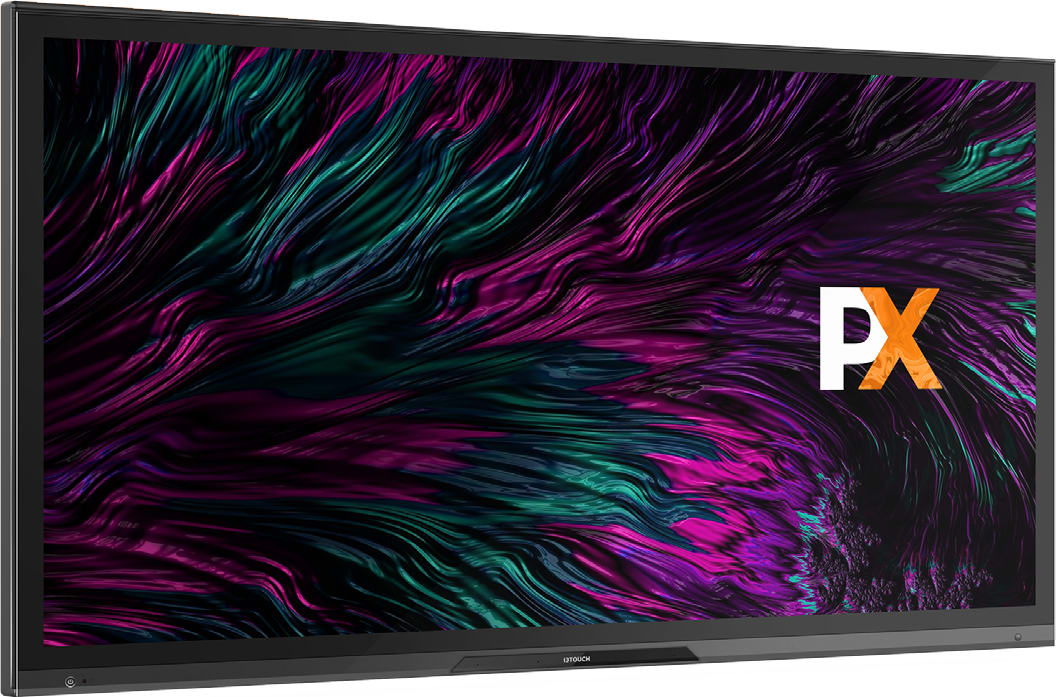

i3-Technologies i3TOUCH PX86 86" Interactive Flat Panel Display

$5,980.26 $7,475.33
Shipping calculated at checkout.

Request Replacement Part and Supplies

Spec Sheet: View PDF File

Product Specifications
Model i3TOUCH PX86 Specifications
Description 86" i3TOUCH PX - Interactive Flat Panel Display
Panel technology In-Plane Switching Liquid Crystal Display (IPS LCD)
Panel active screen size 86 inch
Display aspect ratio 16:9
Display native resolution 3840 x 2160 pixels - 4K Ultra High Definition
Brightness 350 cd/m²
Contrast ratio 4000:1
Color Gamut 85% NTSC
Colour depth 1.073 billion colors (10 bit)
Response time (typ.) 6 ms
Refresh rate 60 Hz (@ UHD)
Supported orientation landscape
Glass 4 mm Anti-Glare Tempered glass, optically bonded (zero airgap)
Life time 50.000h
viewing angle 178° / 178°

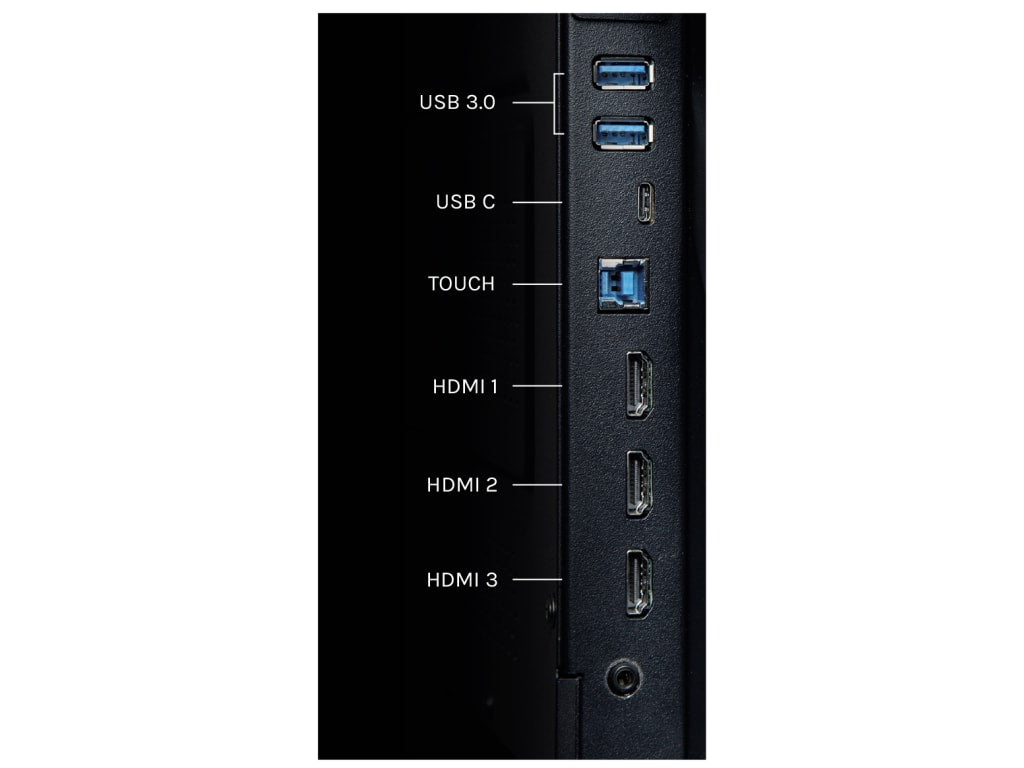

Digital audio-video inputs 3x HDMI 2.0, USB-C x 1
Digital audio-video output 1x HDMI 2.0
Analogue audio-video input 1x audio jack (3.5 mm TRS connector)
Analogue audio output 1x audio jack (3.5 mm TRS connector)
Digital audio output 1x digital coax (RCA connector)
USB data ports USB 2.0 x 2, USB 3.0 x 2
Integrated PC slot OPS-PC slot (JAE TX24 connector)
Control input 1x COM DE-9 (RS-232C standard)
Network LAN: RJ-45 in x1, RJ-45 out x1, Wi-Fi: 2.4 / 5 GHz (IEEE 802.11 a/b/g/n/ac)
Integrated loudspeakers 2x 15 Watt
Charge station for stylus Integrated
Operating System Android™ 8.0
Architecture CPU: A73 x 2 + A53 x 2, GPU: MaliG51 x 4, RAM: 3GB, ROM: 32GB
Interactive touch Projected Capacitive Touch recognition, Input Detection: 20 touch inputs | Multiple writing: max. 5, Touch Connection: 1x USB-B 3.0, Recognition: Finger (size ≥ 10 mm) or capacitive stylus (3.0 ± 0.1 mm), Response time: < 10 ms, Accuracy: ± 1 mm
Active stylus Microsoft Ink / Windows Ink compatible
Supported Compatibility Windows, Android, MacOS X, Linux, Chrome OS
Maximum operating hours 18 hours / day
Ambient light sensor Stand by
Product Type Approval CE, FCC
What's in the Box:
  • Power cord (2m) x 1
  • Active stylus x 1
  • Remote control x 1
  • AAA battery (for remote control)
  • Wall mount
Product Description:

Elevate your presentations with the i3-Technologies i3TOUCH PX86 86" Interactive Flat Panel Display. Enjoy crystal-clear 4K Ultra High Definition resolution for stunning visuals. With 20 touch inputs and support for multiple writing, interaction becomes seamless and intuitive.


Connect effortlessly with HDMI, VGA, RS232, and USB ports. The anti-glare tempered glass ensures clear visibility from any angle, while integrated speakers deliver immersive sound. Experience the convenience of wireless connectivity and over-the-air updates for a hassle-free user experience.


  • In-Plane Switching Liquid Crystal Display (IPS LCD)
  • 4mm Anti-Glare Tempered glass with zero airgap
  • Android™ 8.0 Operating System with 3GB RAM and 32GB ROM
  • 20 touch inputs with Finger or capacitive stylus recognition
  • Integrated 15W loudspeakers for room-filling sound
  • Supports Windows, Android, MacOS X, Linux, Chrome OS

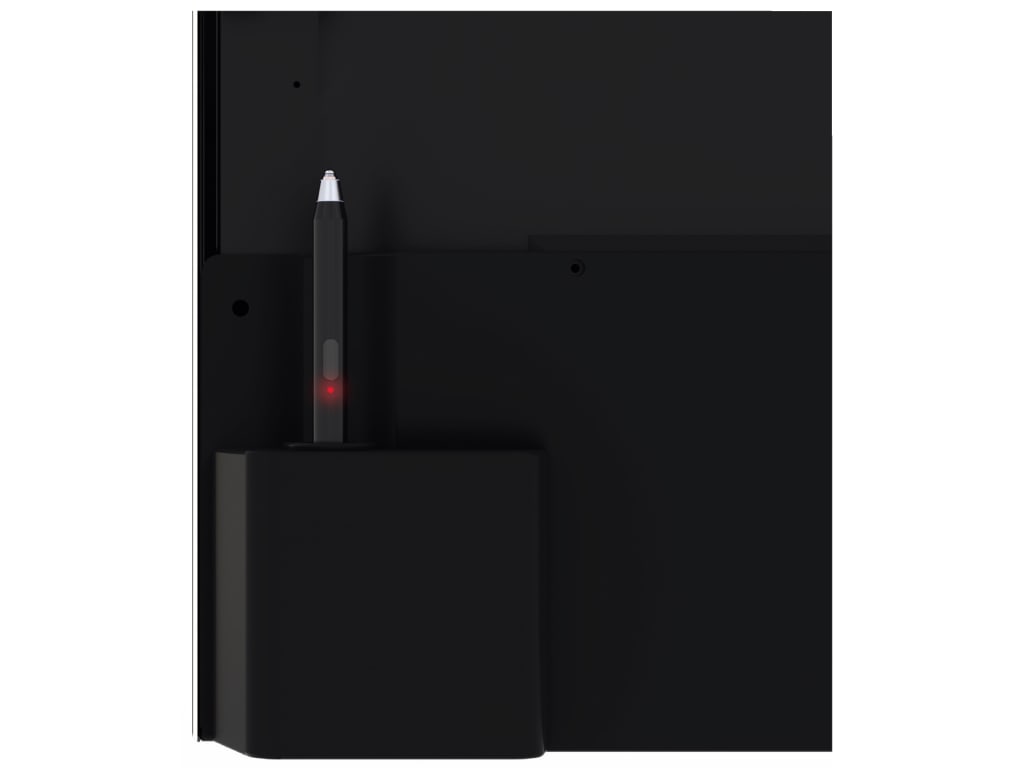

  • Integrated charge station for stylus
  • Wi-Fi: 2.4 / 5 GHz (IEEE 802.11 a/b/g/n/ac)

Video of i3-Technologies i3TOUCH PX86 86" Interactive Flat Panel Display
