Formax Wire300 Electric Wire Binding Machine
Formax Wire300 Electric Wire Binding Machine is backordered and will ship as soon as it is back in stock.
♻️ Orders above $1,000 support our global reforestation initiative. Learn about our sustainability commitment →
Couldn't load pickup availability
Formax Wire300 Electric Wire Binding Machine
Spec Sheet: View PDF File
Product Specifications
| Product Name | Formax Wire300 Electric Wire Binding Machine |
| Manufacturer | Formax |
| SKU | Wire300 |
| Pitch | 2:1, 3:1, 4:1 |
| Binding Thickness | 0.03 inch - 1.3 inches (1 - 34mm) |
| Min. Binding Width | 0.39 inch (10mm) |
| Max. Binding Width | 19.6 inches (500mm) |
| Min. Unbound Edge | 2.5 inches (65mm) |
| Max. Unbound Edge | 23.6 inches (600mm) |
| Binding Operation | Electric, foot pedal |
| Binding Speed | Up to 400 booklets/hr |
| Binding Capacity | Up to 340 sheets |
| Wire Binding Diameter | 1/4 inch - 1 1/2 inches |
| Dimensions | 25 x 21 x 9.25 inches (635 x 533 x 235mm) |
| Weight | 101 lbs (46kg) |
| Power | 115V, 60Hz, 250W |
| Optional Accessories | ReadyWire Double-Loop Wire Binding |
Product Description:

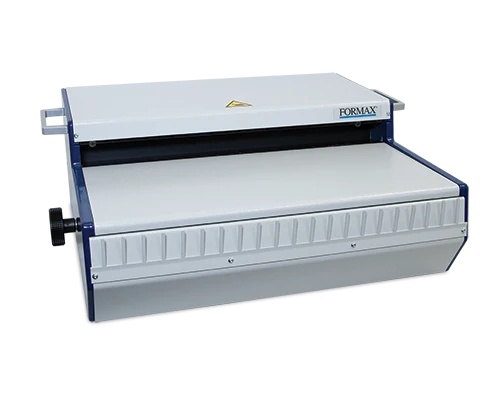

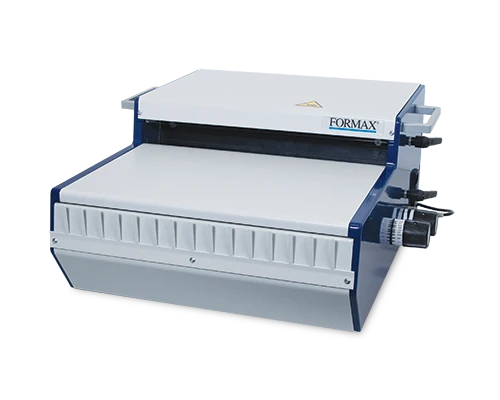

The Formax Wire300 Electric Wire Binding Machine offers all the features of the Wire200 with the capacity to bind documents up to 19.6 inches wide. Its electric foot pedal operation binds up to 400 books per hour, handling booklets up to 340 sheets with wire diameters from 1/4 inch to 1 1/2 inches. It is compatible with 2:1, 3:1, and 4:1 pitch wire.
Key Features:
- Binding width up to 19.6 inches for wider documents.

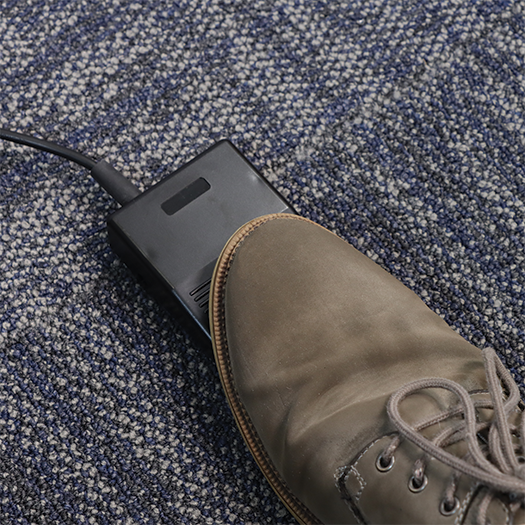

- Binds up to 400 books per hour with electric foot pedal operation.
- 340-sheet binding capacity with wire diameters from 1/4 inch to 1 1/2 inches.
- Works with 2:1, 3:1, and 4:1 pitch wire.

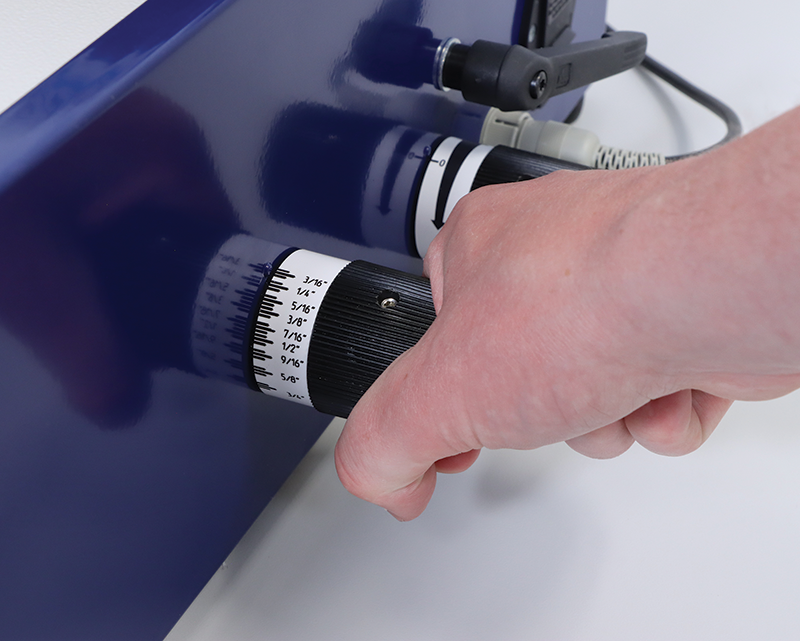

- Wire diameter adjustment hand wheel for fast, accurate setup.

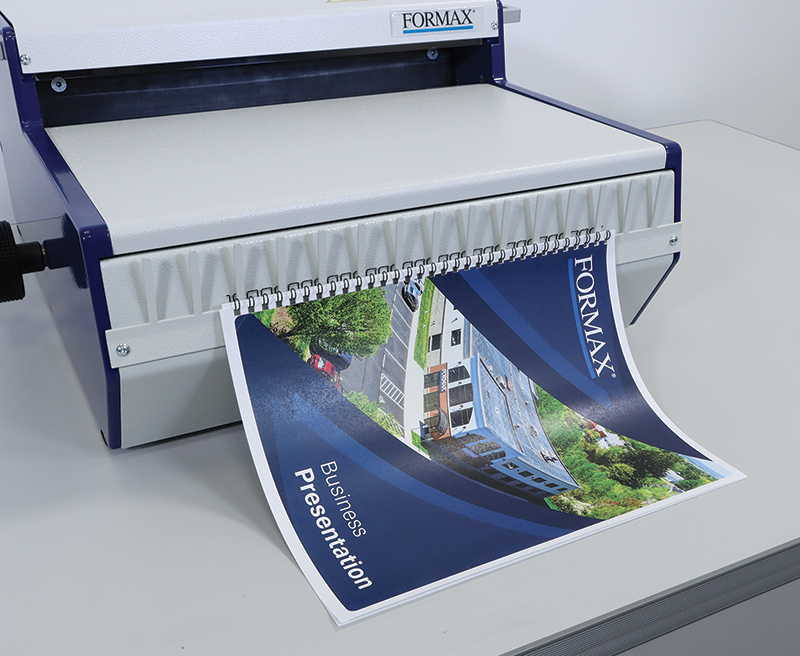

- Integrated easy-loading wire holder simplifies paper loading.
- Parallel adjustment knob ensures a precise bind from first document to last.

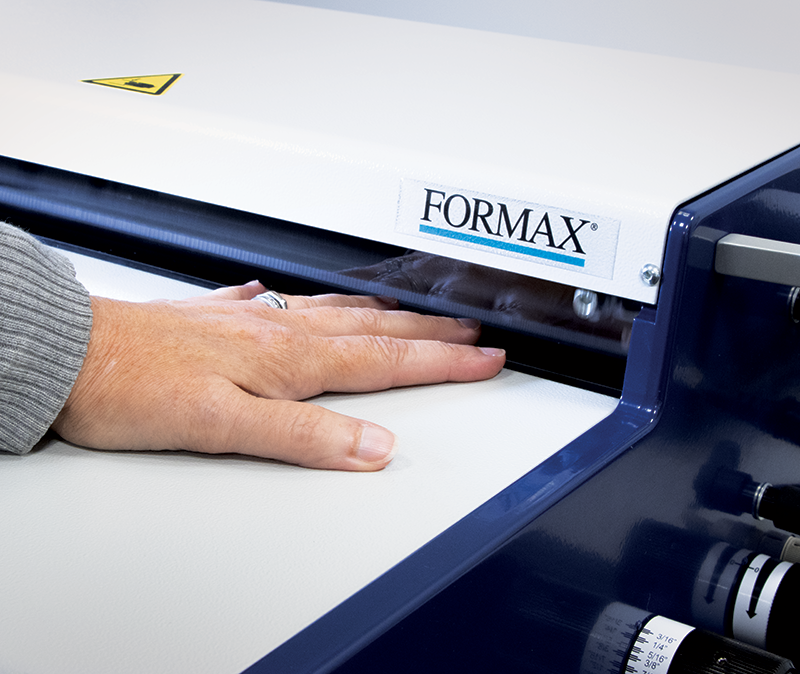

- Automatic safety shut-off sensor stops the machine and cuts power.

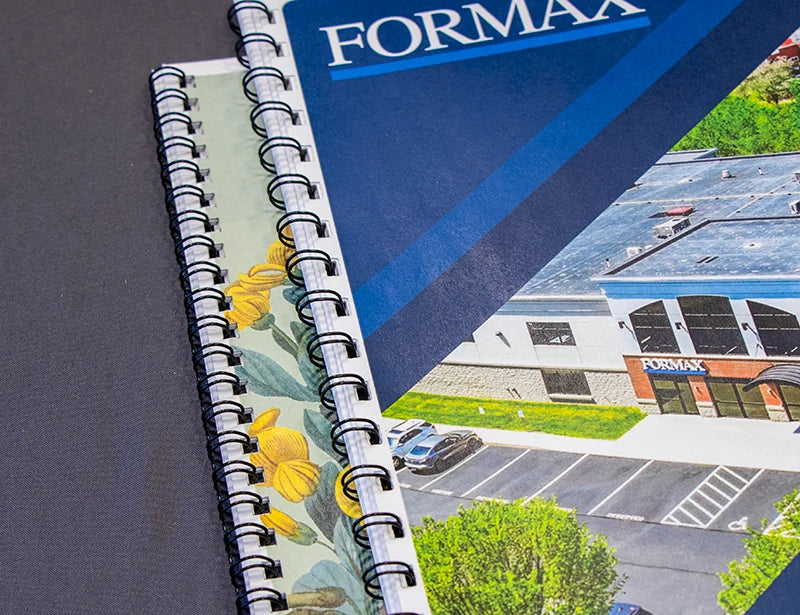

The Wire300’s heavy-duty all-metal design supports frequent use in print shops and production environments. For teams that bind wider booklets on a regular basis, it provides consistent, professional wire-bound results that open a full 360 degrees and lay flat.
