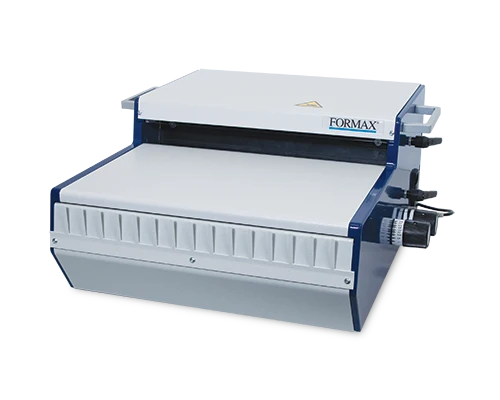

Formax Wire200 Electric Wire Binding Machine
Formax Wire200 Electric Wire Binding Machine is backordered and will ship as soon as it is back in stock.
♻️ Orders above $1,000 support our global reforestation initiative. Learn about our sustainability commitment →
Couldn't load pickup availability
Formax Wire200 Electric Wire Binding Machine
Spec Sheet: View PDF File
Product Specifications
| Product Name | Formax Wire200 Electric Wire Binding Machine |
| Manufacturer | Formax |
| SKU | Wire200 |
| Pitch | 2:1, 3:1, 4:1 |
| Binding Thickness | 0.03 inch - 1.3 inches (1 - 34mm) |
| Min. Binding Width | 0.39 inch (10mm) |
| Max. Binding Width | 14 inches (360mm) |
| Min. Unbound Edge | 2.5 inches (65mm) |
| Max. Unbound Edge | 23.6 inches (600mm) |

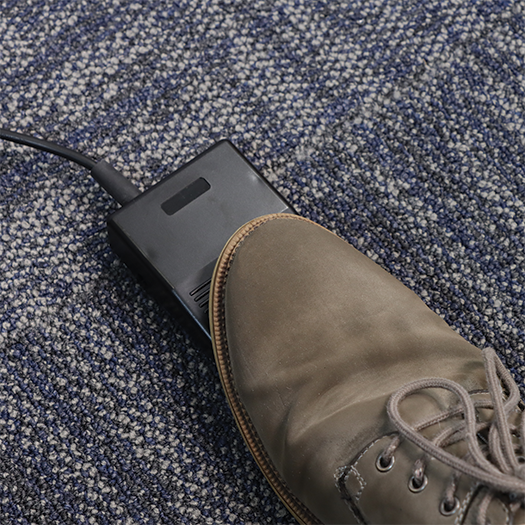

| Binding Operation | Electric, foot pedal |
| Binding Speed | Up to 400 booklets/hr |
| Binding Capacity | Up to 340 sheets |
| Wire Binding Diameter | 1/4 inch - 1 1/2 inches |
| Dimensions | 21 x 21 x 9.25 inches (533 x 533 x 235mm) |
| Weight | 84 lbs (38kg) |
| Power | 115V, 60Hz, 250W |

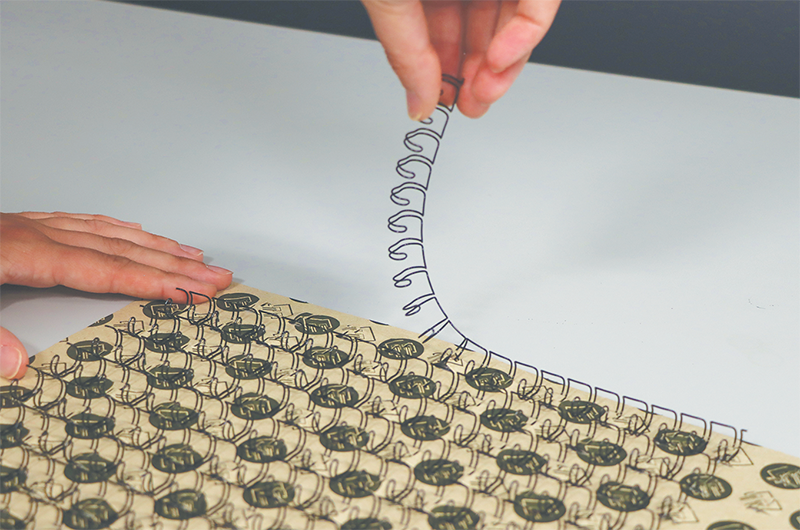

| Optional Accessories | ReadyWire Double-Loop Wire Binding |
Product Description:
The Formax Wire200 Electric Wire Binding Machine provides fast, consistent double-loop wire binding with electric foot pedal operation. It binds up to 400 books per hour and handles booklets up to 340 sheets with wire diameters from 1/4 inch to 1 1/2 inches. Compatible with 2:1, 3:1, and 4:1 pitch wire, it binds documents up to 14 inches wide.
Key Features:
- Binds up to 400 books per hour with electric foot pedal operation.
- 340-sheet binding capacity with wire diameters from 1/4 inch to 1 1/2 inches.
- Works with 2:1, 3:1, and 4:1 pitch wire.
- Binding width up to 14 inches.

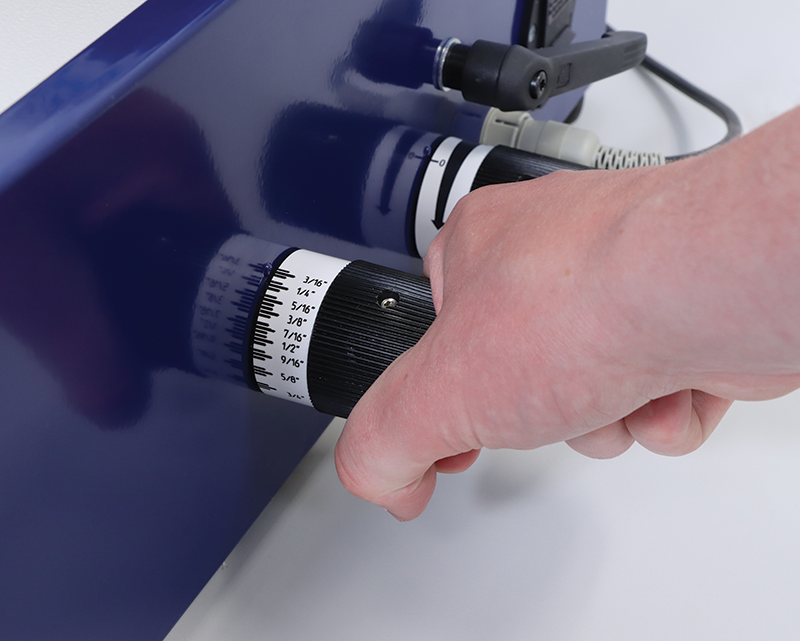

- Wire diameter adjustment hand wheel for fast, accurate setup.

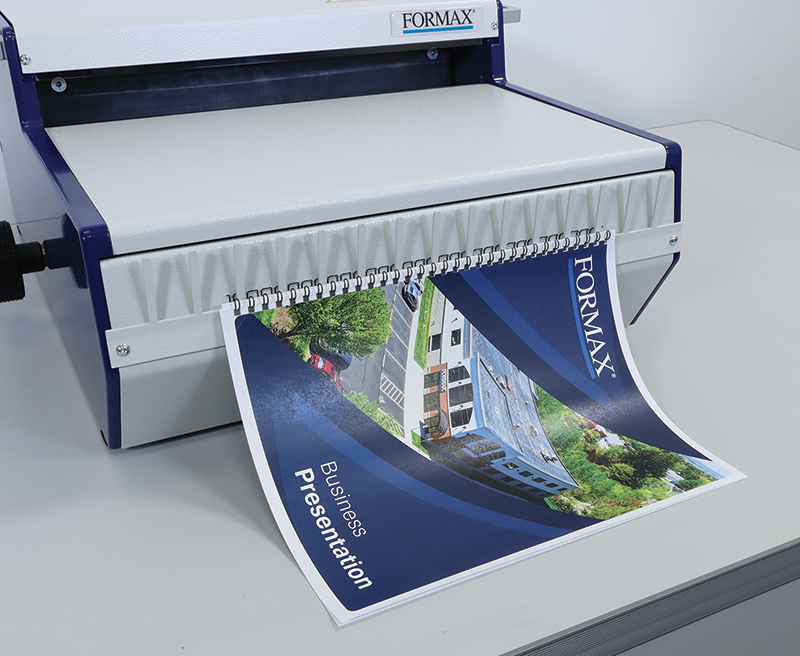

- Integrated easy-loading wire holder simplifies paper loading.
- Parallel adjustment knob ensures a precise bind from first document to last.

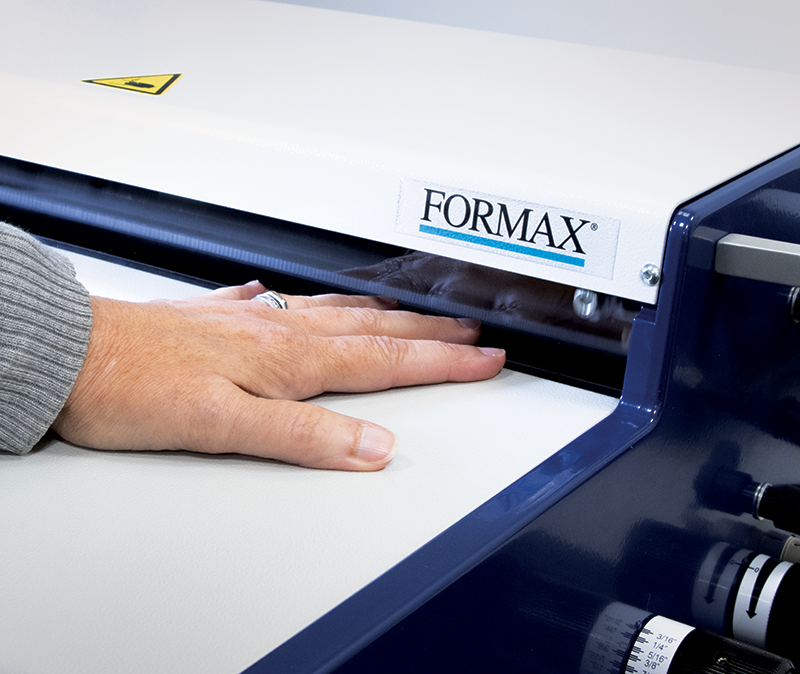

- Automatic safety shut-off sensor stops the machine and cuts power.

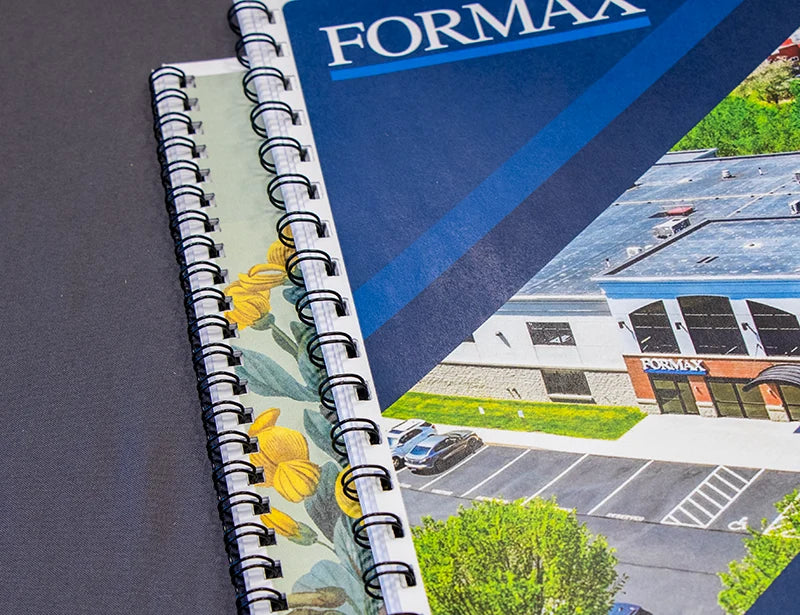

The Wire200’s heavy-duty all-metal design supports frequent use in offices, schools, and print shops. Paired with a compatible punch, it provides an efficient workflow for producing wire-bound documents that open a full 360 degrees and lay flat.
