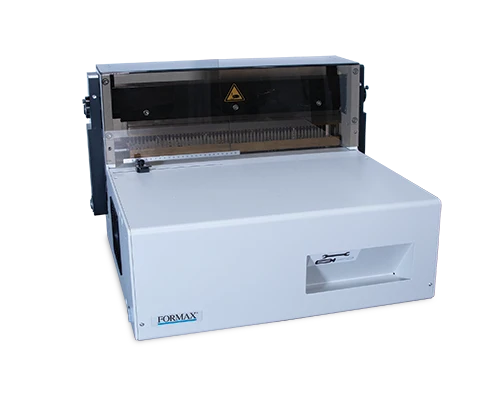

Formax Punch200 Heavy-Duty Electric Punching Machine
Spec Sheet: View PDF File
Product Specifications
| Product Name | Formax Punch200 Heavy-Duty Electric Punching Machine |
| Manufacturer | Formax |
| SKU | Punch200 |
| Mechanical Cycles | Up to 3,000/hr |
| Min. Punching Width | 2.4 inches (60mm) with foot pedal 4.1 inches (105mm) with micro switch |
| Max. Punching Width | Up to 19.7 inches (500mm) |
| Min. Unpunched Length | 2.75 inches (70mm) with foot pedal 4.3 inches (110mm) with micro switch |
| Max. Unpunched Length | Up to 31.5 inches (800mm) |
| Max. Punching Thickness | Up to 0.15 inch (4mm) |
| Punching Operation | Micro switch sensor or foot pedal |
| Punch Dies Available | 3:1, 2:1 ReadyWire, plastic comb, spiral coil |
| Disengageable Punch Pins | Yes |
| Variable Margin Depth | No |
| Dimensions | 26.4 x 17.7 x 15.7 inches (670 x 450 x 400mm) |
| Weight | 247 lbs (112kg) |
| Power | 208V, 3 Phase, 20A, 50/60Hz |
| Optional Accessories | Wire200 Electric Wire Binding Machine Wire300 Electric Wire Binding Machine Punch200-10 Die: 3:1, 4 x 4mm standard Punch200-11 Die: 3:1, 4.5mm round Punch200-12 Die: 2:1, 5.5 x 3.5mm rectangle Punch200-13 Die: 2:1, 6 x 6mm standard Punch200-14 Die: 2:1, 6.5mm round Punch200-15 Die: 0.25 inch pitch, 5 x 4mm oval, spiral binding Punch200-16 Die: 8 x 3mm standard, comb binding |
Product Description:
The Formax Punch200 Heavy-Duty Electric Punching Machine provides production-level punching for print shops and high-volume binding environments. It runs up to 3,000 mechanical cycles per hour, punches sheet stacks up to 0.15 inch (4mm) thick, and handles punching widths up to 19.7 inches with horizontal paper feeding. Operators can choose between foot pedal and micro switch sensor activation.
Key Features:

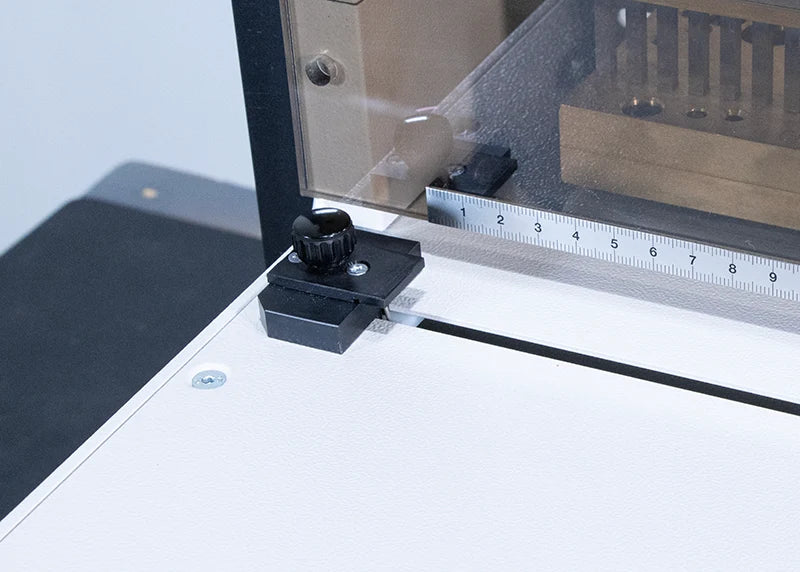

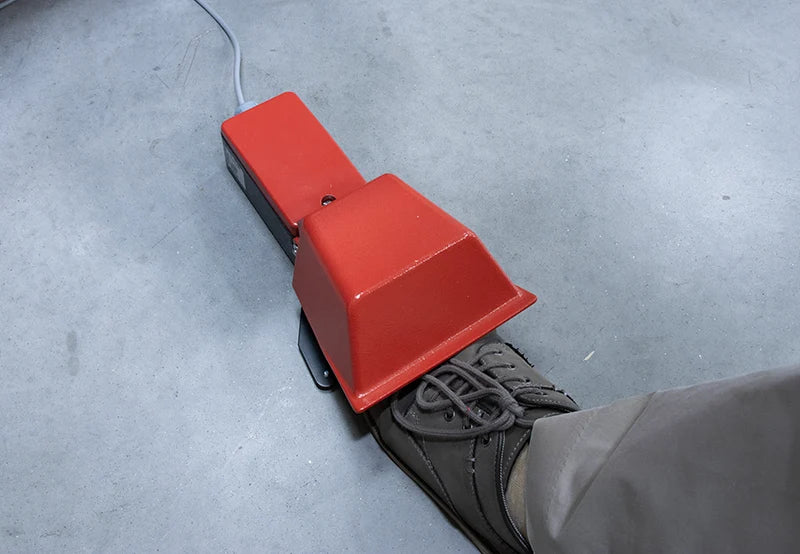

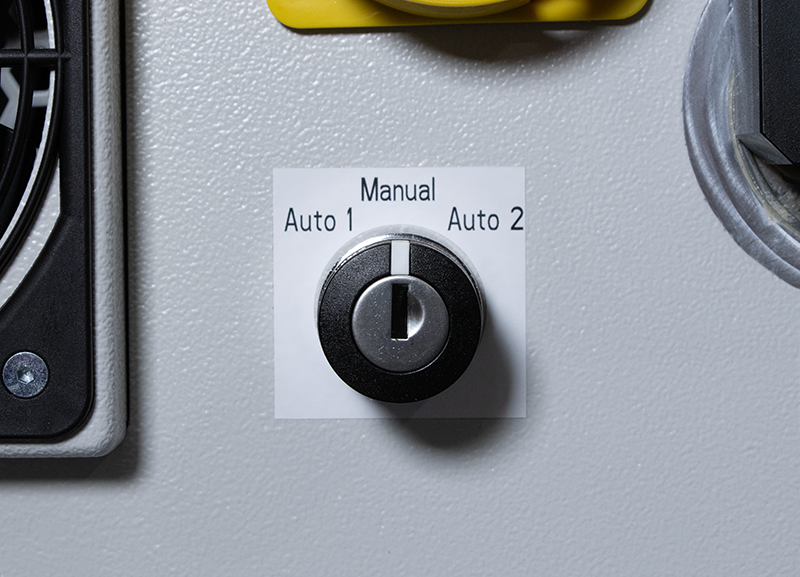

- Foot pedal or micro switch sensor activation with a mode select switch.
- Punches sheet stacks up to 0.15 inch (4mm) thick.
- Punching width up to 19.7 inches with horizontal paper feeding.
- Interchangeable dies for ReadyWire, plastic comb, and spiral coil.

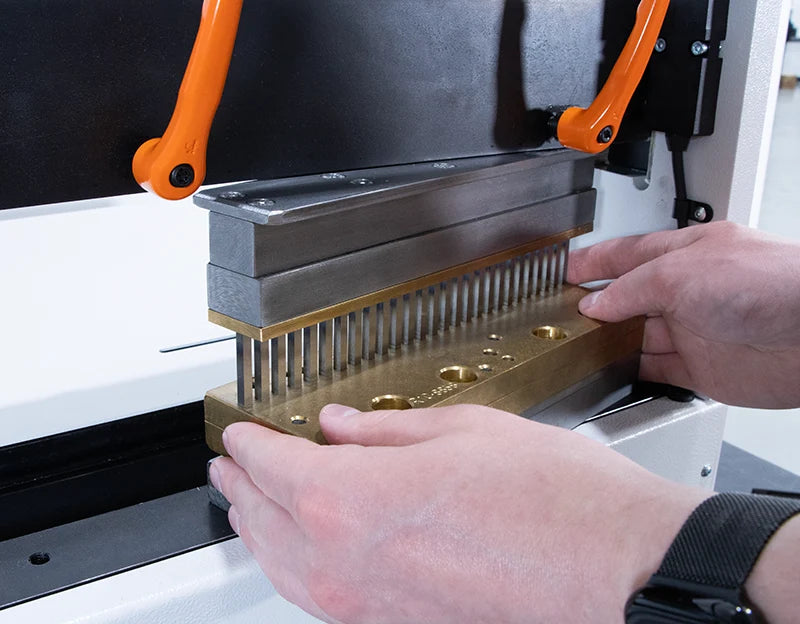

- Die changes take under 3 minutes.

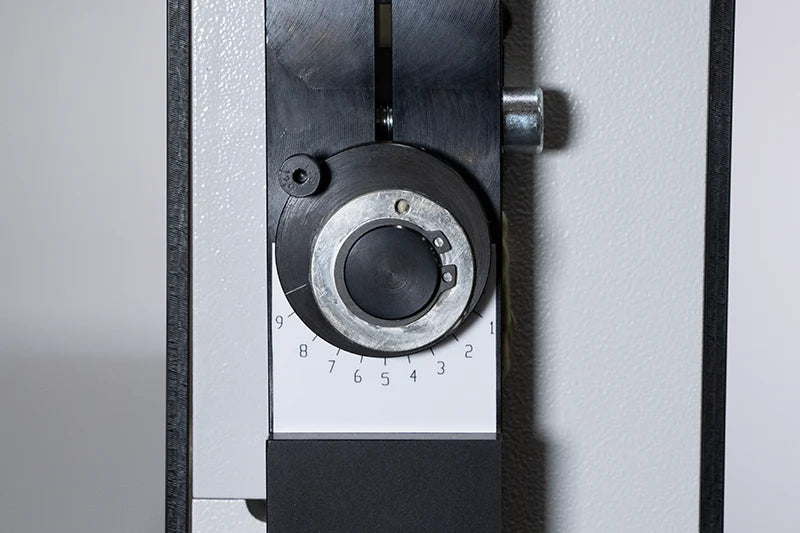

- Eccentric shaft adjustment accommodates resharpened dies.
- Heavy-duty disengageable punch pins for various paper sizes.
- Plexiglas cover helps ensure operator safety.
The Punch200’s heavy-duty all-metal construction is built for production environments. Paired with the Formax Wire200 or Wire300, it provides an efficient punching and binding workflow for high-volume projects.
