Formax Punch100A Semi-Automatic Electric Punching Machine
Formax Punch100A Semi-Automatic Electric Punching Machine is backordered and will ship as soon as it is back in stock.
♻️ Orders above $1,000 support our global reforestation initiative. Learn about our sustainability commitment →
Couldn't load pickup availability
Formax Punch100A Semi-Automatic Electric Punching Machine
Spec Sheet: View PDF File
Product Specifications
| Product Name | Formax Punch100A Semi-Automatic Electric Punching Machine |
| Manufacturer | Formax |
| SKU | Punch100A |
| Mechanical Cycles | Up to 1,200/hr |
| Max. Punched Sheets | Up to 36,000/hr |
| Punching Width | 0.39 inch - 13.4 inches (10 - 340mm) |
| Unpunched Length | 4.3 inches - 31.5 inches (110 - 800mm) |
| Max. Punching Thickness | Up to 0.13 inch (3.5mm) |
| Punching Operation | Automatic sensor or foot pedal |
| Punch Dies Available | 3:1, 2:1 double-loop wire, plastic comb, spiral coil |
| Disengageable Punch Pins | Yes |
| Variable Margin Depth | Yes |
| Dimensions | 34.6 x 25 x 15 inches (880 x 640 x 380mm) |
| Weight | 116 lbs (53kg) |
| Power | 115V, 60Hz, 300W |
| Optional Accessories | Punch100-10 Die: 3:1, 4 x 4mm Punch100-11 Die: 3:1, 4 x 4mm Punch100-12 Die: 3:1, 4 x 4mm, thumb cut Punch100-13 Die: 3:1, 4mm round Punch100-14 Die: 3:1, 4mm round, thumb cut Punch100-15 Die: 2:1, 5.5 x 3.5mm Punch100-16 Die: 2:1, 6 x 6mm Punch100-17 Die: 2:1, 6mm round Punch100-18 Die: 8 x 3mm, plastic comb Punch100-19 Die: 0.25 inch, 5 x 4mm, spiral coil |
Product Description:

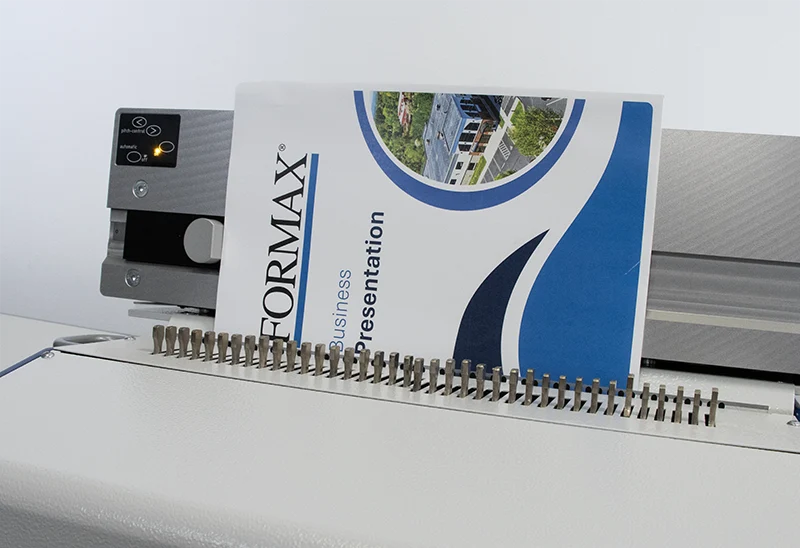

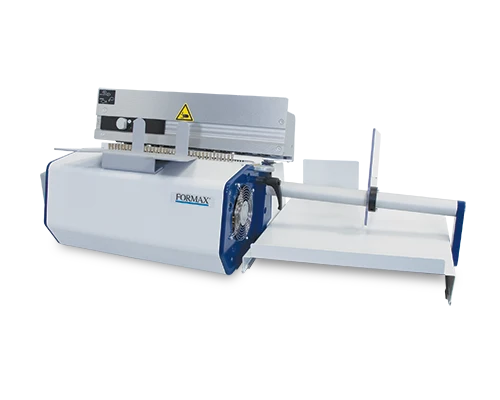

The Formax Punch100A Semi-Automatic Electric Punching Machine is a heavy-duty tabletop punch for a wide range of binding applications. An auto sensor in the adjustable paper stop engages the punch as soon as paper is inserted, then ejects punched sheets onto an adjustable catch tray, with foot pedal activation also available. It runs up to 1,200 mechanical cycles per hour and punches up to 36,000 sheets per hour.
Key Features:
- Automatic sensor or foot pedal activation.

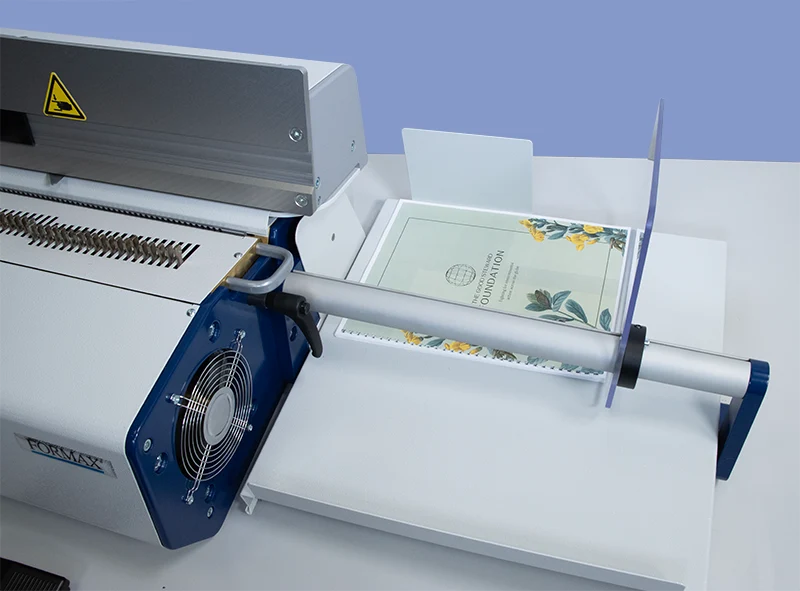

- Punched sheets eject automatically onto an adjustable catch tray.
- Punches up to 36,000 sheets per hour.

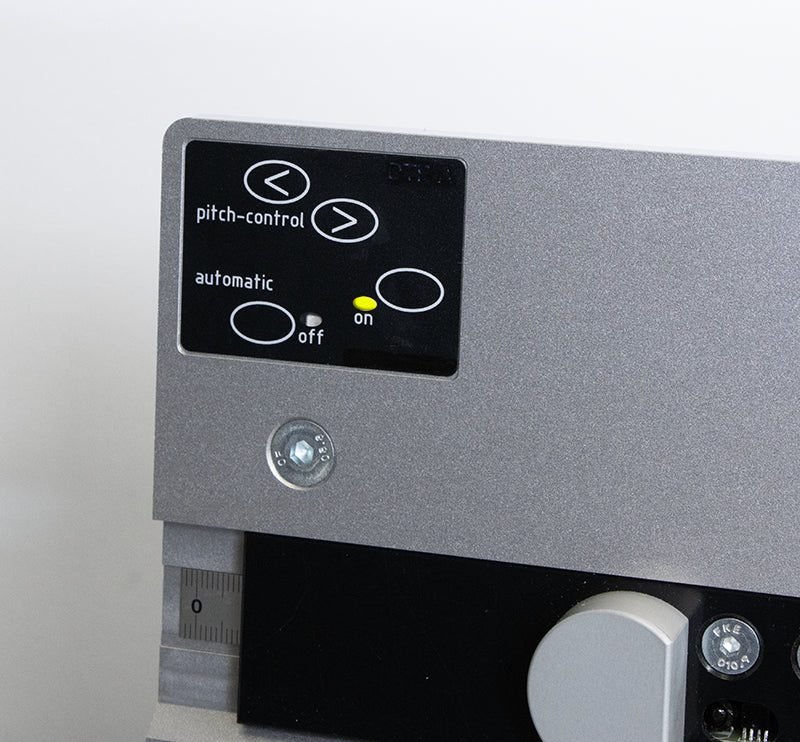

- Control panel with LED indicators for paper format, pitch, and sensor status.

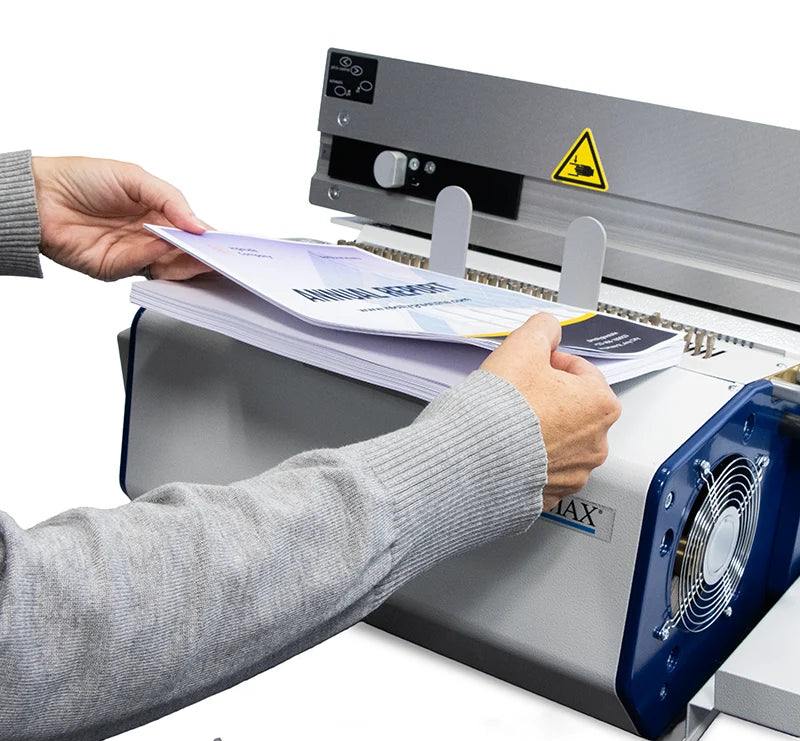

- Document shelf keeps pages in order before punching.

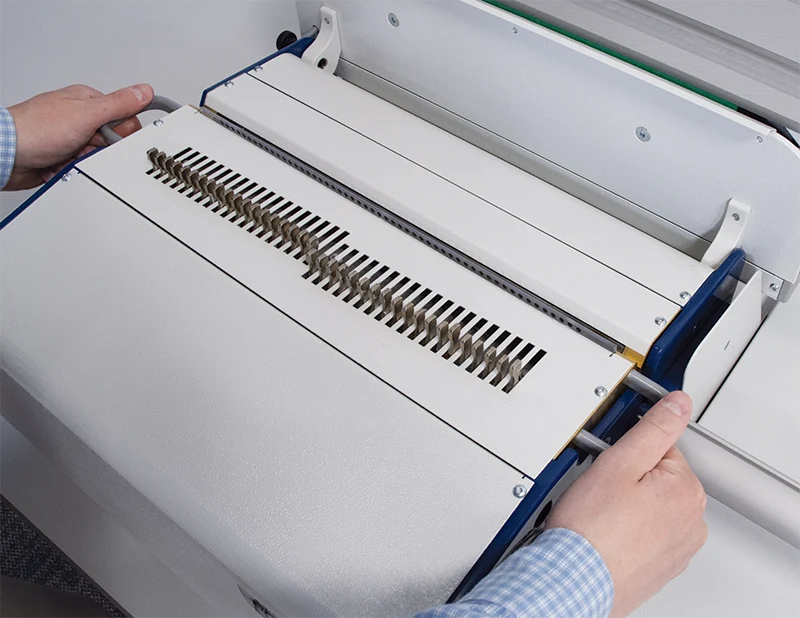

- Interchangeable dies for double-loop wire, plastic comb, and spiral coil.

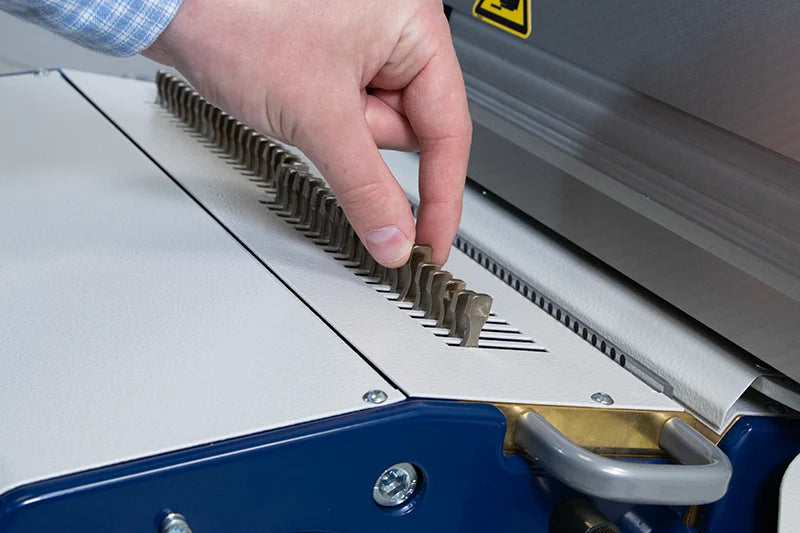

- Disengageable punch pins prevent partial holes on different paper sizes.
- Adjustable depth gauge, variable margin depth, and large slide-out waste tray.
The Punch100A’s heavy-duty construction and semi-automatic operation support busy offices and print rooms. Its tool-free die changes let one machine prepare documents for wire, comb, or coil binding.
