Formax Punch100 Modular Electric Punching System
Spec Sheet: View PDF File
Product Specifications
| Product Name | Formax Punch100 Modular Electric Punching System |
| Manufacturer | Formax |
| SKU | Punch100 |
| Punching Speed | Up to 1,200 sheets/hr |
| Modular | Yes |
| Punching Width | 0.39 inch - 13.4 inches (10 - 340mm) |
| Unpunched Length | 1.57 inches - 31.5 inches (40 - 800mm) |
| Max. Punching Thickness | Up to 0.137 inch (3.5mm) |
| Punching Operation | Electric, foot pedal |

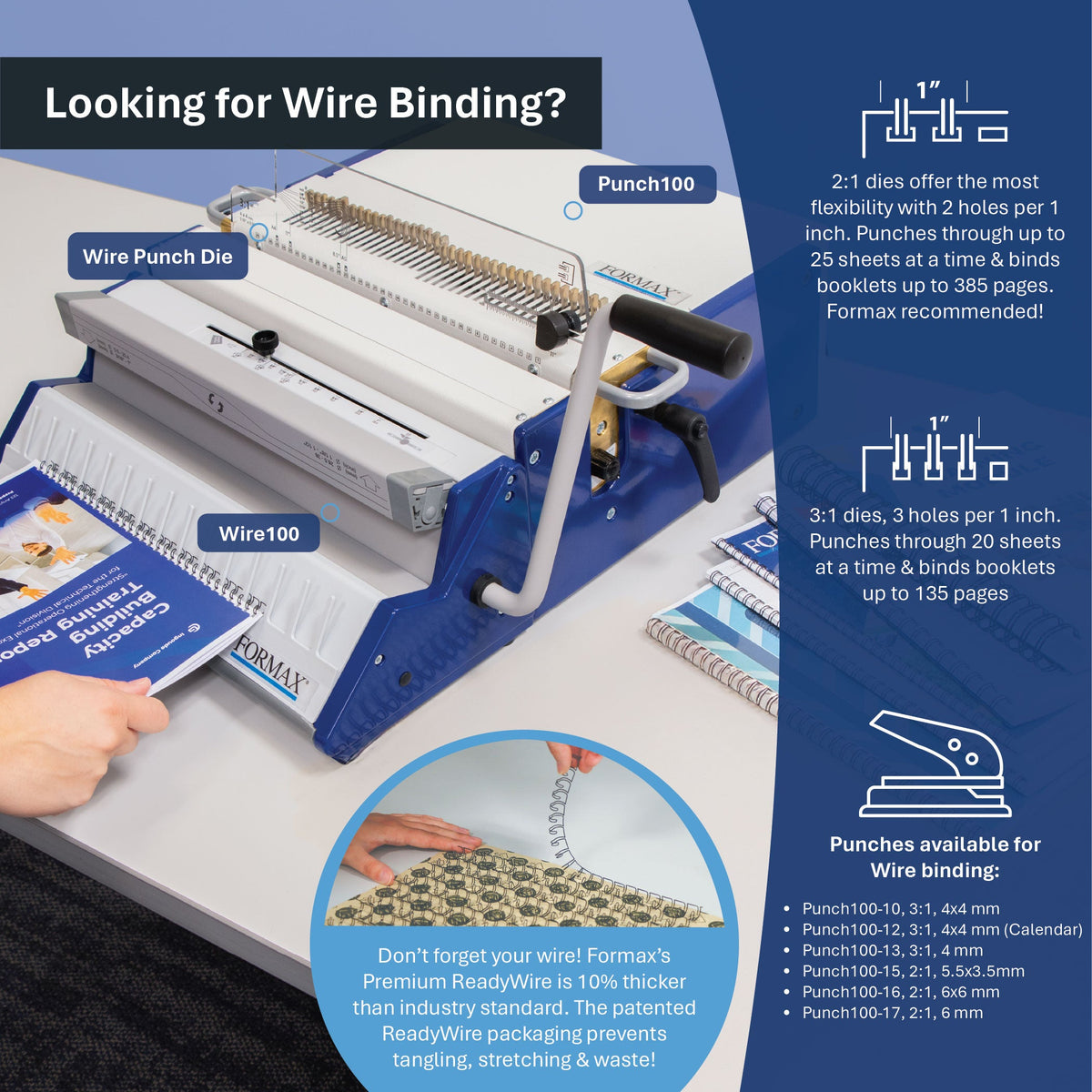

| Punch Dies Available | Double-loop wire, spiral coil, plastic comb (2:1 or 3:1 pitch) |
| Disengageable Punch Pins | Yes |
| Variable Margin Depth | Yes |
| Dimensions | 22 x 14 x 9.8 inches (559 x 356 x 250mm) |
| Weight | 76 lbs (34.5kg) |
| Power | 120V, 60Hz, 250W |
| Optional Accessories | Wire100 Manual Wire Binding Machine Comb100 Manual Comb Binding Machine Coil100 Electric Coil Binding & Crimping Machine Punch100-10 Die: 3:1, 4 x 4mm Punch100-11 Die: 3:1, 4 x 4mm Punch100-12 Die: 3:1, 4 x 4mm, thumb cut Punch100-13 Die: 3:1, 4mm round Punch100-14 Die: 3:1, 4mm round, thumb cut Punch100-15 Die: 2:1, 5.5 x 3.5mm Punch100-16 Die: 2:1, 6 x 6mm Punch100-17 Die: 2:1, 6mm round Punch100-18 Die: 8 x 3mm, plastic comb Punch100-19 Die: 0.25 inch, 5 x 4mm, spiral coil |
Product Description:

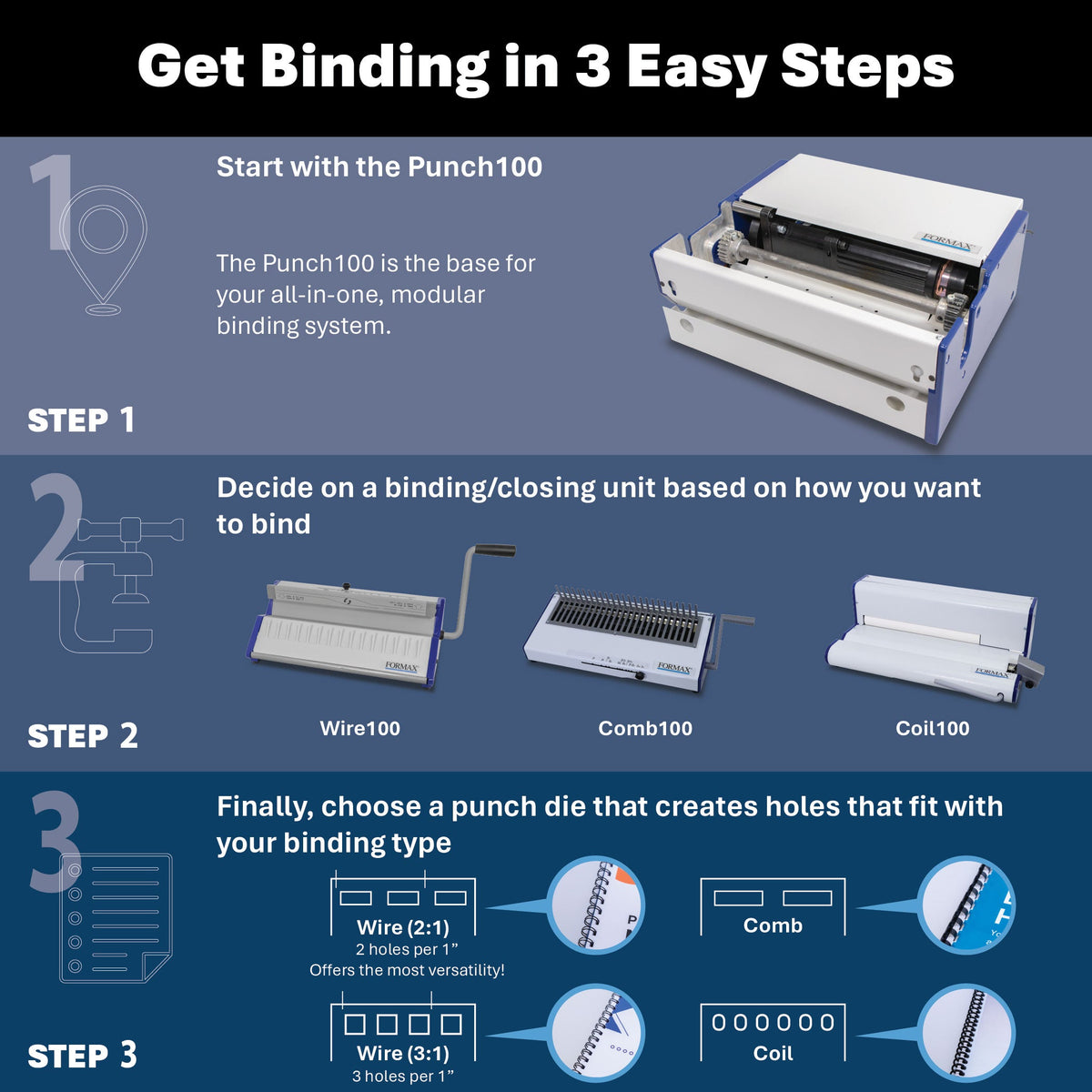

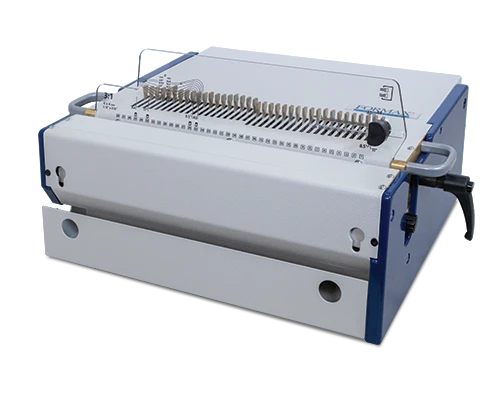

The Formax Punch100 Modular Electric Punching System is a heavy-duty electric punch that works as a stand-alone unit or pairs with the Formax Wire100, Comb100, or Coil100 binding modules. Foot pedal activation keeps production moving, with punching speeds up to 1,200 sheets per hour and a maximum punching thickness of 0.137 inch. Interchangeable dies let one punch handle double-loop wire, plastic comb, and spiral coil binding.
Key Features:

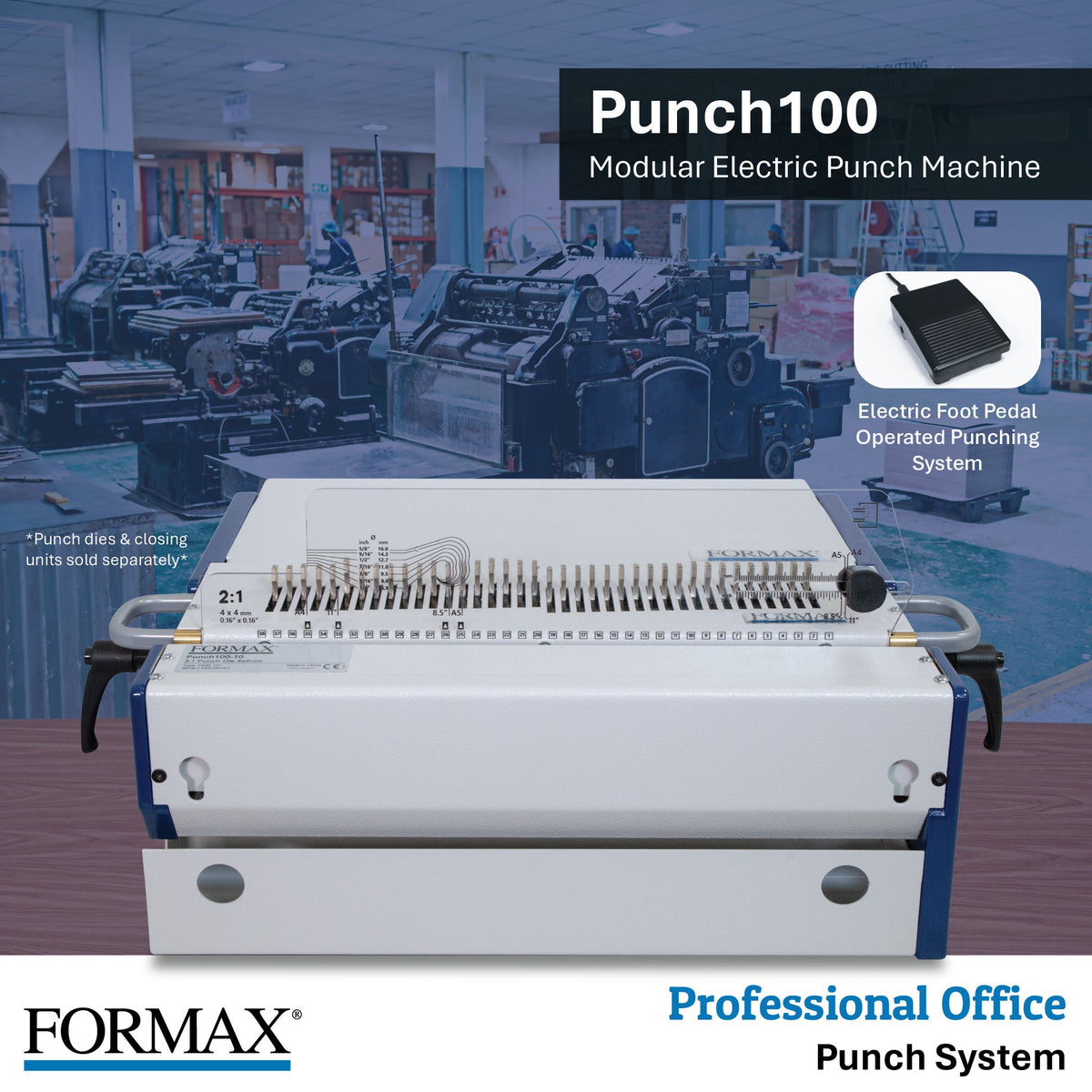

- Foot pedal activated electric punching for efficient operation.
- Interchangeable dies for double-loop wire, plastic comb, and spiral coil.
- Tool-free die changes switch between binding styles quickly.
- Vertical punching uses gravity to align sheets for consistent hole placement.
- Disengageable punch pins prevent partial holes on different paper sizes.
- Punching width up to 13.4 inches with a maximum thickness of 0.137 inch.
- Adjustable depth gauge and variable margin depth for accurate punching.
- Slide-out waste tray makes punched-paper disposal easy.

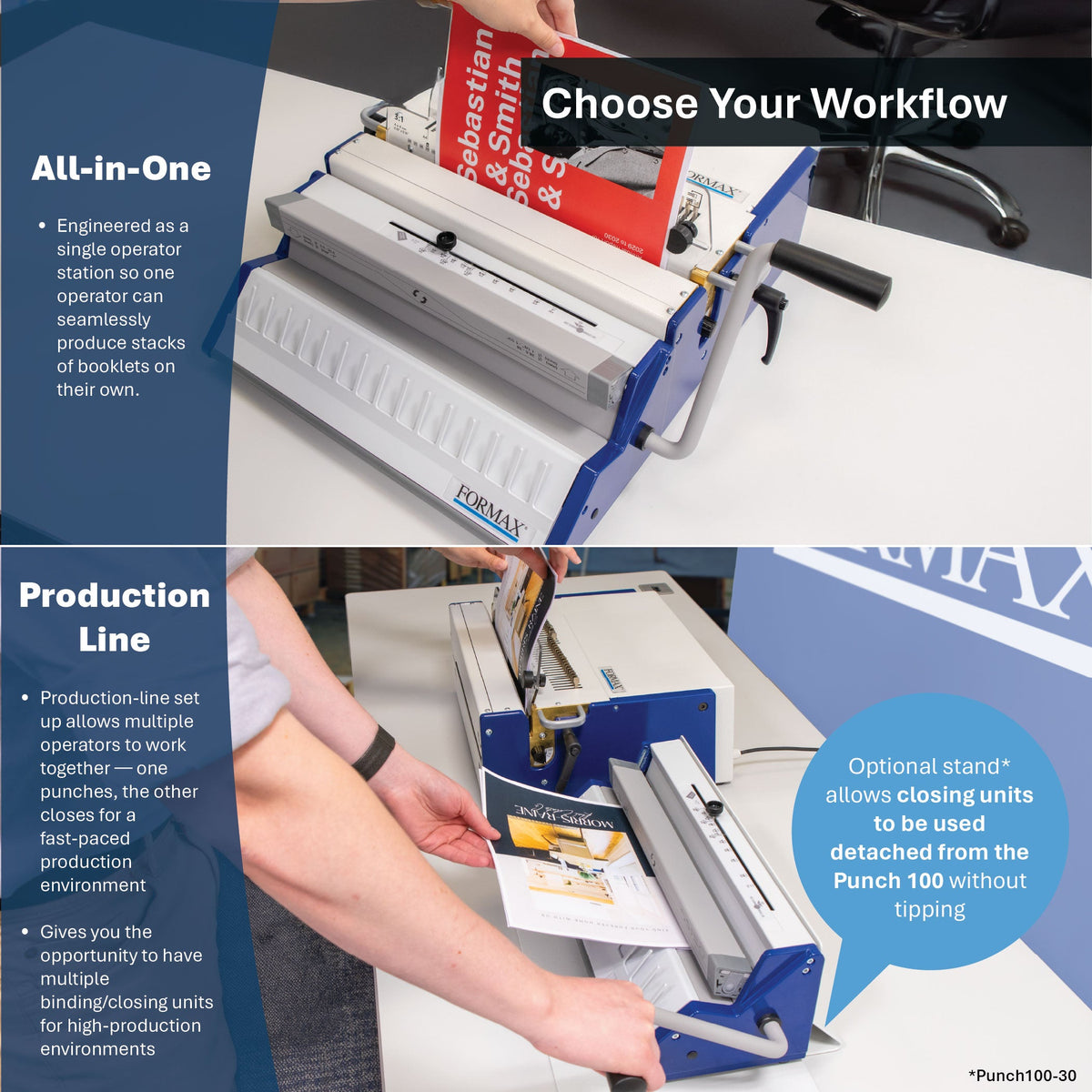

The Punch100’s rugged, compact design gives growing teams one platform for multiple binding styles. With optional binding modules attached, it supports an assembly-line workflow where one operator punches while others bind.
