Formax | SKU:
FD 7102-Standard3
Formax FD 7102-Standard 3 High Volume Modular Inserter
$47,277.23
Unit price
/
Unavailable
Shipping calculated at checkout.
Formax FD 7102-Standard 3 High Volume Modular Inserter is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Formax FD 7102-Standard 3 High Volume Modular Inserter
$47,277.23
Unit price
/
Unavailable
Brochure View PDF File
Product Specifications
| Product Name | Formax FD 7102-Standard 3 High Volume Modular Inserter |
| Manufacturer | Formax |
| SKU | FD 7102-Standard3 |
| Dimensions (H”xW”xD”) | 36 x 107 x 25 (Tower Feeder w/Inserter Base) |
| Envelope Hopper Capacity (Envelopes) | 400 |
| Setup | Autoset, one-touch setup |
| Speed (Pieces/hr) | 4,500 |
| Duty Cycle (Pieces/month) | 150,000 |

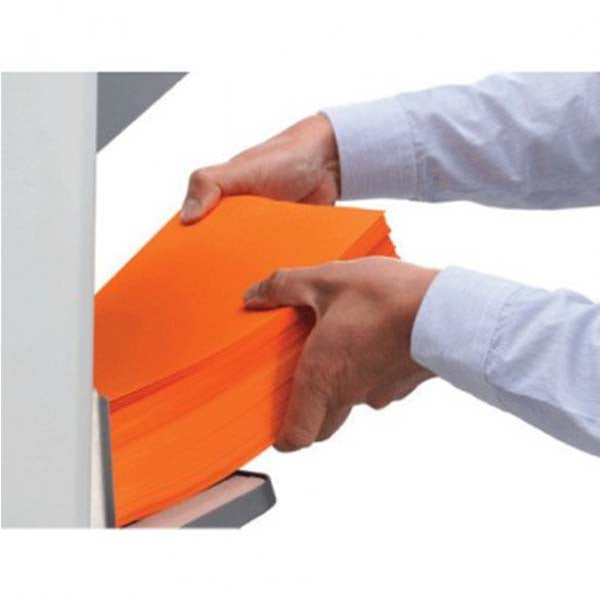

| Feed Stations w/ Sheet Capacity | 3 Standard Feeders (500 sheet capacity) |
| Vertical Stacker Capacity (Filled Envelopes) | 500 |
| Max. sheet Size (H") | 5.5 - 16 |
| Warranty | 90 day limited warranty |
| Country of Origin | United States |
| Power Supply (Volts) | 110V AC, 60 Hz |
| Optional Accessories | Various Modules (Insert feeders, intelligent feeders, feeder folders, BRE feeder), Envelope Catch Tray, Envelope Output Sorter. |
| Programmable Fold Applications | Unlimited |
| Programmable Fold Applications | Unlimited |
| Fold Types | C, Half, Z, Double Parallel, No fold |

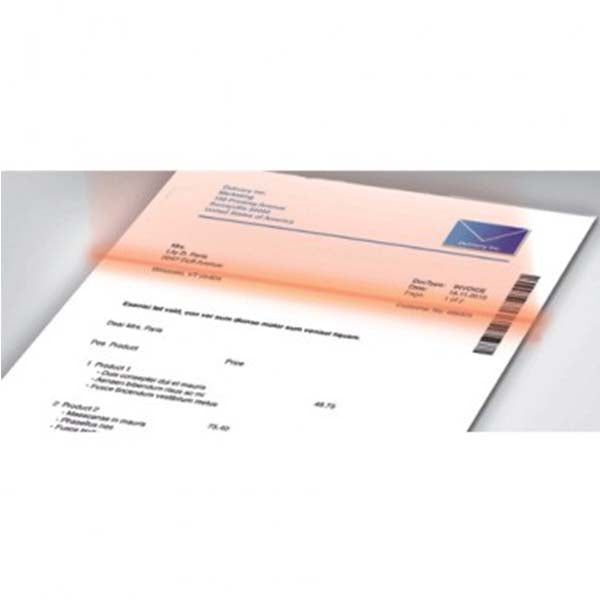

| Double Feed Detection | Yes |
| Envelope Size (W") | 3.5 - 6.48 |
| Envelope Size (H") | 6 - 10.37 |
| Max. sheet Size (W") | 5.5 - 9 |
Product Description:

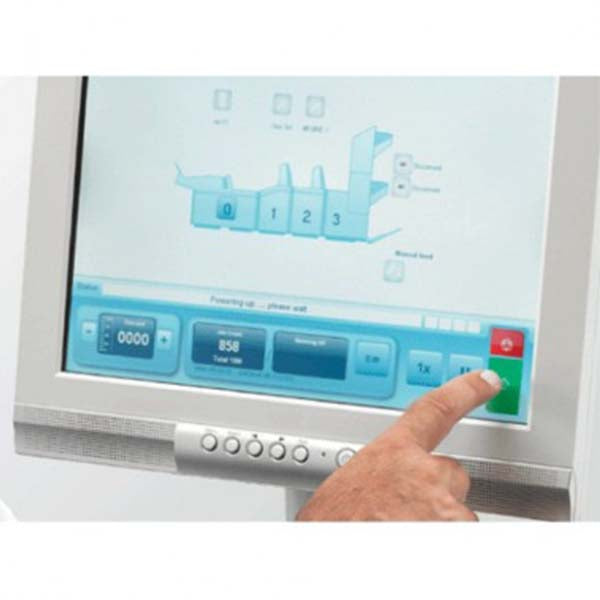

The Formax FD 7102-Standard 3 presents a modular design that is adaptable to the specific needs of the users. It can easily process up to 4,500 envelopes in one hour. It provides space for about 9 additional feeders to be attached. The Formax FD 7102 inserter comes with a 15” wide colored touchscreen control panel where users can make configurations according to their requirements.
- A special High-Capacity 4-foot Output Conveyor can be set at two different angles and helps direct the output to its destination.
- This Formax high volume inserter features Accumulator and Divert deck along with ergonomic custom cabinets with casters for making the setup easily moveable and spacious for increased storage.
- Users’ convenience is treated with utmost priority with the capability of this machine to save unlimited recurring jobs for future use.
Video of Formax FD 7102-Standard 3 High Volume Modular Inserter
