Formax FD 6608 Standard 3F Folder & Inserter
Spec Sheet: View PDF File
User Manual: View PDF File
Product Specifications
| Product Name | Formax FD 6608 Standard 3F Folder & Inserter |
| Manufacturer | Formax |
| SKU | FD 6608-Standard 3F |
| Dimensions (H”xW”xD”) | 31” H x 60” W x 18” D |
| Envelope Hopper Capacity (Envelopes) | 500 |
| Setup | Autoset, one-touch setup |
| Speed (Pieces/hr) | 4300 |
| Duty Cycle (Pieces/month) | 80,000 |
| Feed Stations w/ Sheet Capacity | 2 standard station with 325 sheet capacity each and one high capacity standard feeder with 725 sheet capacity |
| Vertical Stacker Capacity (Filled Envelopes) | 500 |
| Max. sheet Size (H") | 3.5 - 14 |
| Warranty | 90 day parts and labor |
| Country of Origin | United States |
| Power Supply (Volts) | 100 Volts |

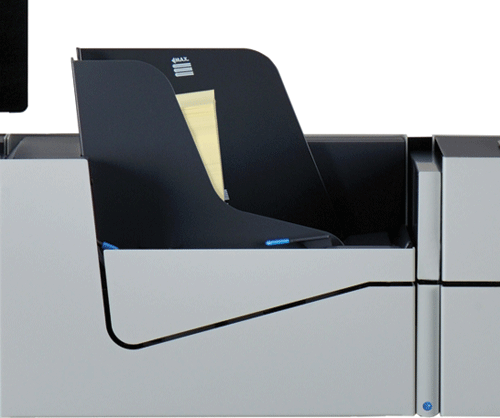

| Optional Accessories | Short Feed Trays, Production Feeder, CIS Scanner, Thin Booklet Feeder, Side Exit Tray, OMR, BCR & OCR ,Short Feed Trays, Custom Cabinets and 402 Series Joggers |
| Programmable Fold Applications | 50 |
| Programmable Fold Applications | 41 - 60 |
| Fold Types | C, V, Z, Double Parallel, no fold |
| Double Feed Detection | Yes |
| Envelope Size (W") | 6.3 - 9.7 |
| Envelope Size (H") | 3.5 - 6.35 |
| Max. sheet Size (W") | 5.1 - 9 |
Product Description:

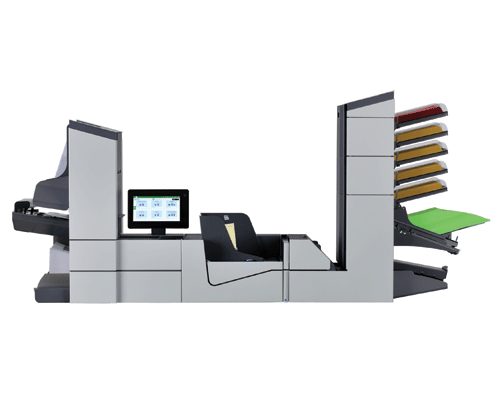

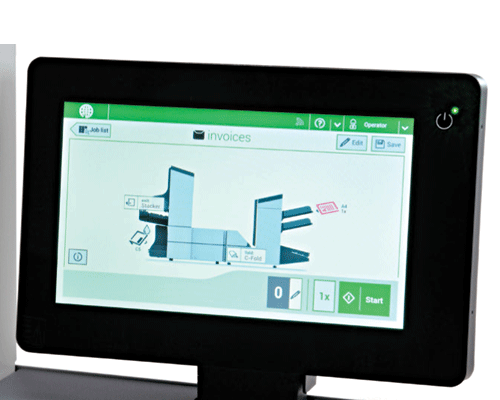

The Formax FD 6608 Standard 3F Folder & Inserter offers a robust solution with three stations, including 1 High Capacity Standard Feeder and 2 Standard Feeders. Capable of processing 4300 envelopes per hour, this inserter boasts a 10” color touch screen with intuitive graphic symbols for easy operation.
- AutoSetTM functionality automatically configures paper thickness, length, fold type, and envelope size, streamlining operations.
- Double document detection prevents repetitive document feeding, ensuring accuracy.

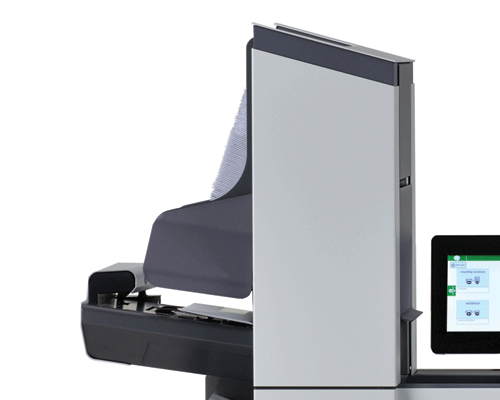

- The high capacity vertical output stacker can hold up to 500 processed envelopes, enhancing workflow efficiency.
- With the ability to fold 10 sheets in half fold or 8 sheets in tri-fold simultaneously, it offers versatile folding options.
- Eco mode activates after an hour of inactivity, promoting energy savings and machine longevity.

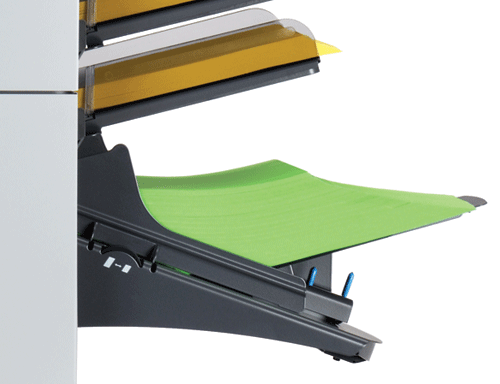

- Each feeder can hold up to 325 sheets and can be cascaded for continuous operation.
The Formax FD 6608 Standard 3F excels in performance, processing up to 80,000 pieces per month with ease and precision. The inserter supports various fold types, including C, Half, Z, Double Parallel, and no fold. Equipped with AutoSetTM technology, it can store 50 programmable jobs for quick access. Additionally, the machine comes with a 90-day warranty on parts and labor, ensuring reliability for users.
Recommended for small businesses and offices, the Formax FD 6608 Standard 3F Folder & Inserter offers the reliability of larger machines in a compact design. Its diverse features make it suitable for a wide range of office environments, providing efficiency and accuracy for mail processing tasks.
