Formax FD 6608 Special 5F Folder & Inserter
Spec Sheet: View PDF File
User Manual: View PDF File
Product Specifications
| Product Name | Formax FD 6608 Special 5F Folder & Inserter |
| Manufacturer | Formax |
| SKU | FD 6608-Special 5F |
| Dimensions (H”xW”xD”) | 31” H x 60” W x 18” D |
| Envelope Hopper Capacity (Envelopes) | 500 |
| Setup | Autoset, one-touch setup |
| Speed (Pieces/hr) | 4300 |
| Duty Cycle (Pieces/month) | 80,000 |
| Feed Stations w/ Sheet Capacity | 2 standard & 2 special feed stations with 325 sheet capacity each and 1 high capacity feed station with 725 sheet capacity |
| Vertical Stacker Capacity (Filled Envelopes) | 500 |
| Max. sheet Size (H") | 3.5 - 14 |
| Warranty | 90 day parts and labor |
| Country of Origin | United States |
| Power Supply (Volts) | 100 Volts |
| Optional Accessories | Short Feed Trays, Production Feeder, CIS Scanner, Thin Booklet Feeder, Side Exit Tray, OMR, BCR & OCR ,Short Feed Trays, Custom Cabinets and 402 Series Joggers |
| Programmable Fold Applications | 50 |
| Programmable Fold Applications | 41 - 60 |
| Fold Types | C, V, Z, Double Parallel, no fold |
| Double Feed Detection | Yes |
| Envelope Size (W") | 6.3 - 9.7 |
| Envelope Size (H") | 3.5 - 6.35 |
| Max. sheet Size (W") | 5.1 - 9 |
Product Description:

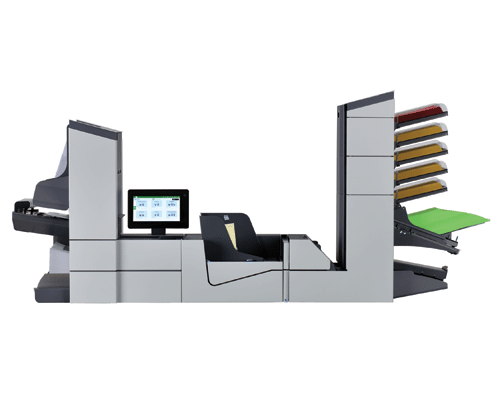

Formax FD 6608 Special 5F Folder & Inserter is a versatile solution designed for mid-volume processing needs. With 5 stations including 2 Special Feeders, 2 Standard Feeders, and 1 High-Capacity Feeder, this inserter offers a total feed capacity of 2,025 sheets, allowing for continuous processing for maximum efficiency.
- The special and standard feeders can each hold up to 325 sheets, while the high-capacity feeder accommodates 725 sheets, enabling multi feeding for automatic collation and insertion.

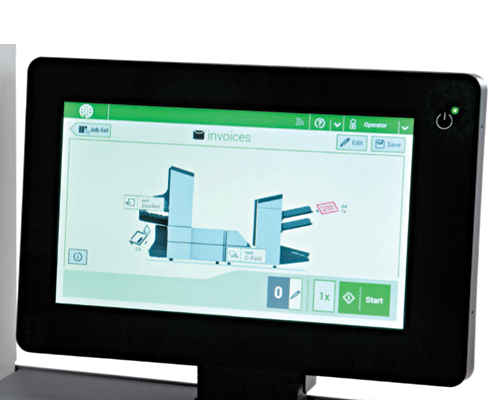

- Featuring a 10” color touch screen with graphic symbols, the Formax FD 6608 ensures simple and user-friendly operation. Double document detectors at the infeed provide document security, while the Eco mode saves energy by automatically putting the inserter into standby mode after an hour of inactivity.
- The inserter supports fold types such as C, Half, Z, Double Parallel, and no fold, offering flexibility in processing various document types. With a processing speed of 4300 envelopes per hour, the Formax FD 6608 is suitable for daily mail processing and can store up to 50 programmable jobs for instant use.
To enhance user flexibility, the Formax FD 6608 Special 5F inserter comes with 10 configurations, including the Special 5F setup with a combination of special and standard feeders along with a high-capacity feeder. The AutoSetTM feature automatically adjusts settings like paper thickness, length, fold type, and envelope size for seamless operation.
This inserter is ideal for mid-volume solutions, with a processing speed of 4300 pieces per hour and a monthly duty cycle of 80,000 pieces. The user-friendly design, including a color touch screen control panel, simplifies setup and operation for efficient processing. The machine's eco-friendly feature ensures energy conservation by entering standby mode when inactive for an hour.
Backed by a 90-day warranty on parts (excluding wearables) and labor, the Formax FD 6608 Special 5F inserter is a reliable and efficient choice for mid-volume processing requirements.
Video of Formax FD 6608 Special 5F Folder & Inserter
