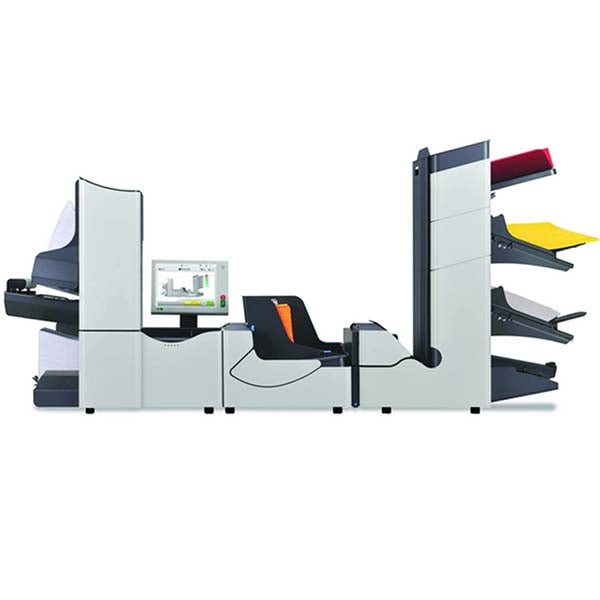

Formax FD 6606-Standard 5F Folder & Inserter
Brochure View PDF File
Product Specifications
| Product Name | Formax FD 6606-Standard 5F Folder & Inserter |
| Manufacturer | Formax |
| SKU | FD 6606-Standard5F |
| Dimensions (H”xW”xD”) | 36 x 63 x 18 (6 Stations) |
| Envelope Hopper Capacity (Envelopes) | 500 |
| Setup | Autoset, one-touch setup |
| Speed (Pieces/hr) | 4,300 |
| Duty Cycle (Pieces/month) | 80,000 |
| Feed Stations w/ Sheet Capacity | 4 Standard Feeders (325 sheet capacity) 1 High Capacity Feeder (725 sheet capacity) |
| Vertical Stacker Capacity (Filled Envelopes) | 500 |
| Max. sheet Size (H") | 3.5 - 14 |
| Warranty | 90 day limited warranty |
| Country of Origin | United States |
| Power Supply (Volts) | 100V AC, 50/60 Hz |
| Optional Accessories | Thin booklet feeder (135 Inserts), High capacity output conveyor, Envelope hopper (1,000) envelopes, Side exit Tray, Cabinet, 402 Series Jogger |
| Programmable Fold Applications | 50 |
| Programmable Fold Applications | 41 - 60 |
| Fold Types | C, Half, Z, Double Parallel, No fold |
| Double Feed Detection | Yes |
| Envelope Size (W") | 5.5 - 9.8 |
| Envelope Size (H") | 3.5 - 6.4 |
| Max. sheet Size (W") | 5 - 9 |
Product Description:
The Formax FD 6606-Standard 5F is the ultimate solution for streamlining the laborious tasks of folding and inserting envelopes with remarkable efficiency. Operating at a speed of up to 4,300 pieces per hour, this machine excels in productivity, thanks to its 4 standard feeders and 1 highest capacity feeder, each capable of accommodating 325 sheets effortlessly.
This product is designed to simplify folding and inserting operations across various settings. Equipped with detectors for paper size, thickness, and color, monitoring and evaluation become seamless. The 10.4” wide color touch screen control panel ensures easy access to settings, with up to 50 programmable jobs storable in the inserter's memory for personalized configurations. The cascade mode feature guarantees uninterrupted functionality, enhancing overall performance.
- Top-loading holder accommodates up to 500 envelopes

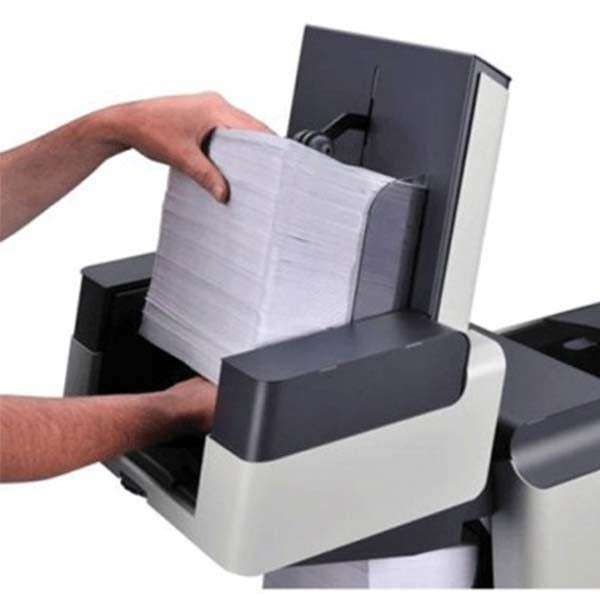

- High capacity feeder holds up to 725 sheets

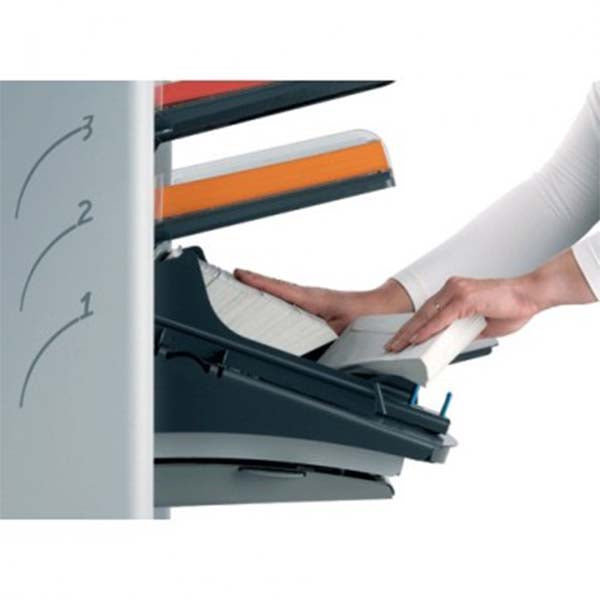

- Vertical stacker stores up to 500 finished envelopes neatly
- Barcode and Optical Mark Recognition capabilities
- One-touch adjustments for easy setup
- Energy-saving mode prolongs product lifespan
Video of Formax FD 6606-Standard 5F Folder & Inserter
