Formax  |  SKU: FD 6606-Standard4

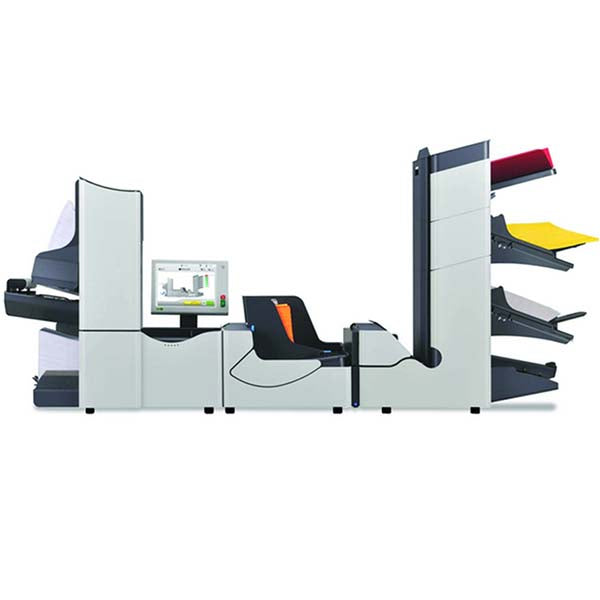

Formax FD 6606-Standard 4 Folder & Inserter

$41,579.21
Shipping calculated at checkout.

Brochure View PDF File

Product Specifications
Product Name Formax FD 6606-Standard 4 Folder & Inserter
Manufacturer Formax
SKU FD 6606-Standard4
Dimensions (H”xW”xD”) 36 x 63 x 18 (6 Stations)
Envelope Hopper Capacity (Envelopes) 500
Setup Autoset, one-touch setup
Speed (Pieces/hr) 4,300
Duty Cycle (Pieces/month) 80,000
Feed Stations w/ Sheet Capacity 4 Standard Feeders (325 sheet capacity)
Vertical Stacker Capacity (Filled Envelopes) 500
Max. sheet Size (H") 3.5 - 14
Warranty 90 day limited warranty
Country of Origin United States
Power Supply (Volts) 100V AC, 50/60 Hz

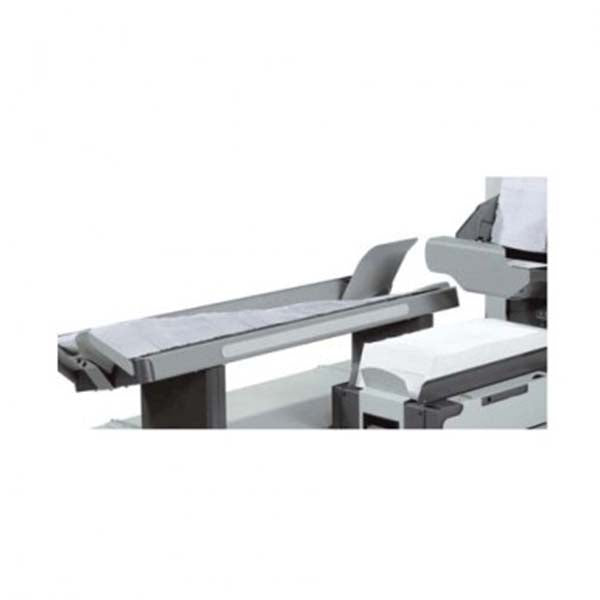

Optional Accessories Thin booklet feeder (135 Inserts), High capacity output conveyor, Envelope hopper (1,000) envelopes, Side exit Tray, Cabinet, 402 Series Jogger
Programmable Fold Applications 50
Programmable Fold Applications 41 - 60
Fold Types C, Half, Z, Double Parallel, No fold
Double Feed Detection Yes
Envelope Size (W") 5.5 - 9.8
Envelope Size (H") 3.5 - 6.4
Max. sheet Size (W") 5 - 9
Product Description:

The Formax FD 6606-Standard 4 Automatic Inserter and Folder is an intelligent folding and inserting machine designed to streamline the process of folding and inserting documents into envelopes. With a modular design that can accommodate up to 7 feed stations, this machine offers increased productivity for high-volume tasks.


  • Equipped with a 10.4” full-color touchscreen control panel and graphical interface, the FD 6606-Standard 4 ensures user engagement and ease of operation.
  • Capable of processing up to 4,300 envelopes per hour, this machine delivers speedy and efficient performance.
  • Automatic paper and envelope Presence Sensors display indications on the control panel, enhancing operational convenience.
  • Supporting fold types including C, Half, Z, Double Parallel, and no fold, the FD 6606-Standard 4 offers versatile folding options.
  • AutoSet technology enables quick and convenient setup, reducing preparation time.
  • The vertical output stacker features a reverse stacking mechanism to accommodate up to 500 envelopes, ensuring organized output.

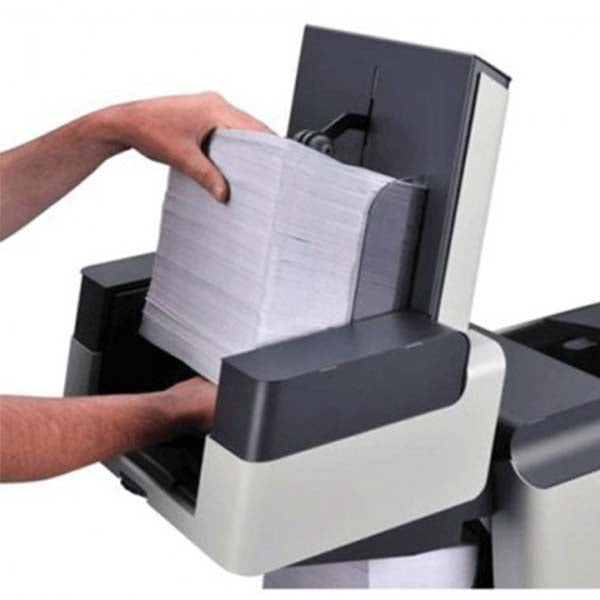

  • With a decently-sized top-loading envelope hopper that can hold 500 envelopes, uninterrupted operation is facilitated.
  • Enhanced security is provided by two double-document detectors, ensuring accurate processing.
  • Automatic standby mode helps prolong the longevity of the FD 6606-Standard 4 unit, optimizing energy usage.

Video of Formax FD 6606-Standard 4 Folder & Inserter
