Formax FD 6606-Standard 3F Folder & Inserter
Brochure View PDF File
Product Specifications
| Product Name | Formax FD 6606-Standard 3F Folder & Inserter |
| Manufacturer | Formax |
| SKU | FD 6606-Standard3F |
| Dimensions (H”xW”xD”) | 36 x 63 x 18 (6 Stations) |
| Envelope Hopper Capacity (Envelopes) | 500 |
| Setup | Autoset, one-touch setup |
| Speed (Pieces/hr) | 4,300 |
| Duty Cycle (Pieces/month) | 80,000 |
| Feed Stations w/ Sheet Capacity | 2 Standard Feeders (325 sheet capacity) 1 High Capacity Feeder (725 sheet capacity) |
| Vertical Stacker Capacity (Filled Envelopes) | 500 |
| Max. sheet Size (H") | 3.5 - 14 |
| Warranty | 90 day limited warranty |
| Country of Origin | United States |
| Power Supply (Volts) | 100V AC, 50/60 Hz |
| Optional Accessories | Thin booklet feeder (135 Inserts), High capacity output conveyor, Envelope hopper (1,000) envelopes, Side exit Tray, Cabinet, 402 Series Jogger |
| Programmable Fold Applications | 50 |
| Programmable Fold Applications | 41 - 60 |
| Fold Types | C, Half, Z, Double Parallel, No fold |
| Double Feed Detection | Yes |
| Envelope Size (W") | 5.5 - 9.8 |
| Envelope Size (H") | 3.5 - 6.4 |
| Max. sheet Size (W") | 5 - 9 |
Product Description:

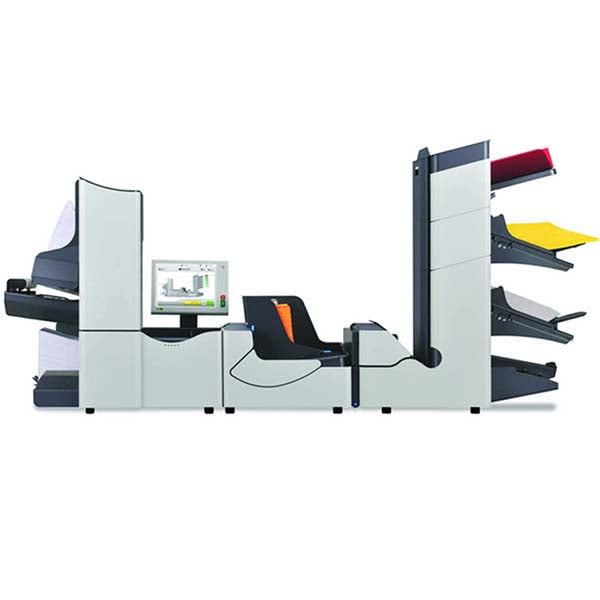

The Formax FD 6606 inserter/folder is a versatile solution for streamlining inserting and folding tasks. Featuring three unique stations, including a high-capacity document feeder and two standard feeders, this machine offers the flexibility to handle up to 7 feed stations for efficient operation.
With a 10.4” full-color touchscreen control panel, users can easily navigate and control the machine's functions, allowing for quick setup and operation. The FD 6606-Standard 3F can process up to 4,300 envelopes per hour, offering a choice of 50 programmable jobs for diverse needs.
- Automatic Presence Sensors alert operators to the status of envelopes or documents inside the machine, enhancing operational efficiency.
- The machine's flexible diverter ensures error-free results by accurately directing output.
- Supported fold types include C, Half, Z, Double Parallel, and no fold, catering to various folding requirements.
The Formax FD 6606-Standard 3F is designed to handle envelopes up to 6.4” H x 9.8” W, making it suitable for a range of mailing applications. Additionally, features like AutoSet technology and Daily Mail mode further streamline the processing of stapled sets with consistent results.
Video of Formax FD 6606-Standard 3F Folder & Inserter
