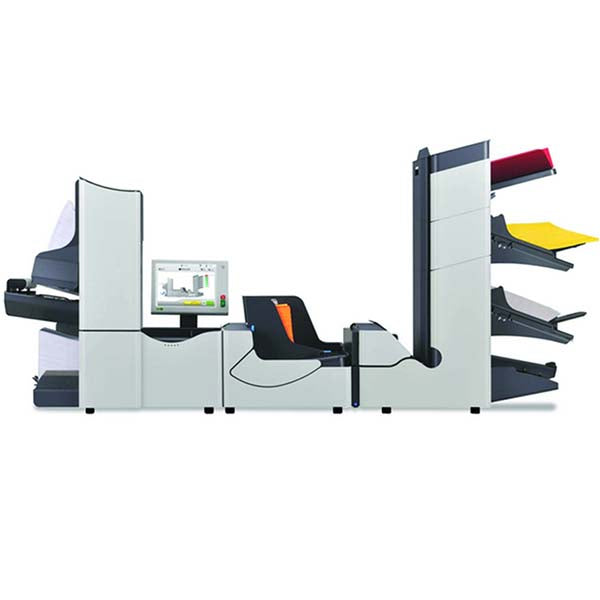

Formax FD 6606-Standard 2 Folder & Inserter
Brochure View PDF File
Product Specifications
| Product Name | Formax FD 6606-Standard 2 Folder & Inserter |
| Manufacturer | Formax |
| SKU | FD 6606-Standard2 |
| Dimensions (H”xW”xD”) | 36 x 63 x 18 (6 Stations) |
| Envelope Hopper Capacity (Envelopes) | 500 |
| Setup | Autoset, one-touch setup |
| Speed (Pieces/hr) | 4,300 |
| Duty Cycle (Pieces/month) | 80,000 |
| Feed Stations w/ Sheet Capacity | 2 Standard Feeders (325 sheet capacity) |
| Vertical Stacker Capacity (Filled Envelopes) | 500 |
| Max. sheet Size (H") | 3.5 - 14 |
| Warranty | 90 day limited warranty |
| Country of Origin | United States |
| Power Supply (Volts) | 100V AC, 50/60 Hz |
| Optional Accessories | Thin booklet feeder (135 Inserts), High capacity output conveyor, Envelope hopper (1,000) envelopes, Side exit Tray, Cabinet, 402 Series Jogger |
| Programmable Fold Applications | 50 |
| Programmable Fold Applications | 41 - 60 |
| Fold Types | C, Half, Z, Double Parallel, No fold |
| Double Feed Detection | Yes |
| Envelope Size (W") | 5.5 - 9.8 |
| Envelope Size (H") | 3.5 - 6.4 |
| Max. sheet Size (W") | 5 - 9 |
Product Description:
The Formax FD 6606-Standard 2 is an efficient folder and inserter capable of processing up to 4,300 envelopes per hour. Despite having fewer feeders than some competitors, this machine excels in delivering high-quality and precise output. Its standout feature is the large 10.4” color touch screen, which provides a user-friendly interface for configuring output settings such as color, length, weight, and thickness.
Users can conveniently store up to 50 programmable jobs in the inserter's memory for future repetitive tasks. The Cascade mode ensures seamless operation by activating all stations in sequence. Additionally, the energy-saving mode automatically switches off the machine after an hour of inactivity, promoting longevity.
- Top hopper with a capacity of up to 500 envelopes
- High-capacity document holder accommodating up to 725 sheets
- Special vertical stacker for neatly arranging up to 500 filled envelopes
- Barcode Recognition and Optical Mark and Character Recognition features
- Ability to store up to 50 programmable jobs
- Automatic energy-saving mode after one hour of inactivity
