Product Specifications
Product Name | Formax FD 6606-Special 4 Folder & Inserter |
Manufacturer | Formax |
SKU | FD 6606-Special4 |
Dimensions (H”xW”xD”) | 36 x 63 x 18 (6 Stations) |
Envelope Hopper Capacity (Envelopes) | 500 |
Setup | Autoset, one-touch setup |
Speed (Pieces/hr) | 4,300 |
Duty Cycle (Pieces/month) | 80,000 |
Feed Stations w/ Sheet Capacity | 2 Standard Feeders (325 sheet capacity) 2 Special Feeders (325 sheet capacity) |
Vertical Stacker Capacity (Filled Envelopes) | 500 |
Max. sheet Size (H") | 3.5 - 14 |
Warranty | 90 day limited warranty |
Country of Origin | United States |
Power Supply (Volts) | 100V AC, 50/60 Hz |
Optional Accessories | Thin booklet feeder (135 Inserts), High capacity output conveyor, Envelope hopper (1,000) envelopes, Side exit Tray, Cabinet, 402 Series Jogger |
Programmable Fold Applications | 50 |
Programmable Fold Applications | 41 - 60 |
Fold Types | C, Half, Z, Double Parallel, No fold |
Double Feed Detection | Yes |
Envelope Size (W") | 5.5 - 9.8 |
Envelope Size (H") | 3.5 - 6.4 |
Max. sheet Size (W") | 5 - 9 |
Product Description:

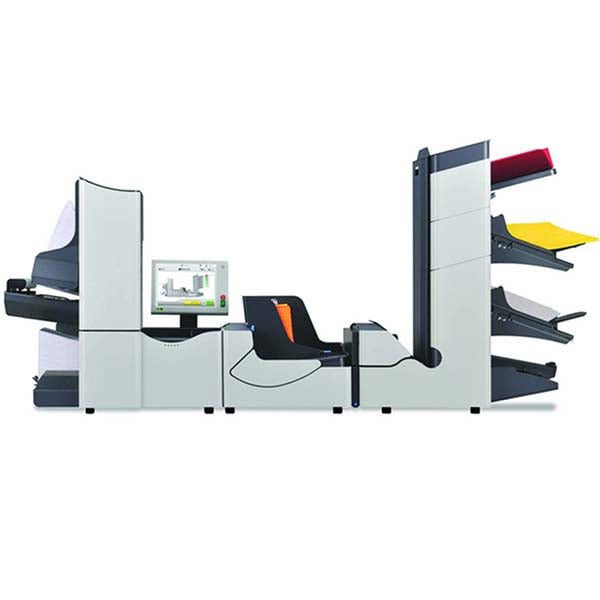

The Formax FD 6606-Special 4Automatic Inserter and Folder is a versatile machine designed to streamline the process of folding and inserting documents into envelopes. With the ability to fold up to 10 sheets of paper for half-fold and 8 sheets for tri-fold, this machine offers flexibility in handling various document types.
Featuring a wide 10.4” full-color touchscreen control panel with a user-friendly graphical interface, the FD 6606-Special 4 makes operation simple and efficient. The AutoSet feature allows for one-touch setup, enhancing convenience and productivity in processing up to 4,300 envelopes per hour.
- Capable of furnishing multiple fold types including C, Half, Z, Double Parallel, and no fold, catering to diverse folding needs.
- The modular framework of the machine enables the attachment of up to 7 feed stations, increasing efficiency and customization options.
- Automatic paper and envelope presence sensors with status indicators ensure smooth operations and error prevention.

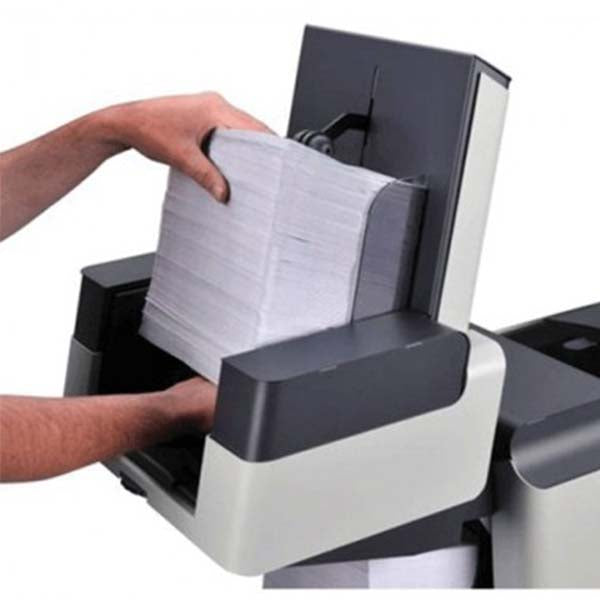

- The High-Capacity Document Feeder can hold up to 725 sheets, reducing the need for frequent refills during large jobs.

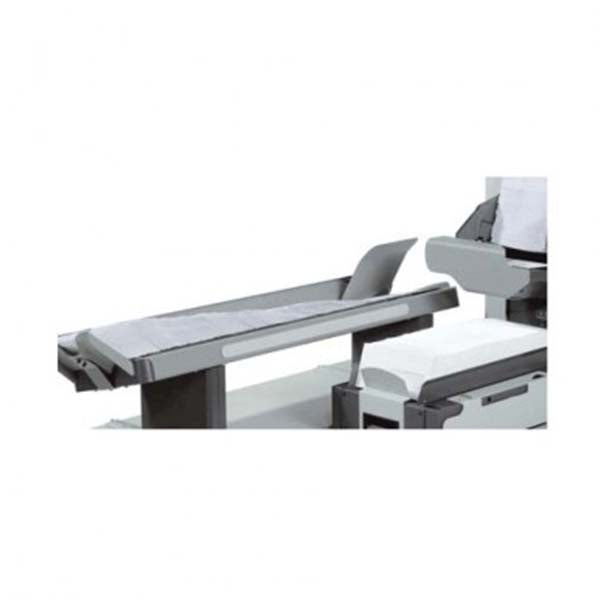

- The vertical output stacker provides ample storage space for up to 500 filled envelopes, optimizing workflow.
- With 50 programmable jobs and two double-document detectors, the FD 6606-Special 4 offers versatility and security in document processing.
- Error Diverter functionality separates incomplete outputs from completed ones without disrupting the operation, ensuring efficiency.
Whether used in offices, mailrooms, or print shops, the Formax FD 6606-Special 4Folder & Inserter simplifies and accelerates the folding and inserting process. Its energy-saving mode and durable construction make it a reliable choice for high-volume environments, enhancing productivity and workflow efficiency.
