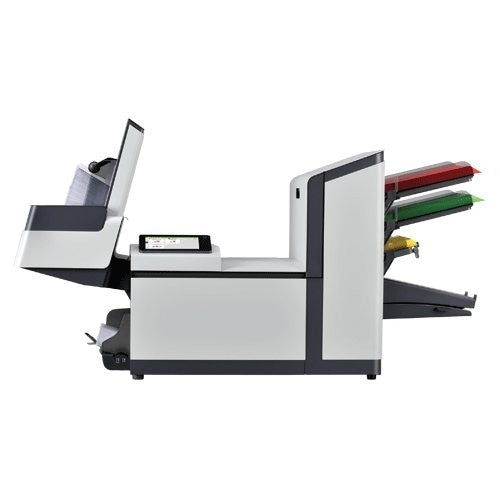

Formax FD 6210 Special 2 Folder & Inserter
Spec Sheet: View PDF File
User Manual: View PDF File
Product Specifications
| Product Name | Formax FD 6210 Special 2 Folder & Inserter |
| Manufacturer | Formax |
| SKU | FD 6210-Special 2 |
| Dimensions (H”xW”xD”) | 36” H x 16.5” W x 49” D |
| Envelope Hopper Capacity (Envelopes) | 150 |
| Setup | Autoset, one-touch setup |
| Speed (Pieces/hr) | 2200 |
| Duty Cycle (Pieces/month) | 15000-20000 |
| Feed Stations w/ Sheet Capacity | 2 Feed Station with 325 Sheet Capacity Each and 1 Special Insert/BRE feeder with 50 BREs or 325 Inserts |
| Vertical Stacker Capacity (Filled Envelopes) | 500 |
| Max. sheet Size (H") | 3.5 - 14 |
| Warranty | 90 day parts and labor |
| Country of Origin | United States |
| Power Supply (Volts) | 120V |

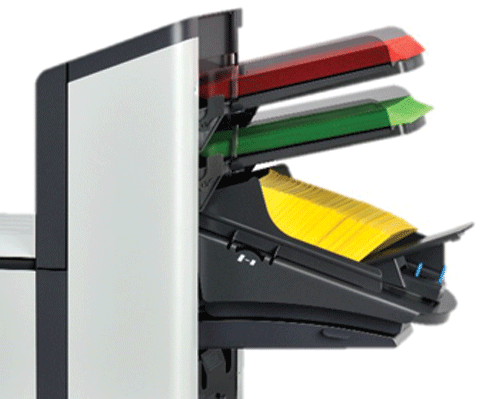

| Optional Accessories | Short Feed Trays, Production Feeder, CIS Scanner, Single or Multi-Code Reading Licenses, Productivity Package, Front or Rear Side Exit Tray and Catch Tray |
| Programmable Fold Applications | 50 |
| Programmable Fold Applications | 41 - 60 |
| Fold Types | C, V, Z, Double Parallel, no fold |
| Double Feed Detection | Yes |
| Envelope Size (W") | 6.3 - 9.7 |
| Envelope Size (H") | 3.5 - 6.35 |
| Max. sheet Size (W") | 5 - 9 |
Product Description:
The Formax FD 6210 Special 2 Folder & Inserter is a low-volume desktop inserter designed for efficient processing of documents. With a speed of up to 2200 pieces per hour and a monthly cycle of 15000-20000 pieces, this inserter offers reliability and flexibility for small businesses and offices. It features two sheet feeders and a special insert/BRE feeder, along with a high-capacity output stacker that can hold up to 500 forms.
- Capable of processing up to 2200 pieces per hour
- Monthly cycle of 15000-20000 pieces

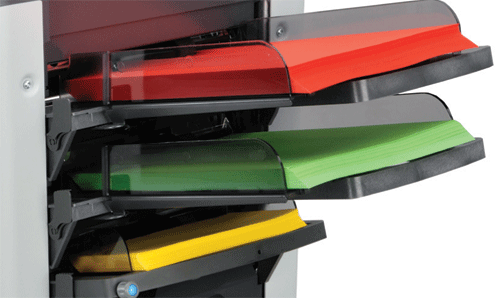

- Equipped with two sheet feeders and a special insert/BRE feeder

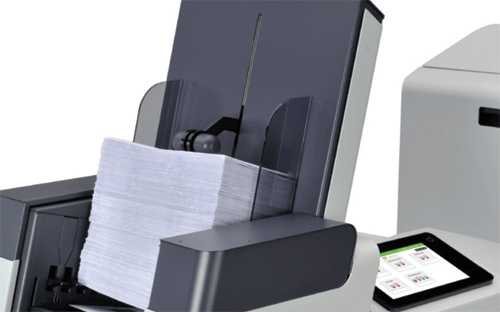

- High-capacity output stacker holds up to 500 forms
- Supports fold types of C, V, Z, Double Parallel, and no fold
- Features a 7” full-color touchscreen control panel for easy operation
- Reads OMR, 1D, and 2D barcodes printed on documents
- Includes envelope and paper sensors for user assistance
The Formax FD 6210 Special 2 Folder & Inserter is equipped with advanced technology that allows for simultaneous folding and inserting of documents. Its AutoSetTM feature enables one-touch setup for new jobs, while the eco mode puts the machine on standby when inactive for an hour. The inserter's clamshell design provides easy access to the paper path, and it can handle glossy or thicker inserts with ease.
Whether you need to process invoices, statements, or promotional materials, the Formax FD 6210 Special 2 offers the efficiency and reliability of larger machines in a compact design. Ideal for various office environments, this inserter comes with a 90-day warranty on parts and labor to ensure customer satisfaction.
Video of Formax FD 6210 Special 2 Folder & Inserter
