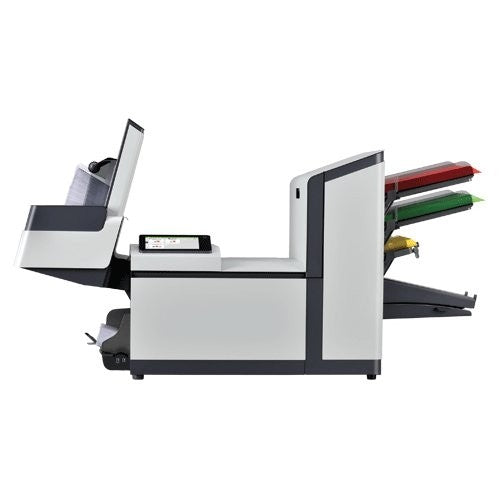

Formax FD 6210 Advanced 2 Folder & Inserter
Formax FD 6210 Advanced 2 Folder & Inserter is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Formax FD 6210 Advanced 2 Folder & Inserter
Spec Sheet: View PDF File
User Manual: View PDF File
Product Specifications
| Product Name | Formax FD 6210 Advanced 2 Folder & Inserter |
| Manufacturer | Formax |
| SKU | FD 6210-Advanced 2 |
| Dimensions (H”xW”xD”) | 36” H x 16.5” W x 49” D |
| Envelope Hopper Capacity (Envelopes) | 150 |
| Setup | Autoset, one-touch setup |
| Speed (Pieces/hr) | 2200 |
| Duty Cycle (Pieces/month) | 15000-20000 |
| Feed Stations w/ Sheet Capacity | 2 Feed Station with 325 Sheet Capacity Each and 1 BRE feeder with 50 BREs or 325 Inserts |
| Vertical Stacker Capacity (Filled Envelopes) | 500 |
| Max. sheet Size (H") | 3.5 - 14 |
| Warranty | 90 day parts and labor |
| Country of Origin | United States |
| Power Supply (Volts) | 120V |
| Optional Accessories | Short Feed Trays, Production Feeder, CIS Scanner, Single or Multi-Code Reading Licenses, Productivity Package, Front or Rear Side Exit Tray and Catch Tray |
| Programmable Fold Applications | 50 |
| Programmable Fold Applications | 41 - 60 |
| Fold Types | C, V, Z, Double Parallel, no fold |
| Double Feed Detection | Yes |
| Envelope Size (W") | 6.3 - 9.7 |
| Envelope Size (H") | 3.5 - 6.35 |
| Max. sheet Size (W") | 5 - 9 |
Product Description:

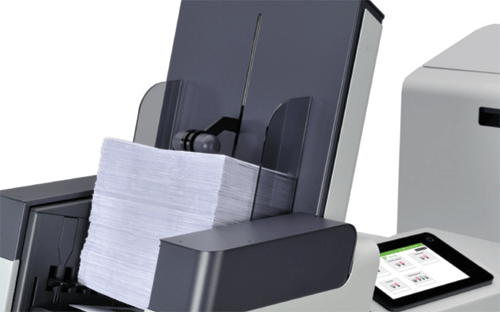

The Formax FD 6210 Advanced 2 Folder & Inserter is a high-performance machine designed for efficient folding and inserting tasks. Equipped with two sheet feeders and one insert/BRE feeder, this inserter can process up to 2000 to 2200 pieces per month, with a monthly cycle of 15000 pieces. The vertical stacker has a high capacity, holding up to 500 ready pieces for convenient retrieval.
Featuring a 7” full-color touchscreen control panel with a graphical interface, the FD 6210 is user-friendly and intuitive to operate. Paper and envelope sensors displayed on the control panel assist operators in monitoring the process effectively. The feeder and top-loading envelope hopper enable simultaneous folding and inserting, enhancing productivity.
The Formax FD 6210 supports a variety of fold types including C, V, Z, double parallel, and no fold, catering to diverse folding needs. It also reads OMR, 1D, and 2D barcodes printed on any side of a document accurately. Additionally, the eco mode feature puts the device to sleep after an hour of inactivity, promoting energy efficiency.
The Advanced 2 model within the FD 6210 series is equipped with advanced folding and inserting technology, offering user-friendly features for seamless operation. With its AutoSetTM function for one-touch setup of new jobs and the ability to store 50 programmable jobs, this inserter streamlines workflow and enhances efficiency.
Overall, the Formax FD 6210 Advanced 2 Folder & Inserter is a compact and reliable solution for businesses seeking accuracy and productivity in their folding and inserting processes. Backed by a 90-day warranty on parts and labor, this inserter is an excellent choice for small businesses looking to streamline their mailing operations.
Video of Formax FD 6210 Advanced 2 Folder & Inserter
