Formax  |  SKU: FD 6104

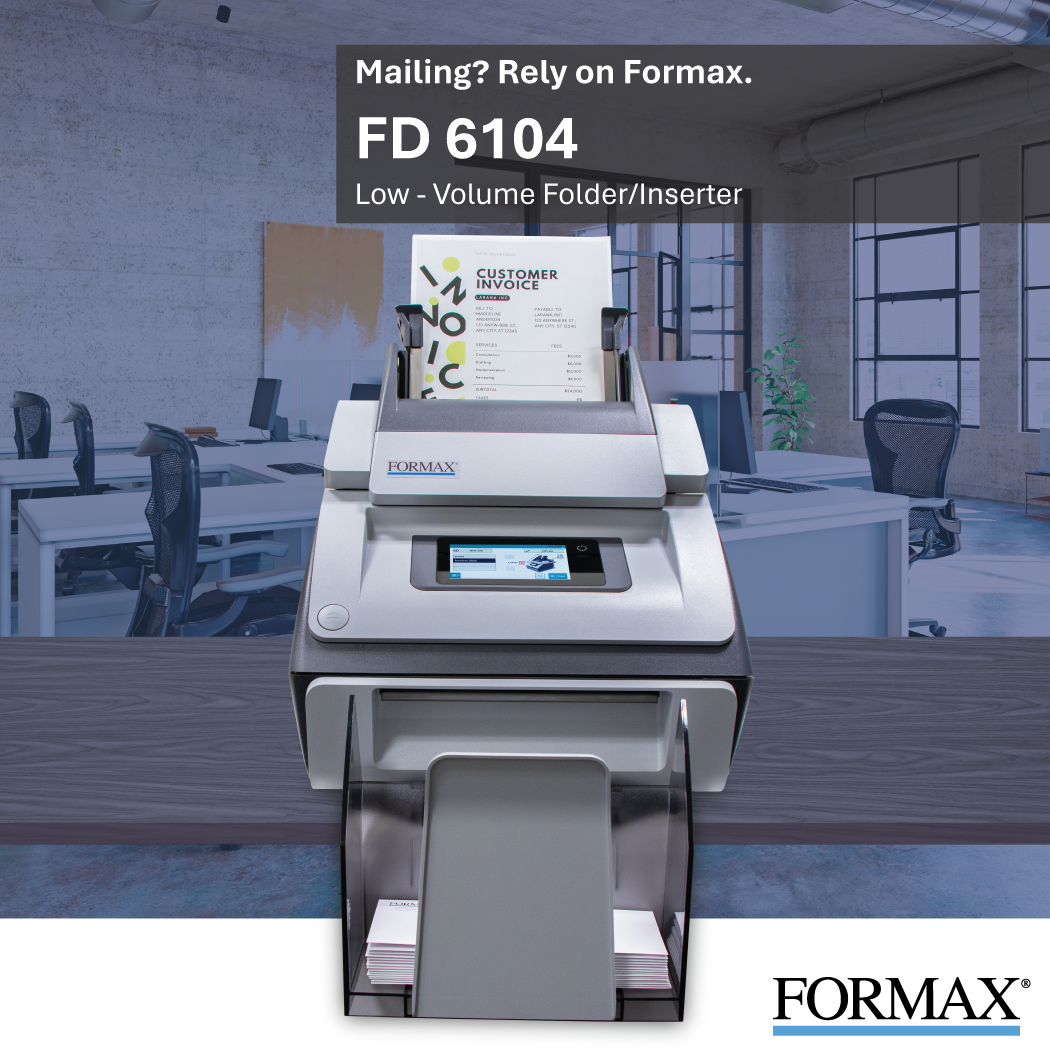

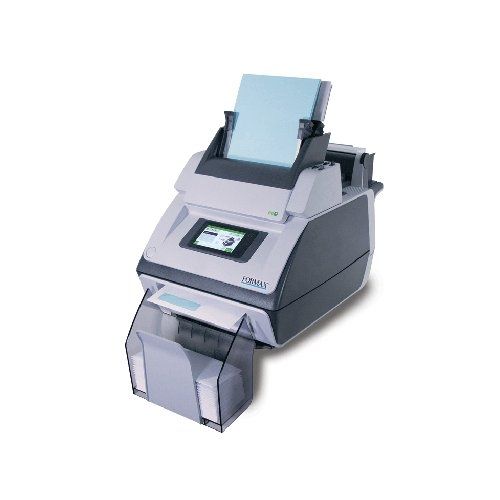

Formax FD 6104 Low-Volume Automatic Folder and Inserter

$7,350.00 $8,452.50
Shipping calculated at checkout.

Spec Sheet: View PDF File

Product Specifications
Product Name Formax FD 6104 Low-Volume Automatic Folder and Inserter
Manufacturer Formax
SKU FD 6104

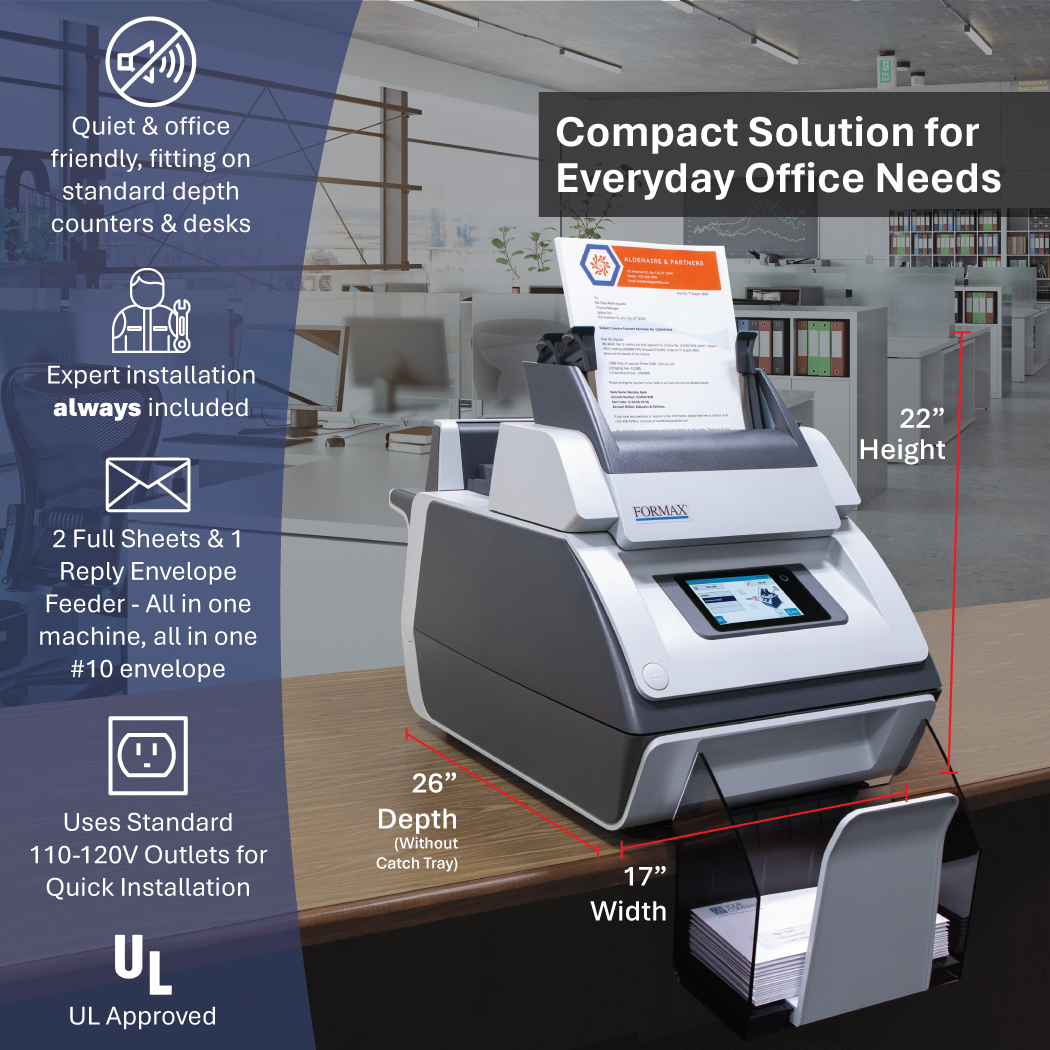

Dimensions (H”xW”xD”) 22" x 17" x 26"
Envelope Hopper Capacity (Envelopes) 100
Setup Autoset, one-touch setup
Speed (Pieces/hr) 1350
Duty Cycle (Pieces/month) 5000
Feed Stations w/ Sheet Capacity Two fully-automatic sheet feeders and one automatic insert/BRE feeder with up to 100 sheet capacity
Max. sheet Size (H") 7 - 14
Warranty 90 day parts and labor
Country of Origin United States
Power Supply (Volts) 120 Volts AC 50/60Hz
Optional Accessories Tri-Fold Kit
Programmable Fold Applications 15
Programmable Fold Applications 1 - 20
Fold Types C, V, Double Parallel, no fold
Double Feed Detection Yes
Envelope Size (W") 8.8 - 9.5
Envelope Size (H") 4.1 - 6.5
Max. sheet Size (W") 5.6 - 8.9
Product Description:

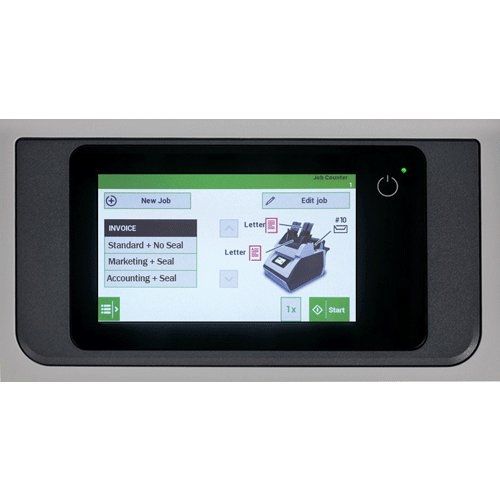

The Formax FD 6104 Low-Volume Automatic Folder and Inserter is a top-of-the-line solution for businesses seeking efficient and precise folding and inserting capabilities. With a 5” color touchscreen interface, this inserter can produce up to 1350 filled envelopes per hour, making it a valuable asset for streamlining mail processing operations.

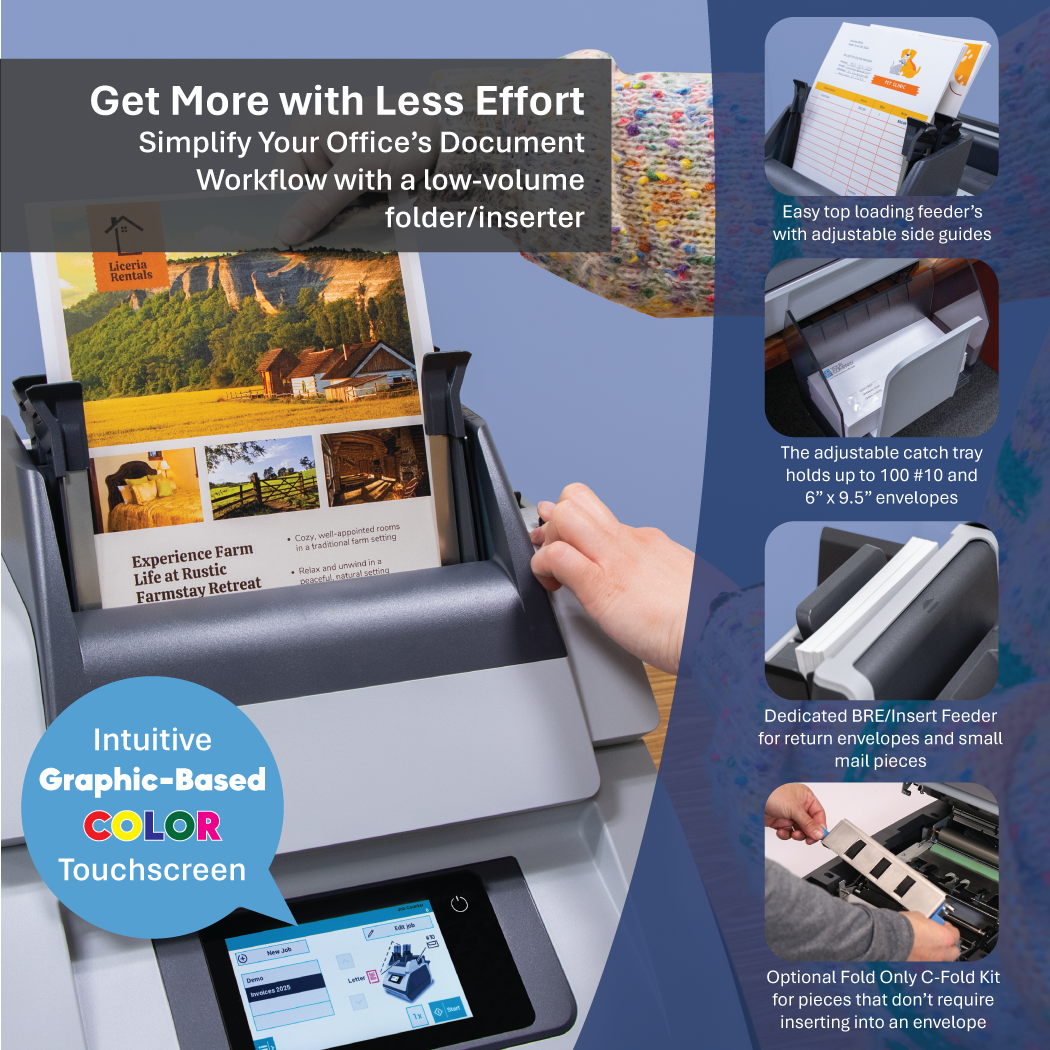

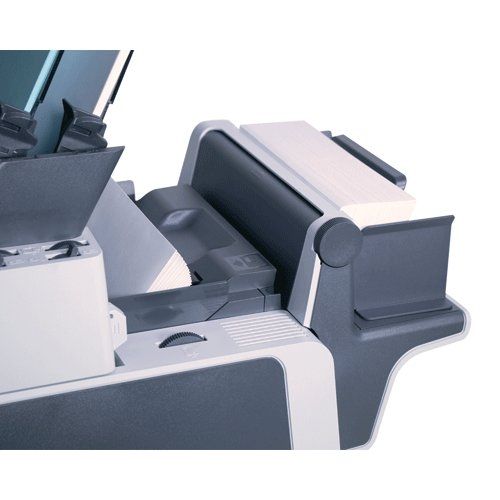

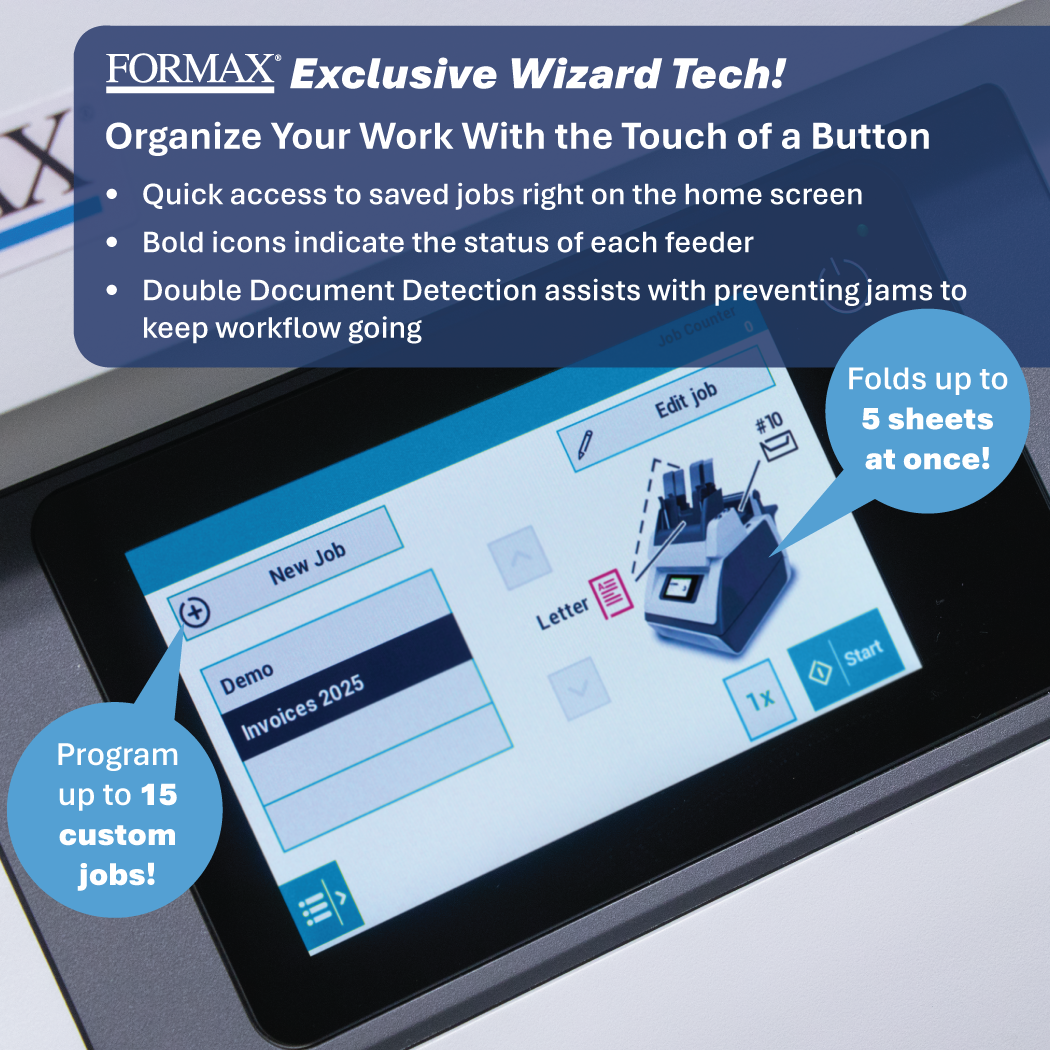

Equipped with 15 programmable jobs and 2 ½ stations, the FD 6104 can handle 1-2 sheets plus Business Reply Envelopes (BREs) with ease. The top-loading feeder with adjustable side guides ensures smooth paper feeding, while the electrotechnical sensors guarantee document integrity throughout the process.


  • Supporting fold types of C, V, Double Parallel, and no fold, this inserter maximizes flexibility in document processing.
  • With a folding capacity of up to 5 sheets and a resettable counter for accurate envelope counts, the FD 6104 ensures efficient and error-free operations.
  • Featuring an ECO mode for energy savings and a daily mail mode for inserting stapled sets, this inserter caters to diverse user needs.
  • The cascade mode allows seamless operation by automatically switching feeders when needed, maximizing productivity.

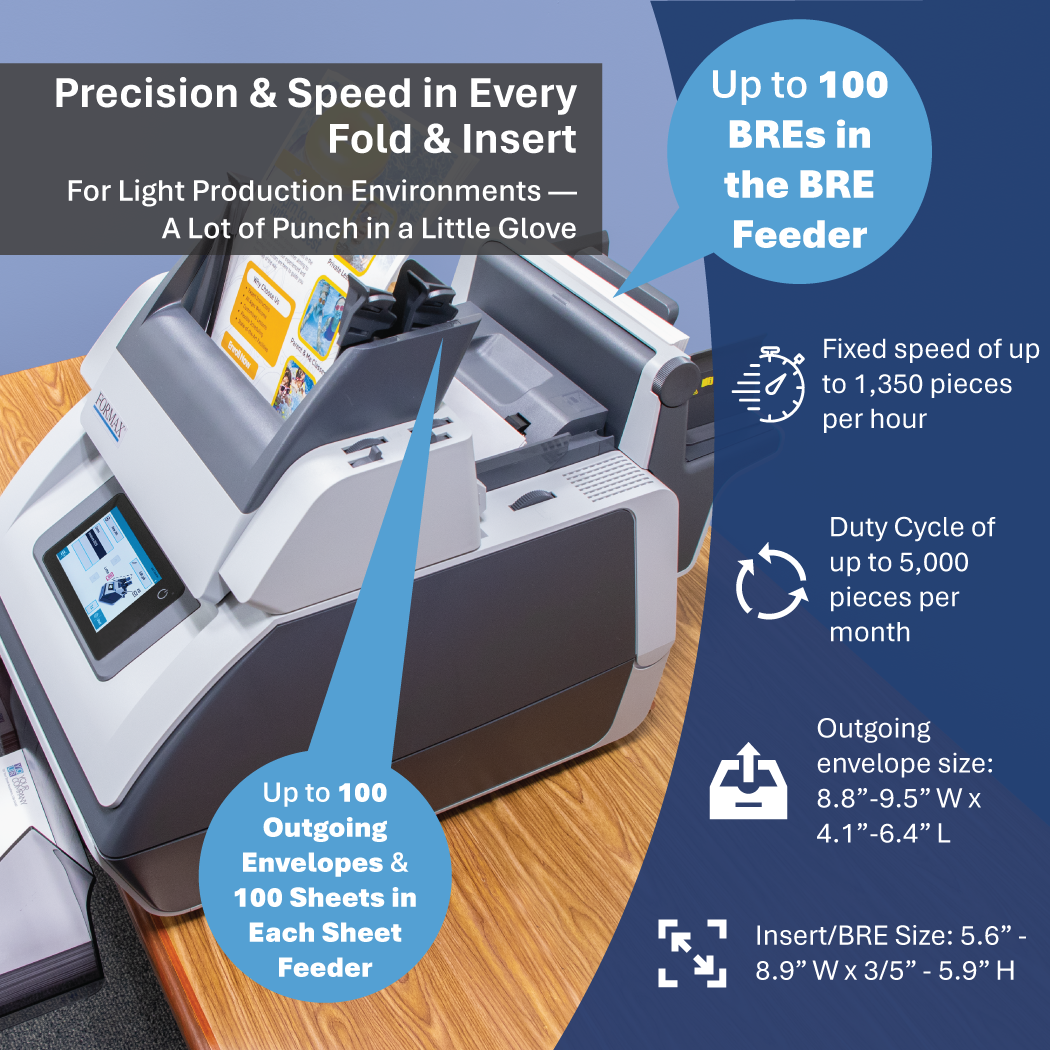

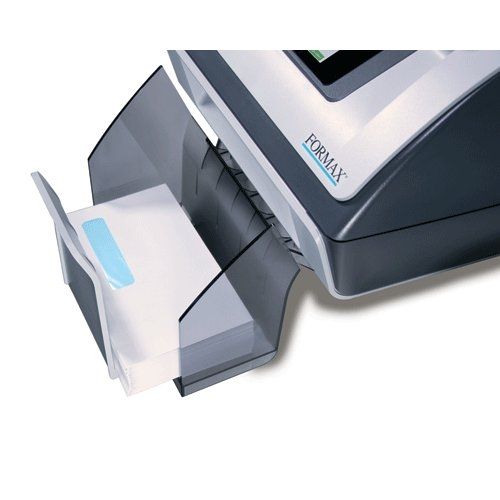

  • The inserter's total hopper capacity of up to 200 sheets and a catch tray capable of holding 100 envelopes further enhance its usability.

Designed as an entry-level inserter, the FD 6104 is user-friendly and eco-friendly, making it suitable for offices of any size. With a monthly cycle of 5000 envelopes and the ability to save 15 jobs for quick setup, this inserter boosts workplace efficiency and eliminates manual labor costs.


Ideal for folding and inserting documents or solely folding sheets, the Formax FD 6104 Inserter is a reliable and efficient solution for businesses looking to streamline their mailing processes. Backed by a 90-day warranty on parts and labor, this inserter offers peace of mind and consistent performance.
