Formax  |  SKU: FD 4170

Formax FD 4170 Cut-Sheet Burster

Shipping calculated at checkout.

Brochure View PDF File

Product Specifications
Product Name Formax FD 4170 Cut-Sheet Burster
Manufacturer Formax
SKU FD 4170
Dimensions (H”xW”xD”) 9 x 32 x 16
Min Non-Slitting form size (WxL) 4 x 5
Max non-slitting form size (W x L) 11 x 17
Duty Cycle (Hours/Day) 12
Paper Weight (lbs.) 120
Feed Tray Capacity 400
Category Medium-Volume Cut-Sheet Burster
Variable Speed (sheets/min) 140
Waste Bin No
Power Supply (Volts) 120, 60
User Type Commercial
Product Description:

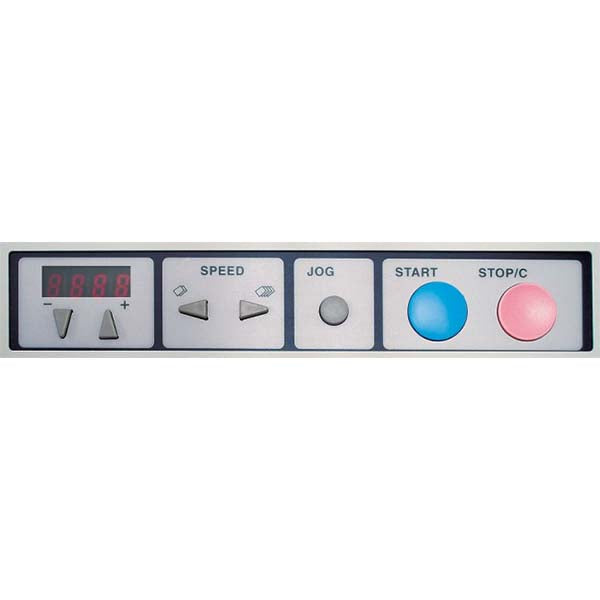

The Formax FD 4170 Cut-Sheet Burster offers efficient automatic sheet bursting operation, saving valuable time compared to manual tasks. With 5-level speed adjustments ranging from 42 to 140 sheets per minute, this burster provides flexibility in output volume. The 4-digit LCD Counter visually tracks the process progress, ensuring accuracy and control.

  • Wide feed tray accommodating up to 400 sheets for continuous operation without frequent reloading.
  • Unique FD 4170 three-tire top-loading feed system ensures precise feeding and processing of forms.
  • Supports paper stocks up to 110# index (175gsm) and paper sizes up to 11” x 17” for versatile use.
  • Adjustable side guides enable easy processing of forms with varying widths.
  • Intelligently configurable with programmable job settings and last job memory feature for user convenience.

The FD 4170 Cut-Sheet Burster simplifies the task of cutting perforated forms into individual sheets, streamlining mail processing and organization. Its advanced features, including the LCD counter and programmable settings, make it a valuable asset for businesses dealing with multiple forms and documents that require efficient processing.

Video of Formax FD 4170 Cut-Sheet Burster
