Spec Sheet: View PDF File
Product Specifications
Product Name | Formax FD 404A1 High Capacity Air Jogger |
Manufacturer | Formax |
SKU | FD 404A1 |
Dimensions (H”xW”xD”) | 54 x 21 x 18 |
Max. Sheet Size (W"x L") | 12 x 18 |
Sheet Capacity | 940 |
Operation Mode | Foot Pedal |
Min. Sheet Size (W"x L") | 5 x 7 |
Warranty | 90 day limited warranty on parts, excluding wearables |
Country of Origin | United States |
User Type | Commercial |
Additional Features | User-Friendly Control Panel, Operating Modes, Tilting Jog Bin |
Bin Size (L"xW"xD") | 0 x 20.37 x 3.75 |
Speed (vibrations/min) | 3,000 |
Product Description:

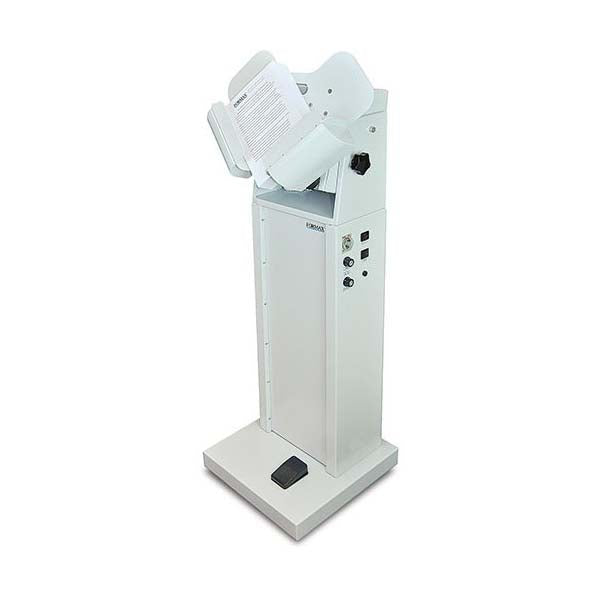

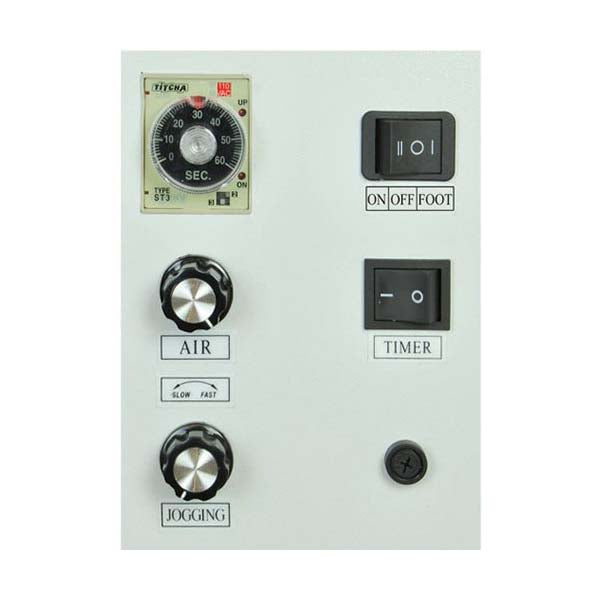

The Formax FD 404A1 high capacity air jogger is a versatile machine designed for print shops and office environments. It offers a unique all-in-one solution by aligning, drying, and removing static from printed sheets in a single step, ensuring top-notch results. The jogger features a user-friendly control panel for easy operation, while the foot pedal control allows for efficient two-handed loading and unloading. With a variable speed control of up to 3,000 vibrations per minute and adjustable air pressure of up to 29,000 rpm, the FD 404A1 significantly reduces jogging time.
- The V-shaped bin of the jogger can be adjusted from vertical to horizontal to accommodate various paper stack requirements, including large format and crisscross stacked piles.
- Capable of jogging up to 940 sheets, the FD 404A1 includes a 60-second countdown timer for unattended operation, enhancing productivity.
- Three operating modes - Vibrate and Air, Air Only, and Vibrate Only - provide flexibility for different jogging needs.
With a maximum sheet size capacity of 12" x 18" and a foot pedal operation, this high-capacity jogger caters to a range of media sizes from 5" x 7" to 12" x 18". Its durable construction and compact design make it suitable for commercial use, offering a reliable solution to improve operational efficiency in any office or print shop setting.
