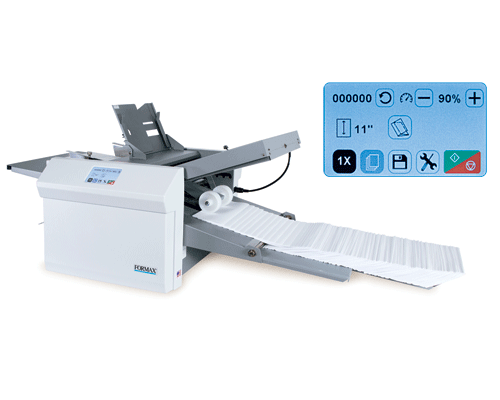

Formax FD 38Xi Fully Automatic Document Folder
Formax FD 38Xi Fully Automatic Document Folder is backordered and will ship as soon as it is back in stock.
♻️ Orders above $1,000 support our global reforestation initiative. Learn about our sustainability commitment →
Couldn't load pickup availability
Spec Sheet: View PDF File
Product Specifications
| Product Name | FD 38Xi Fully Automatic Document Folder |
| Manufacturer | Formax |
| SKU | FD 38Xi |
| Dimensions - Closed (L"xW"xH") | 33" x 20" x 19" |
| Dimensions - Extended (L"xW"xH") | 60" x 20" x 19" |
| Speed (Sheets/Hour) | Up to 17,000 (based on 11" Z-Fold) |
| Hopper Capacity | Up to 500 sheets (20#) |
| Pre-Set Folds | C, V, Z, Gate, Fold Out, Double Parallel |
| Custom Folds | Up to 36 |
| Paper Sizes | Min: 3.5" x 5" / Max: 12.25" x 18" |

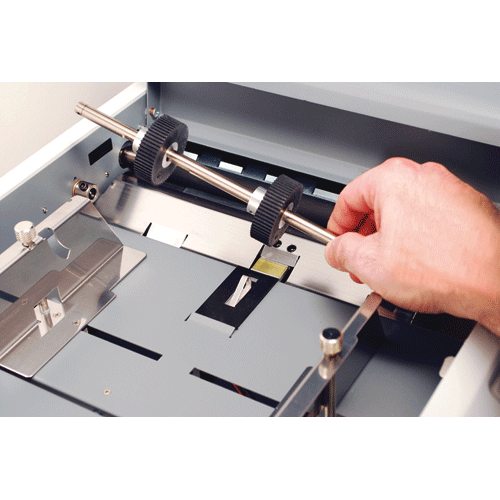

| Feed Type | Drop-in three-roller feed system |
| Multi-Sheet Feeder | Dedicated (Standard) - up to 4 sheets |
| Weight | 73 lbs (33kg) |
| Power | 110-240VAC 50/60 Hz |
| Certifications | UL & CE approved |
| Search Terms | Formax FD 38Xi, FD 38Xi, Document Folder, Paper Folder, Automatic Folder |
Product Description:
The Formax FD 38Xi Fully Automatic Document Folder delivers high-performance folding at up to 17,000 sheets per hour. Fully automated fold plates provide one-touch setup of 18 pre-programmed or 36 custom folds that can be stored into memory. The FD 38Xi folds up to 500 sheets in as fast as 2 minutes and holds the folded pieces on its patented Telescoping Conveyor System with AutoStack™ fully-automated stacker wheels that eliminate the need to move them by hand when switching paper types.
The large full-color touchscreen control panel utilizes easily-recognized symbols in place of text, allowing operators to walk up and start folding with little to no instruction. The Dedicated Multi-Sheet Feeder comes standard and allows up to 4 stapled or unstapled sheets to be folded at one time. The FD 38Xi can also be combined with the optional V-Stack36i Vertical Stacker, which stacks up to 22" of folded documents for further processing. Built with a drop-in three-roller feed system, noise reduction technology, and UL & CE safety certifications, the FD 38Xi is the premium choice for offices, mailrooms, and print shops.
- Processes up to 17,000 sheets per hour

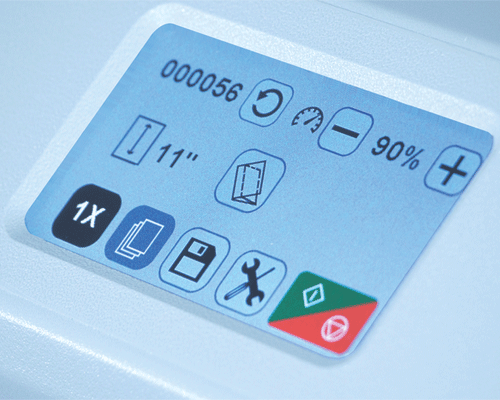

- Color touchscreen control panel
- 18 pre-programmed and 36 custom folds

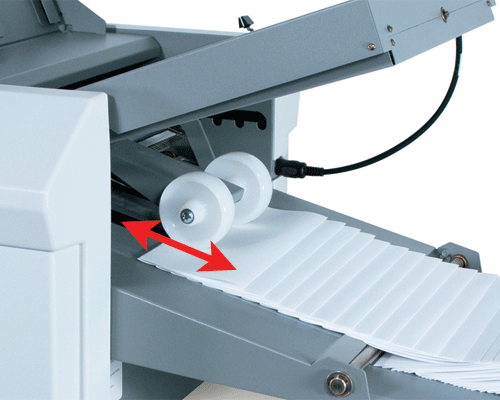

- Telescoping outfeed conveyor with AutoStack™

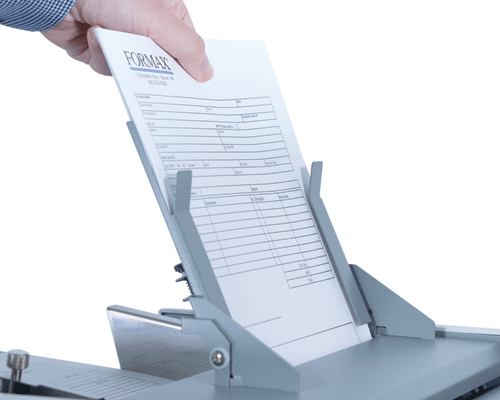

- Dedicated multi-sheet feeder (standard)
- Handles paper up to 12.25" x 18"
