Formax  |  SKU: FD 386

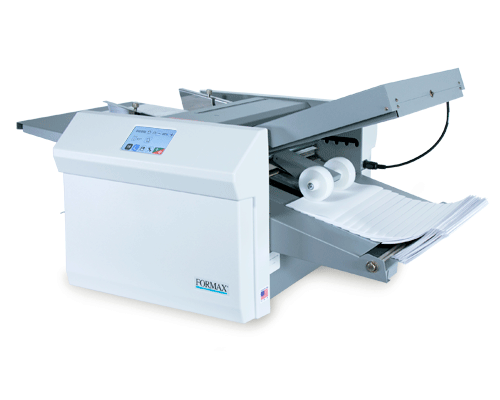

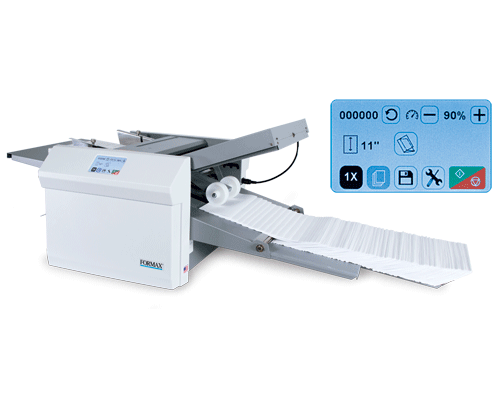

Formax FD 386 Automatic Document Folder

$5,125.72 $6,368.75
Shipping calculated at checkout.

♻️ Orders above $1,000 support our global reforestation initiative. Learn about our sustainability commitment →

Spec Sheet: View PDF File

Product Specifications
Product Name FD 386 Automatic Document Folder
Manufacturer Formax
SKU FD 386
Dimensions - Closed (L"xW"xH") 33" x 20" x 19"
Dimensions - Extended (L"xW"xH") 60" x 20" x 19"
Speed (Sheets/Hour) Up to 17,000 (based on 11" Z-Fold)
Hopper Capacity Up to 500 sheets (20#)
Pre-Set Folds C, V, Z, Gate, Fold Out, Double Parallel
Custom Folds Up to 27
Paper Sizes Min: 3.5" x 5" / Max: 12.25" x 18"

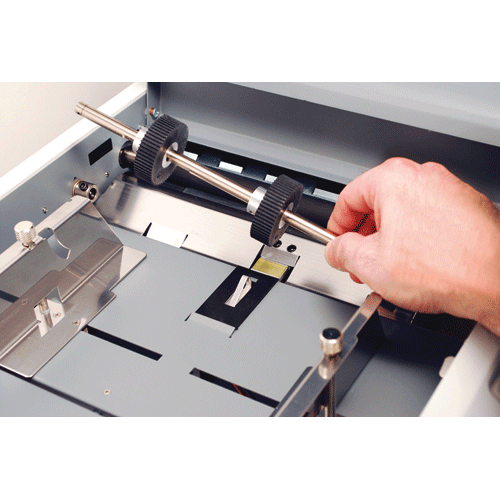

Feed Type Drop-in three-roller feed system
Weight 73 lbs (33kg)
Power 110-240VAC 50/60 Hz
Certifications UL & CE approved
Search Terms Formax FD 386, FD 386, Document Folder, Paper Folder, Automatic Folder
Product Description:

The Formax FD 386 Automatic Document Folder delivers high-performance folding at up to 17,000 sheets per hour. Fully automated fold plates provide one-touch setup of 18 pre-programmed or 27 custom folds that can be stored into memory. The FD 386 folds up to 500 sheets in as fast as 2 minutes and holds the folded pieces on its patented Telescoping Conveyor System with adjustable stacker wheels for neat, organized output.

The large full-color touchscreen control panel utilizes easily-recognized symbols in place of text, allowing operators to walk up and start folding with little to no instruction. The optional patented Multi-Sheet Feeder allows up to 4 stapled or unstapled sheets to be folded at one time. The FD 386 can also be combined with the optional V-Stack36i Vertical Stacker, which stacks up to 22" of folded documents for further processing. Built with a drop-in three-roller feed system, noise reduction technology, and UL & CE safety certifications, the FD 386 is an excellent choice for offices, mailrooms, and print shops.

    • Processes up to 17,000 sheets per hour

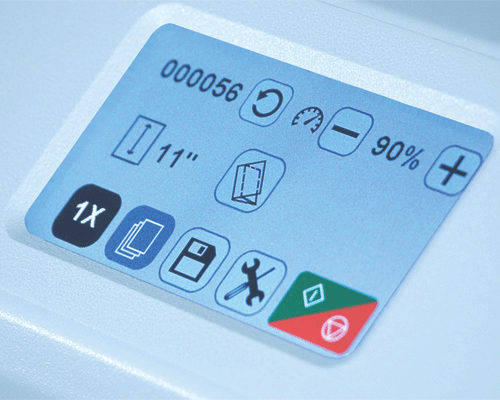

    • Color touchscreen control panel
    • 18 pre-programmed and 27 custom folds
    • Telescoping outfeed conveyor
    • Handles paper up to 12.25" x 18"

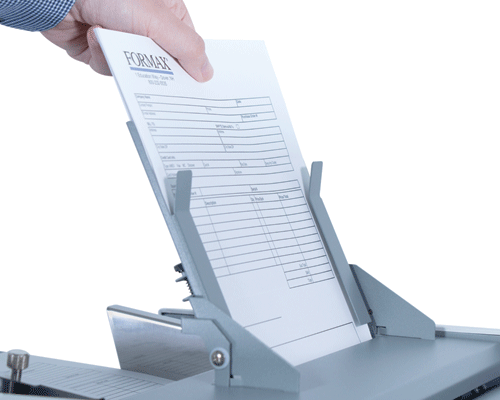

    • Optional multi-sheet feeder for up to 4 sheets

Video of Formax FD 386 Automatic Document Folder
