Formax FD 346 Tabletop Document Folder
Spec Sheet: View PDF File
User Manual: View PDF File
Product Specifications
| Product Name | Formax FD 346 Tabletop Document Folder |
| Manufacturer | Formax |
| SKU | FD 346 |

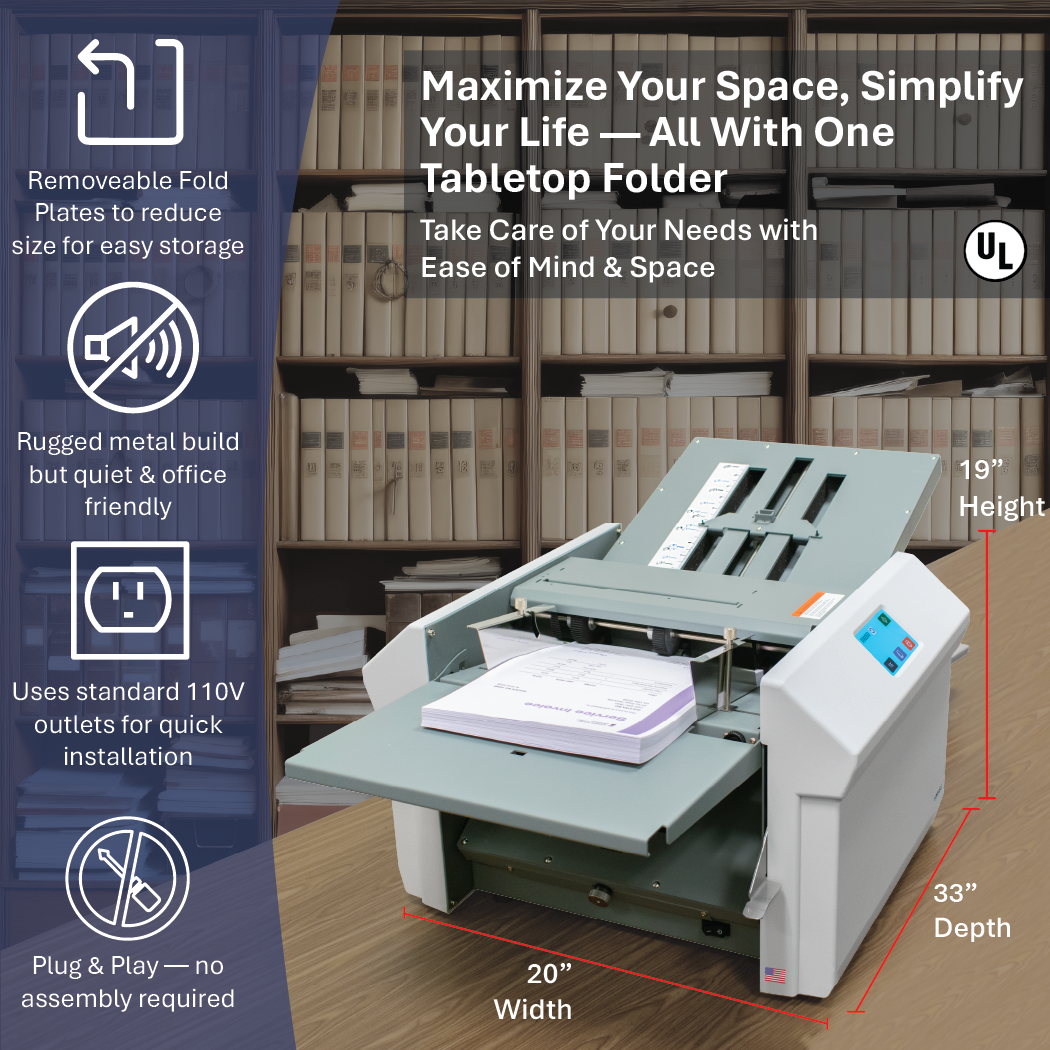

| Dimensions (H”xW”xD”) | 19” H x 20” W x 33” D (Closed) 19” H x 20” W x 60” D (Fully Extended) |
| Fold Type | Letter Fold, Z-Fold, Half-Fold, Fold Out, Gate-Fold, Double Parallel Fold |
| Paper Weight (Gsm) | 75 |
| Paper Size (W" x L") | 3.5” W x 5” L - 12.25” W x 18” L |
| Category | Drop-In Feed |
| Type of Folder | Auto-Feed, Manual Set-up |
| Fold Selection Setup | Manual |
| Speed (Sheets/Hour) | 15,500 sheets per hour |
| Automated Feed | Yes |
| Warranty | 90 day on parts excluding wearables |
| Country of Origin | United States |
| Power Supply (Volts) | 110VAC, 50/60 Hz |
| User Type | Commercial |
| Feed Tray Capacity | 500 |
Product Description:

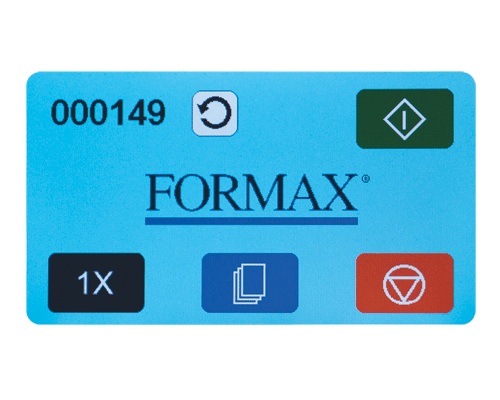

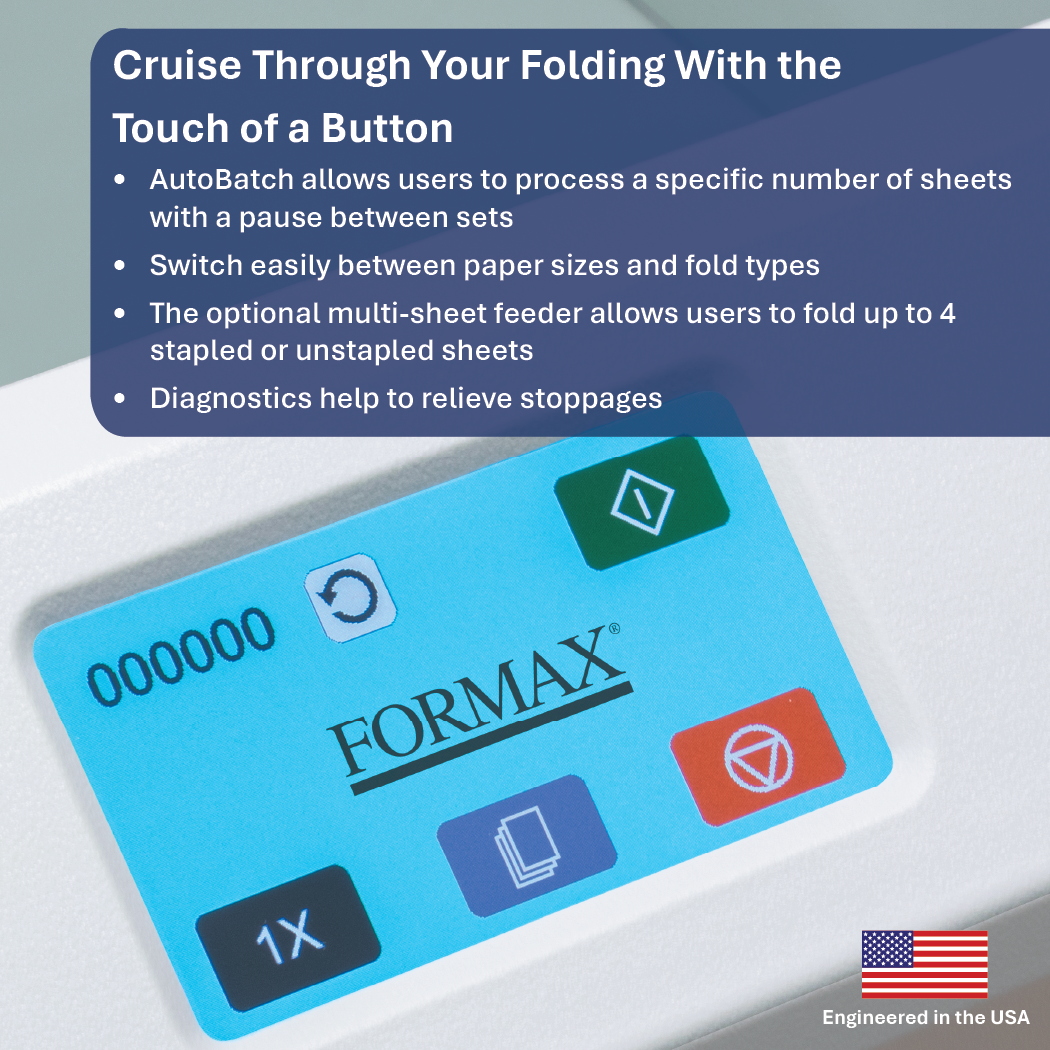

Formax FD 346 Tabletop Document Folder is a reliable and user-friendly device designed for fast folding applications in small workplaces. Featuring a graphics-based touchscreen control panel with internationally recognized symbols, this folder offers easy operation for all users. With a processing speed of up to 15,500 applications per hour, it can efficiently handle various folding tasks.

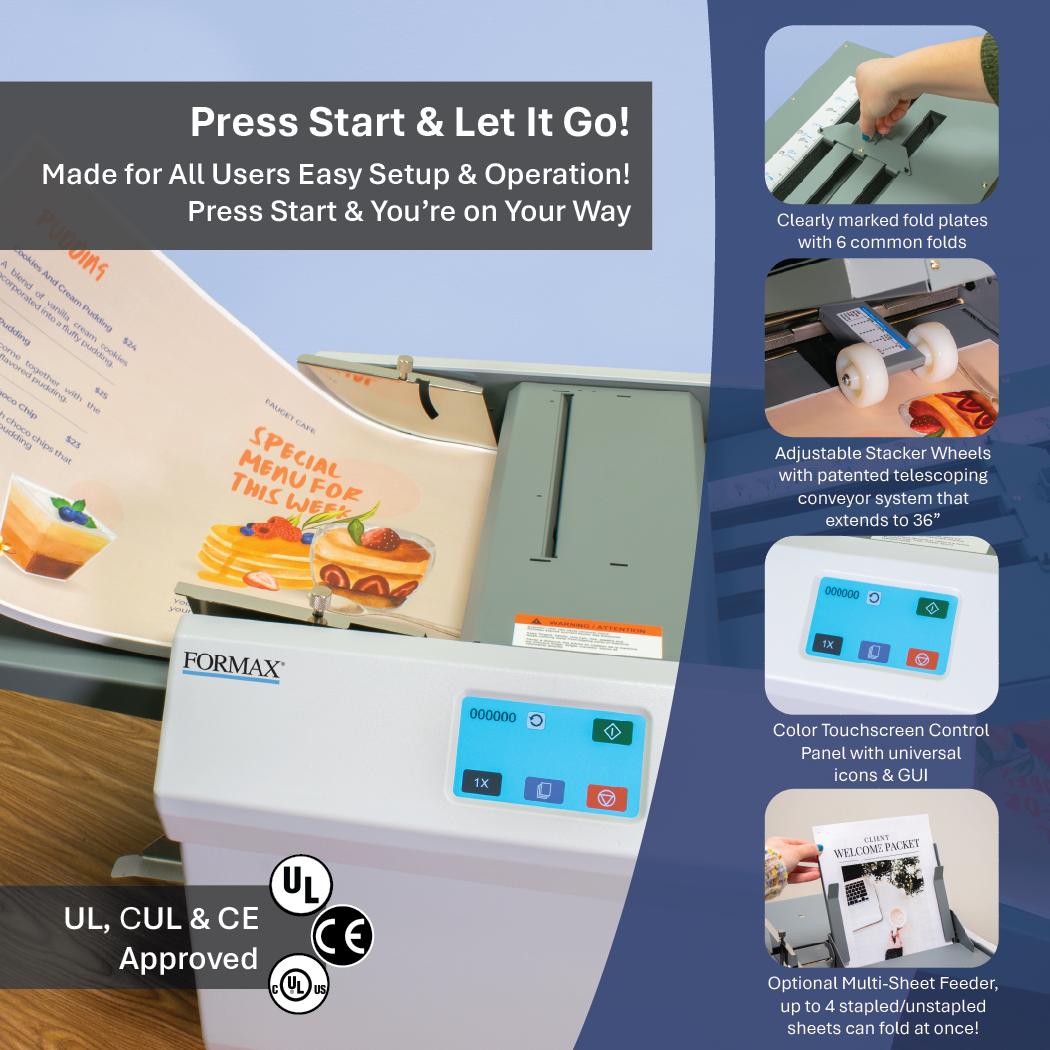

- Six pre-marked fold plates allow for quick and easy operations, while fine-tuning knobs at the end of each plate enable precise folding adjustments.

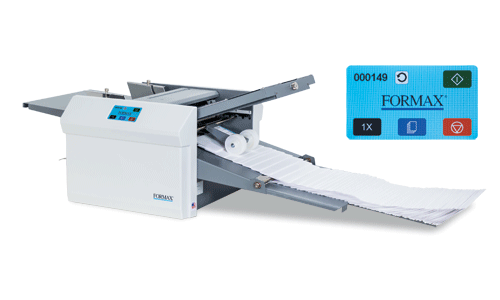

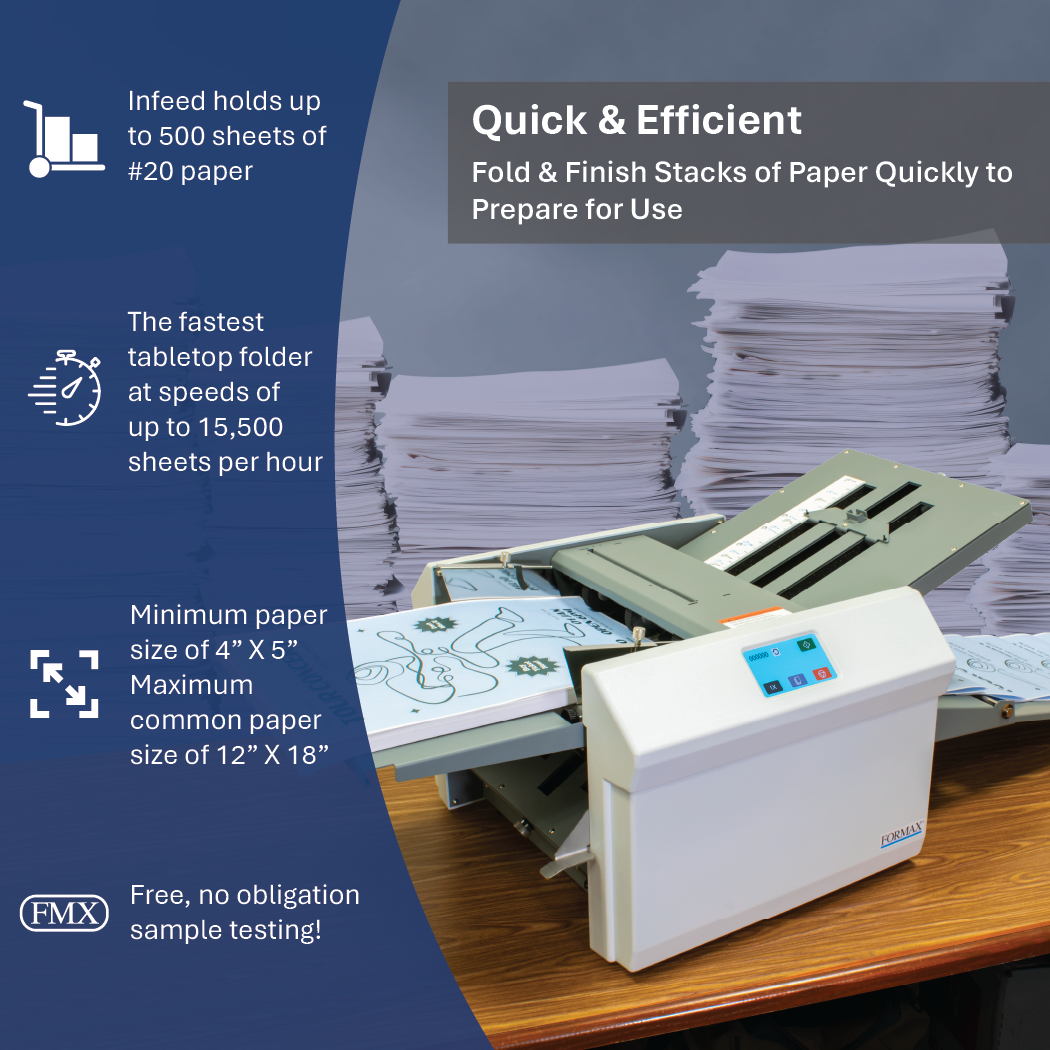

- The machine can load up to 500 sheets in the hopper, requiring minimal attention during processing, and the telescoping output stacker can be extended to accommodate 500 forms.

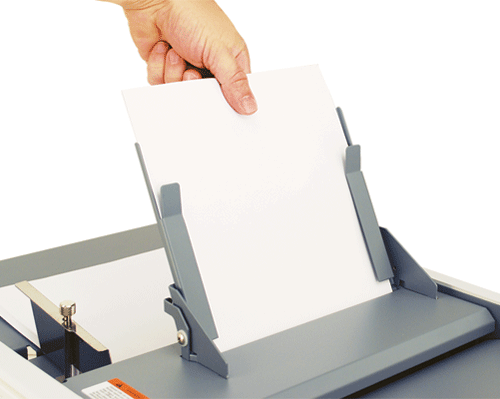

- The multi-sheet feeder permits folding of 4 unstapled or stapled sheets simultaneously, enhancing productivity.

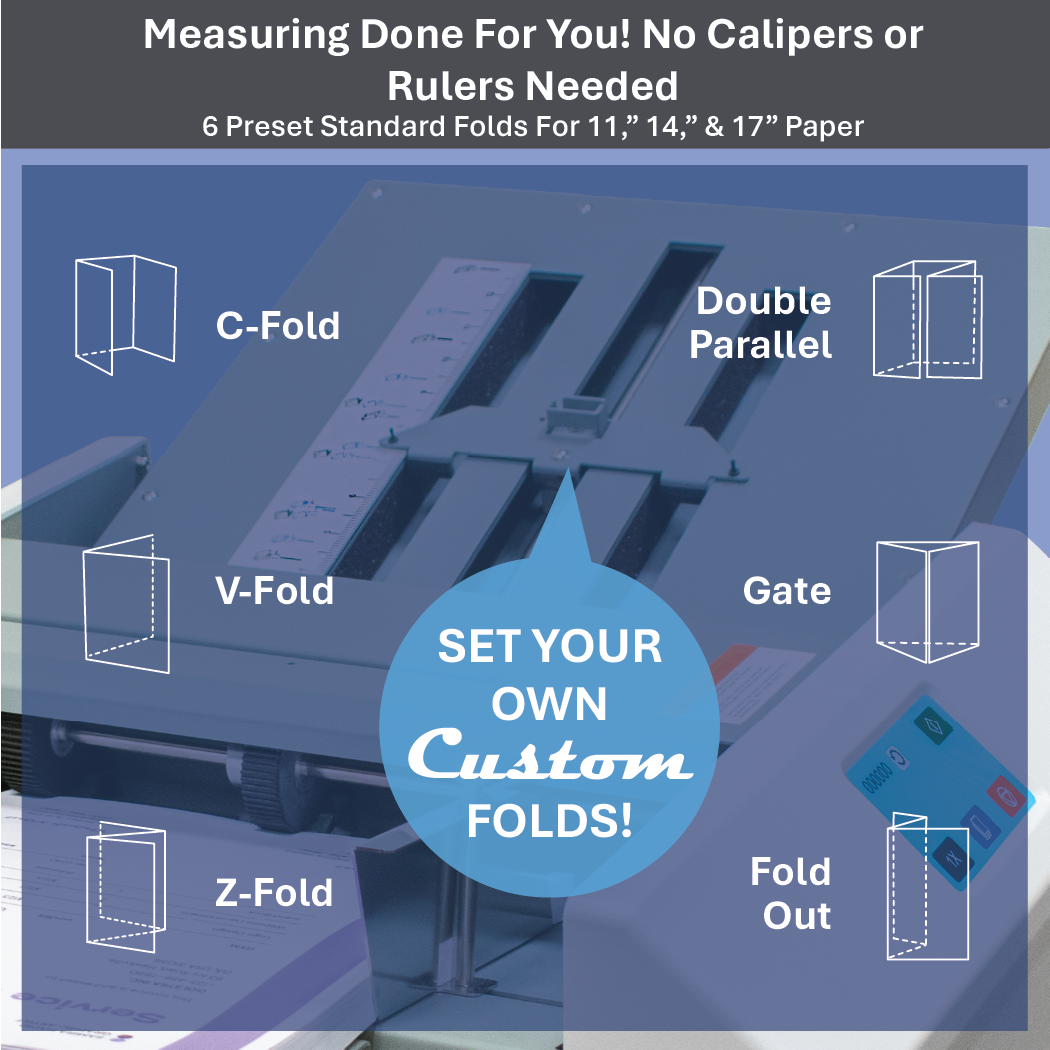

- Capable of processing paper sizes ranging from 12” to 18”, the FD 346 supports various fold types such as letter, zig-zag, half, gate, fold out, and double parallel.
- Manufactured in the U.S.A, this desktop office folder is durable and efficient, making it an ideal choice for businesses that require regular paper folding.
With its innovative touchscreen control panel, the Formax FD 346 offers a unique folding experience. The machine's simple setup and operation make it suitable for any environment where paper folding is a common task. Additionally, the 90-day warranty on parts (excluding wearables) provides added peace of mind for users.
