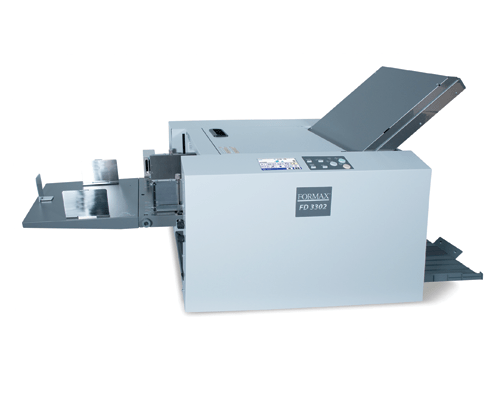

Formax FD 3302 Air-Suction Document Folder
Formax FD 3302 Air-Suction Document Folder is backordered and will ship as soon as it is back in stock.
♻️ Orders above $1,000 support our global reforestation initiative. Learn about our sustainability commitment →
Couldn't load pickup availability
Brochure View PDF File
Product Specifications
| Product Name | FD 3302 Air-Suction Document Folder |
| Manufacturer | Formax |
| SKU | FD 3302 |
| Dimensions (L"xD"xH") | 53.3" x 23.2" x 24.2" |
| Speed (Sheets/Hour) | Up to 18,600 (11", single fold) |
| Infeed Capacity | Up to 1.96" high, 625 sheets (64gsm) |
| Pre-Set Folds | C, Z, Half, Fold Out, Double Parallel, Gate, Custom |
| Custom Folds | Up to 30 |
| Paper Sizes | Min: 4.73" x 7.2" / Max: 12.2" x 25.5" |
| Paper Weight | Uncoated: 52.3 - 157gsm / Coated: 73.3 - 157gsm / Max: 230gsm (single fold) |
| Feed Type | Air suction belt |
| Double Feed Detection | Optical and ultrasonic sensors |
| Weight | 157 lbs (71kg) |
| Power | 110V-240, 50/60 Hz |
| Search Terms | Formax FD 3302, FD 3302, Air Suction Folder, Document Folder, Paper Folder |
Product Description:
Formax FD 3200 air suction folder presents a comprehensive solution to offices regarding neat and professional-looking paperwork. It comes with numerous useful features that facilitate customers much better than other products.
FD 3200 paper folder processes 15,600 sheets per hour and its hopper can hold 625 sheets at one time so no operator needs to constantly supervise this machine and spend time loading sheets every few seconds. It has an automatic adjustment system to adjust its feeds to any paper size from 7.17” x 4.73” to 18” x 12.24”. This includes the input as well as the output feed where stacking is done. Additionally, paper may weigh up to 230gsm but FD 3200 does not lose its amazing folding abilities and still produce a perfectly folded sheet.
Formax FD 3200 has a very user-friendly LCD display-assisted control panel. Users may use it to select from the 6 pre-programmed, commonly used folds or change the various settings. For better customizability, the machine’s memory can store up to 20 custom folds that meet individual requirements of customers. Another useful feature is that the air suction system, which expertly frees the input stack of charge, can be changed as well. For certain odd paper sizes and weights, the operator may change air flow and fan speed to maximize performance.
With loads of unique qualities and unparalleled performance, Formax FD 3200 air suction folder is surely a great value for one’s money.
