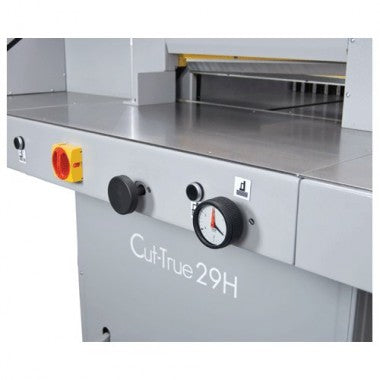

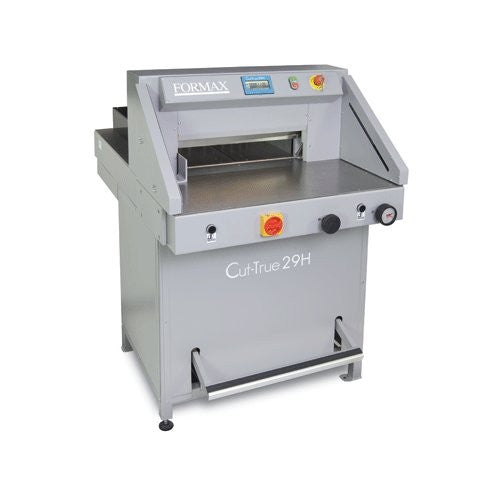

Formax Cut True 29H Hydraulic Guillotine Paper Cutter
Spec Sheet: View PDF File
Product Specifications
| Product Name | Formax Cut True 29H Hydraulic Guillotine Paper Cutter |
| Manufacturer | Formax |
| SKU | Cut-True 29H |
| Dimensions (H”xW”xD”) | 49.2 x 36.75 x 53.2 49.2 x 61.5 x 53.2 (w/optional side tables) |
| Length Behind Blade (Inches) | 20.5 |
| Narrow Cut (Inches) | 2.36 (w/ False Clamp) 1.18 (w/o False Clamp) |
| Cutting Width (inches) | 20.5 |
| Sheet Capacity | 800 |
| Operation | Hydraulically Operated |
| Type of cutter | Floor Stand Guillotine |
| Cutting Height (Inches) | 3.15 |
| Blade Drive | Hydraulic |
| Paper Clamp | Automatic Hydraulic |
| Back Gauge Setting | Fully Programmable |
| Warranty | 90 day limited warranty |
| Country of Origin | United States |
| Power Supply (Volts) | 220V, 60Hz, 20A dedicated line, NEMA 6-20P |
| User Type | Commercial |
| Optional Accessories | Wide Side Tables (Pair), Replacement Blade (29-10), Replacement Cutting Sticks, pkg of 8 (29-20) |
| Applications | Print Shops, In-Plant Finishing Operations |
| Cutting Material | Paper |
| LED Laser Cut Line | Yes |
| Safety Feature | Infrared Light beam safety curtain shuts down operation if the plane is interrupted |
Product Description:

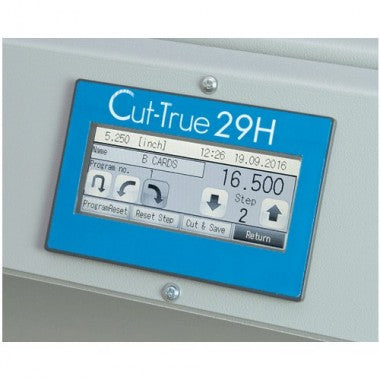

The Formax Cut-True 29H Hydraulic Guillotine Paper Cutter is designed for cutting paper stacks up to 20.5" wide and 3.15" high with precision and efficiency. Its user-friendly touchscreen control panel, adjustable back gauge, and programmability for up to 100 jobs ensure easy operation and productivity. The infrared safety curtain immediately halts operation upon any interruption, maintaining a safe work environment.
Key Features:

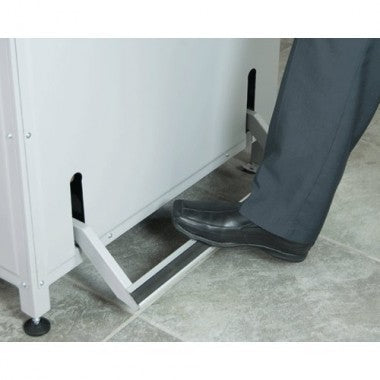

- Foot pedal pre-clamp for aligning paper stacks accurately
- Bright LED Cutting Line for clear cutting point visibility
- Fine-Tuning Knob for precise adjustments
- Anti-friction work table for smooth handling of large paper stock
- False Clamp for protecting sensitive paper stock
- Automatic blade return for flexible cutting
- External blade depth adjustment for convenience
- Blade change safety tool for easy blade replacement
- Wooden paper push tool for stack stability
- Main switch and safety key lock for enhanced security
With a cutting accuracy of 0.1mm on paper stacks up to 80mm thick, this hydraulic paper cutter ensures professional results without the need for expert assistance. The Formax 29H Guillotine Cutter combines efficiency with precision, making it an ideal choice for print shops and in-plant finishing operations seeking high-quality cutting solutions.
