Spec Sheet: View PDF File
Product Specifications
Product Name | Formax Cut True 29A Automatic Guillotine Paper Cutter |
Manufacturer | Formax |
SKU | Cut-True 29A |
Dimensions (H”xW”xD”) | 49.2 x 36.75 x 53.2 49.2 x 61.5 x 53.2 (w/optional side tables) |
Length Behind Blade (Inches) | 20.5 |
Narrow Cut (Inches) | 1.6 (w/ False Clamp) 0.98 (w/o False Clamp) |
Cutting Width (inches) | 20.5 |
Sheet Capacity | 800 |
Operation | Automatic |
Type of cutter | Floor Stand Guillotine |
Cutting Height (Inches) | 3.15 |
Blade Drive | Electric |
Paper Clamp | Automatic |
Back Gauge Setting | Adjustable Hand Crank |
Warranty | 90 days limited warranty |
Country of Origin | United States |
Power Supply (Volts) | 220V, 60Hz, 20A dedicated line, NEMA 6-20P |
User Type | Commercial |

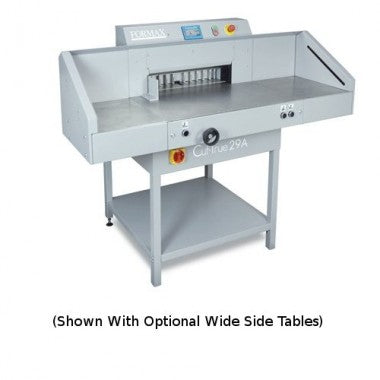

Optional Accessories | Wide Side Tables (Pair), Replacement Blade (29-10), Replacement Cutting Sticks, pkg of 8 (29-20) |
Applications | Print Shops, In-Plant Finishing Operations |
Cutting Material | Paper |
LED Laser Cut Line | Yes |

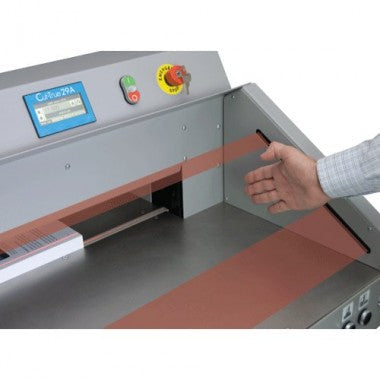

Safety Feature | Infrared Light beam safety curtain shuts down operation if the plane is interrupted |
Product Description:

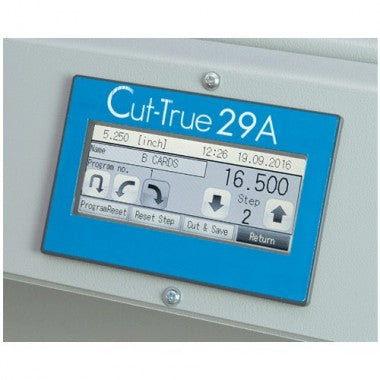

The Formax Cut True 29A 20.5" Automatic Programmable Guillotine Cutter is the ideal option for professional cutting the paper stacks up to 3.15" high and up to 20.5" wide. It offers an intuitive layout with a touchscreen control panel, adjustable back gauge, and complete programmability for up to 100 jobs/100 cuts. There is no compromise on the security of the users and the work owing to its infrared light beam safety curtain that stops the entire unit if anything interrupts the process in any way.

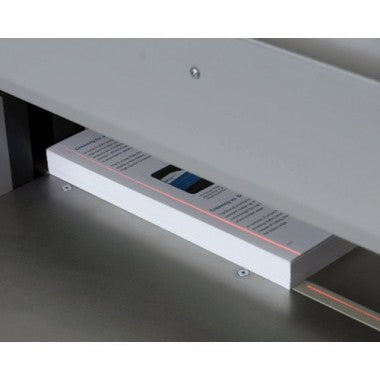

The Formax Cut-true 29A paper cutter comes with a vibrant LED Cutting Line that makes the cutting path clearly visible and guarantees precise cuts. It allows the users to operate the machine without putting strain on their eyes. The unit allows two-hand operations and its hardened steel blade provides cleanest cuts every time it moves. You can cut with the procession of up to 0.1mm on paper stacks up to 80mm. The Formax 29A Guillotine Cutter possesses an anti-friction surface with optional wide side tables that together make the machine versatile enough to handle huge paper stock with considerable ease.
With this Formax 20.5" automatic paper cutter, you can avail the unique false clamp that handles the sensitive paper stock delicately, minimizing the markings that other cutters usually leave on the paper while cutting. By removing this clamp, the minimum cut length can be varied. This component takes no time to get packed up and stored within the unit once the clamping job is done. For enhanced safety, the Cut True 29A features lock with key, blade lock, external blade depth adjustment, automatic blade return convenience, additional blade change safety tool, and a wooden paper push tool for accurate alignment. It surely is a complete treat for the customers who are looking for exceptional value and supreme cutting experience.
