Formax  |  SKU: FD 2054

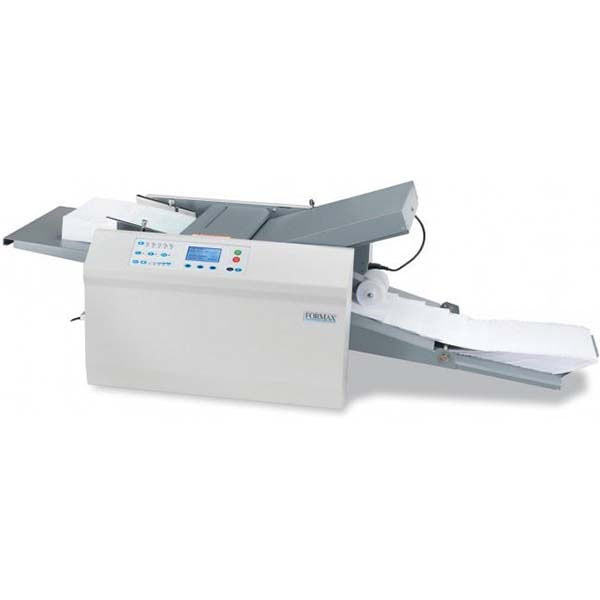

Formax AutoSeal FD 2054 Pressure Sealer

Shipping calculated at checkout.

Brochure View PDF File

Product Specifications
Product Name Formax AutoSeal FD 2054 Pressure Sealer
Manufacturer Formax
SKU FD 2054
Dimensions (H”xW”xD”) 16 x 21.28 x 55
Hopper Capacity (sheets) 500
Max. Paper Weight (lbs.) 20
Type of Pressure Sealer High-Volume Tabletop Pressure Sealer
Function Seal, Fold
Fold Type Z, C, Uneven Z, Uneven C, V, Eccentric C, Eccentric Z
Applications Paychecks, Invoices, Tax Forms, Medical Reports, Bills, Coupons, Notices, Checks, & ID Cards
Anti-Jam System No
Warranty 90 Day Limited Warranty on Parts
Country of Origin United States
Power Supply (Volts) 110-240, 50/60
User Type Large Office
Sheet Capacity (sheets/hour) 16,450
Operation Type Automatic
Additional Features Pre-programmed 5 Popular Fold Types, 35 custom Folds, AutoBatch Counter, 6 digit Resettable, 8-digit Life Counters, Fault Detector, Noise Reduction, Autostack Wheels
Product Description:

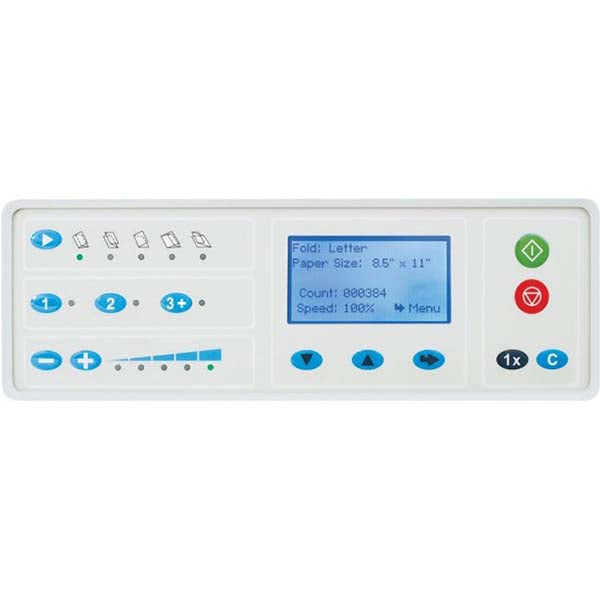

The Formax AutoSeal FD 2054 is designed for efficient pressure-sealing of mail pieces, offering the capability to process forms up to 18" long. With a Variable Speed Control allowing for up to 16,450 pieces per hour, this system is ideal for high-volume sealing needs. The machine comes equipped with a large 2.8" LCD screen that provides easy access to the control panel, simplifying adjustments and configurations.

  • Pre-programmed fold types such as Z, uneven Z, C, Half, and custom folds are built-in, catering to various folding requirements.
  • Users can store up to 35 custom jobs in the machine's memory, offering greater programmability and convenience.
  • The unique AutoStack Wheels enable automatic switching of fold types and sizes, making the process hands-free and efficient.

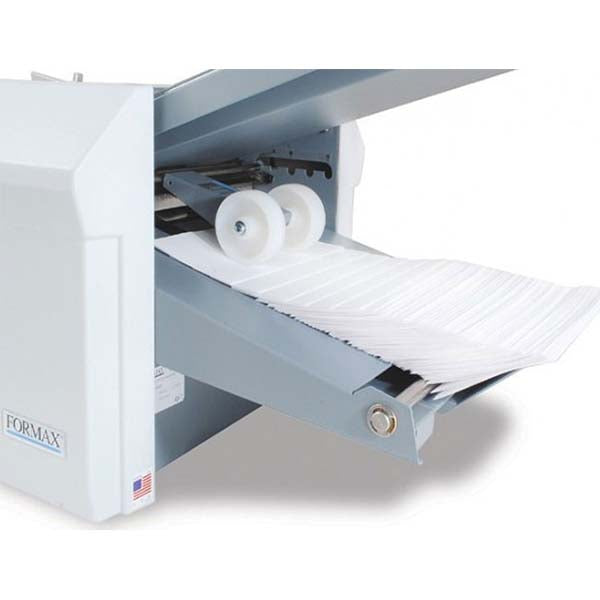

  • The system features a 14" to 36" long adjustable conveyor that can accommodate up to 500 folded pieces, enhancing workflow efficiency.
  • For easy process auditing, the machine includes a Six-Digit Resettable Counter, ensuring accurate tracking of output.
  • Equipped with a Fault Detector, the FD 2054 helps prevent errors such as double feeding, ensuring smooth operation.
  • Operating noise is significantly reduced thanks to the top and side covers, creating a more pleasant working environment.
  • Available fold types include Z, uneven Z, C, Half, and custom folds, providing versatility for various sealing needs.

The Formax AutoSeal FD 2054 is a reliable solution for businesses requiring quick and precise pressure sealing of documents. Its advanced features, high-speed processing, and user-friendly design make it an excellent choice for large offices with high-volume sealing demands.
