Formax  |  SKU: Atlas-AS

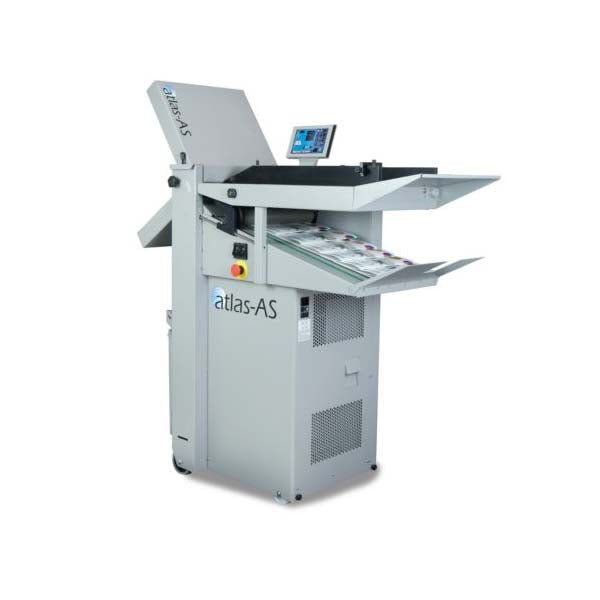

Formax Atlas-AS Air Feed Document Folder

Shipping calculated at checkout.

Brochure View PDF File

Product Specifications
Product Name Formax Atlas-AS Air Feed Document Folder
Manufacturer Formax
SKU Atlas-AS
Dimensions (H”xW”xD”) 54 x 21.8 x 48.8
Fold Type Letter Fold, Z-Fold, Half-Fold, Fold Out, Gate-Fold, Double Parallel Fold
Paper Size (W" x L") 5.5 x 6.2 - 14.3 x 26.5
Category Air-Feed
Type of Folder Auto-Feed, Auto Set-up
Fold Selection Setup Automatic
Speed (Sheets/Hour) 27,500
Automated Feed Yes
Warranty 90 day limited warranty on parts, excluding wearable and labor
Country of Origin United States
Power Supply (Volts) 220v, 60 Hz
User Type Commercial
Feed Tray Capacity 500
Product Description:

The Formax Atlas-AS air feed document folder is a paper folding product every high-end organization needs to meet their high volume work requirements.

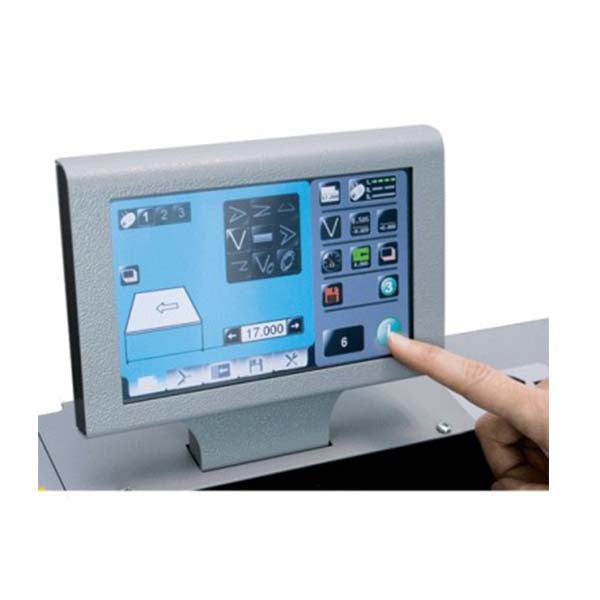

Atlas-AS boasts the industry-leading specification of a maximum folding speed of 27,000 sheets per hour. Speed can also be adjusted to specific needs, making it suitable for different workloads. Moreover, it comes with six standard folds in letter, legal and ledger paper sizes, which is a great facility for large offices. The LED displays of Atlas-AS allow fine adjustments to be made with accuracy up to 0.1 mm.

The distinguishing feature of Formax Atlast-AS is its air suction feed table that is built to support the exceptional speeds it operates at. It can handle sheets up to 25.5” in length, which can be either coated or non-coated. Furthermore, it also efficiently separates papers bound together by static charge build-ups. Self-alignment before feeding is another one of its impressive qualities, ridding operators of the need to constantly keep a check on the feed unit.

The Atlas-AS comes with a range of user-friendly functions that make paper folding amazingly comfortable and accurate for users. It can detect double document feed and jams in the unit, includes a batch counter, anti-static brushes, and skew and micro adjustment ability.

The Formax Air-Feed Paper Folder is undoubtedly the ideal paper handling product to have in the office with all these qualities.

Video of Formax Atlas-AS Air Feed Document Folder


Formax Atlas-AS Air Feed Document Folder
