Formax 7700 Series Modular Inserters
Formax 7700 Series Modular Inserters - FD 7700-Base13 Inserter Base w/5K Speed License, 8K Accumulator Speed License, Conveyor, Cabinet is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Formax 7700 Series Modular Inserters
Product Specifications
| System Speed | 7,000 envelopes/hour |
| Accumulation Speed | 14,000 Sheets/hour |
| Document Feeder Capacity | Up to 2,000 sheets |
| Duty Cycle | Up to 300,000 pieces per month |

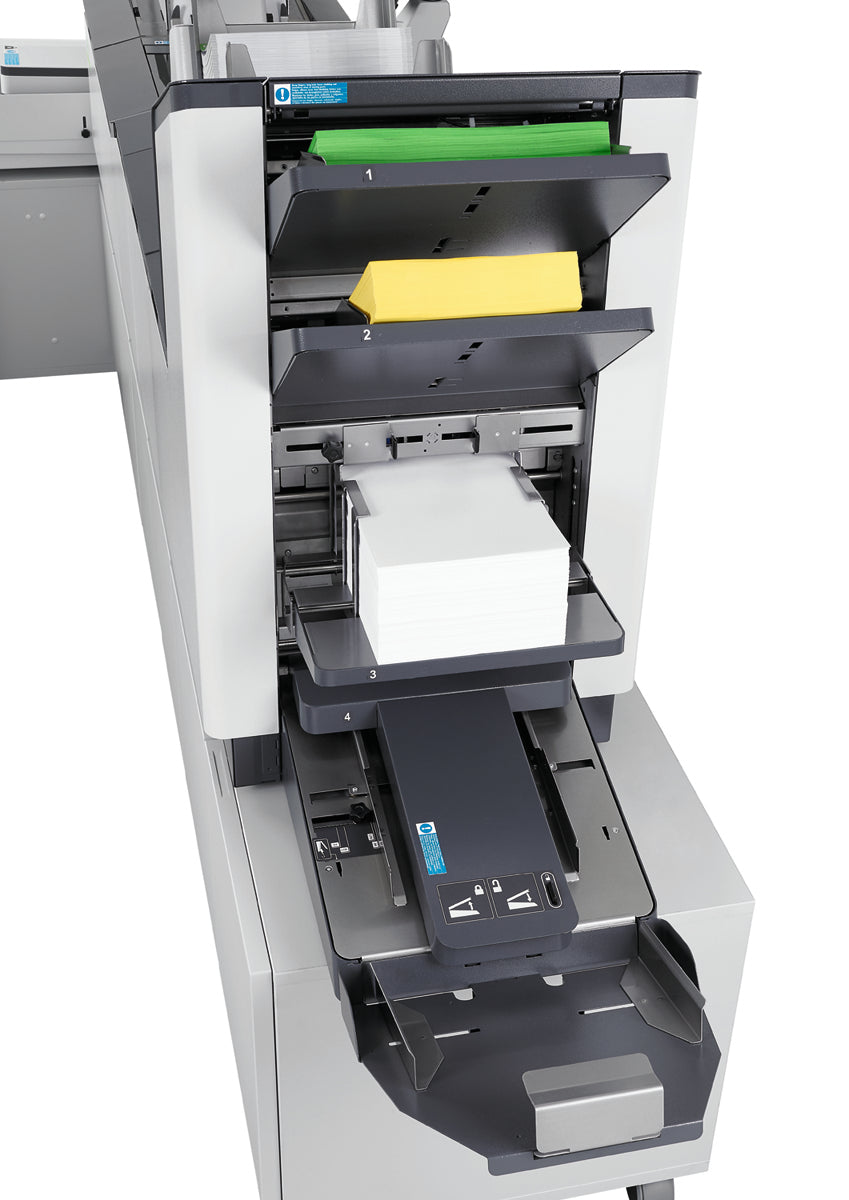

| Tower Feeder Sheet Size | Up to 16” L portrait feed (folding), 8.5” L landscape feed (no folding), Up to 8.5” W portrait feeding (folding), 12” W landscape feed (no folding) |

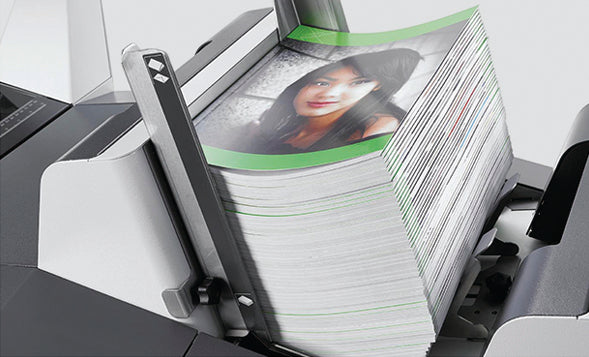

| High-Capacity Insert Feeder | Up to 250 sheets 20# (80gsm), Up to 1/4” (6mm) booklets |

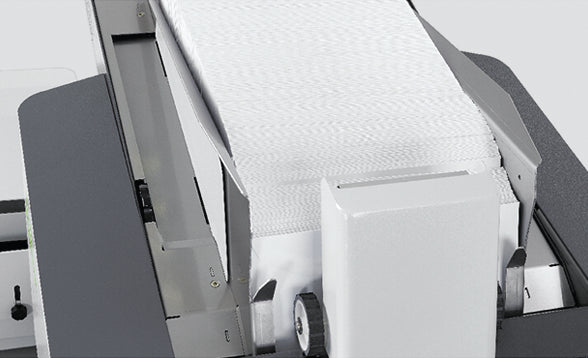

| Envelope Feeder | Top-loading, up to 800 #10 envelopes or 500 10” x 13” flats (landscape) |
| Envelope Size | 3.9” - 10” H x 8.9” - 13” W* (99 - 254 x 226 - 330mm) |
| Max Set/Insert Thickness | Up to 80 sheets, up to 3/8” (10mm) |
| Max Sheet Thickness | Up to 200gsm |
| Code Reading | OMR, BCR, 2D Data Matrix, QR, barcodes on reverse of document |
| Voltage | 110V, 60Hz, 10Amp |
| Safety Certifications | UL, CE, FCC certified |
Product Description:

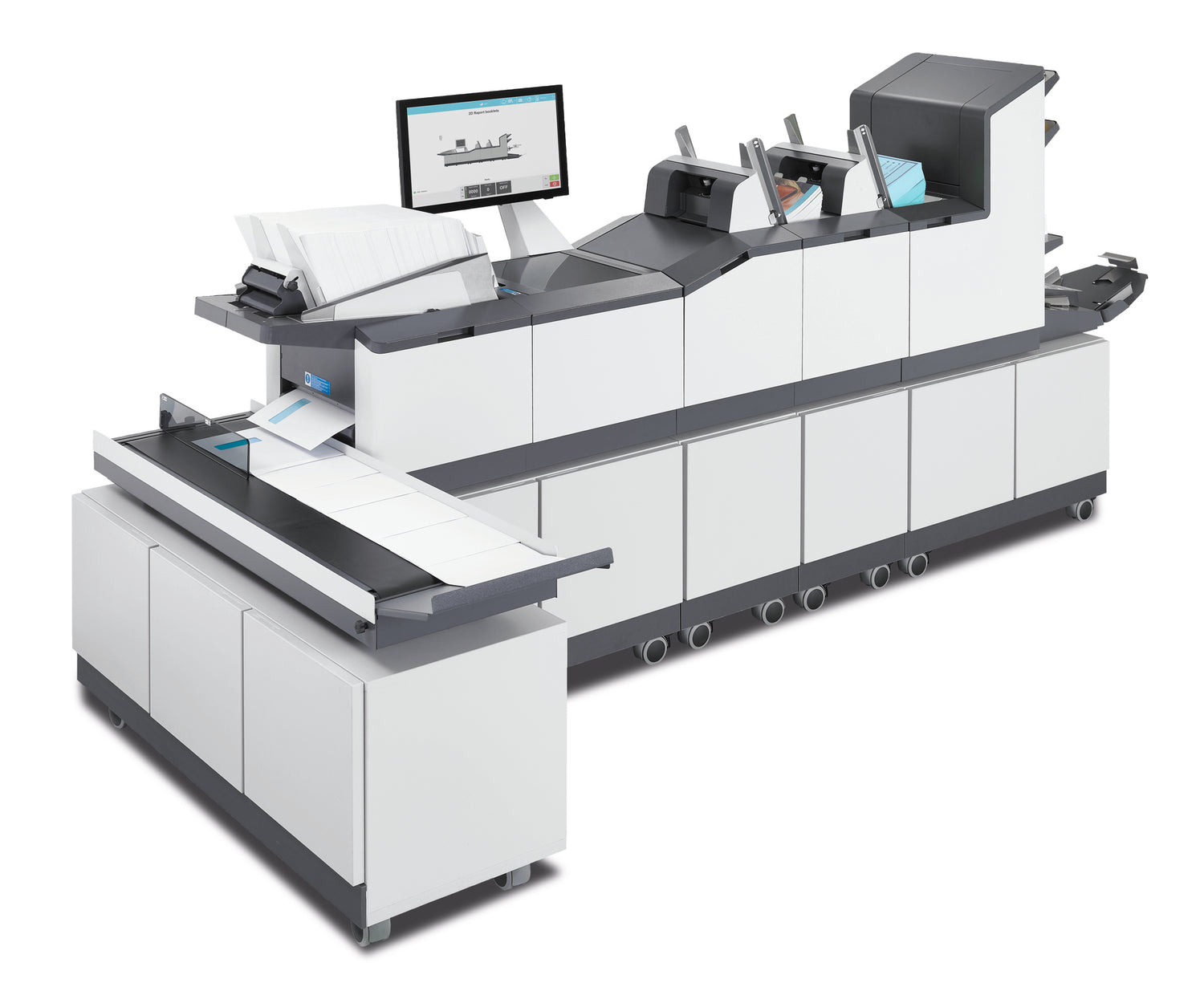

The Formax 7700 Series Modular Inserters deliver enterprise-level mailing automation with flexible, high-speed performance. Configure the system to match your workflow and scale for complex direct mail, statements, and personalized communications.
- Processes up to 7,000 envelopes per hour
- OMR, BCR, 2D, and QR code reading for tracking

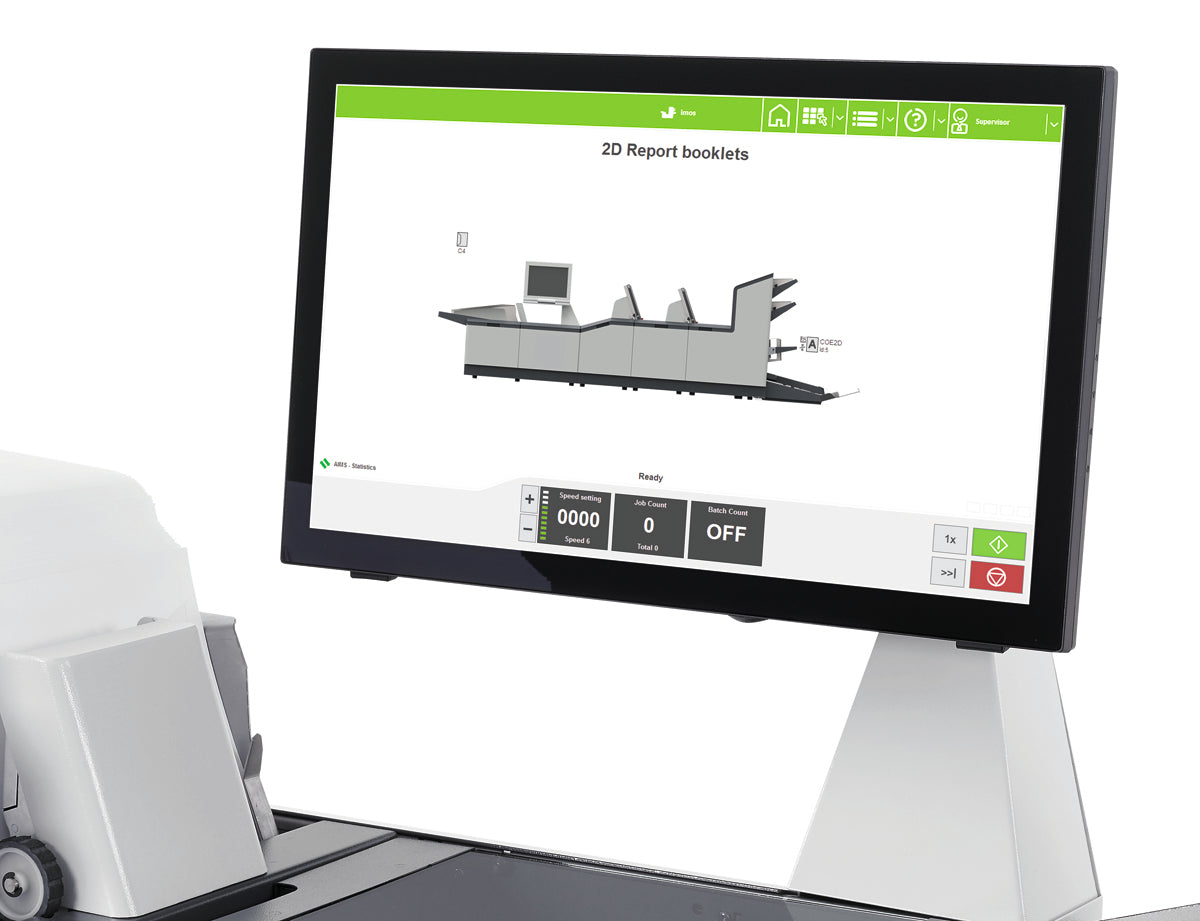

- 22" color touchscreen for streamlined control
- High-capacity feeders and conveyors to minimize downtime
- Thick Set upgrade inserts up to 80 sheets or 10 mm
Advanced features include folding up to eight sheets, landscape orientation processing, and barcode reading on both sides for integrity. The 7700 Series is a dependable choice for businesses that require speed, accuracy, and modular scalability.
