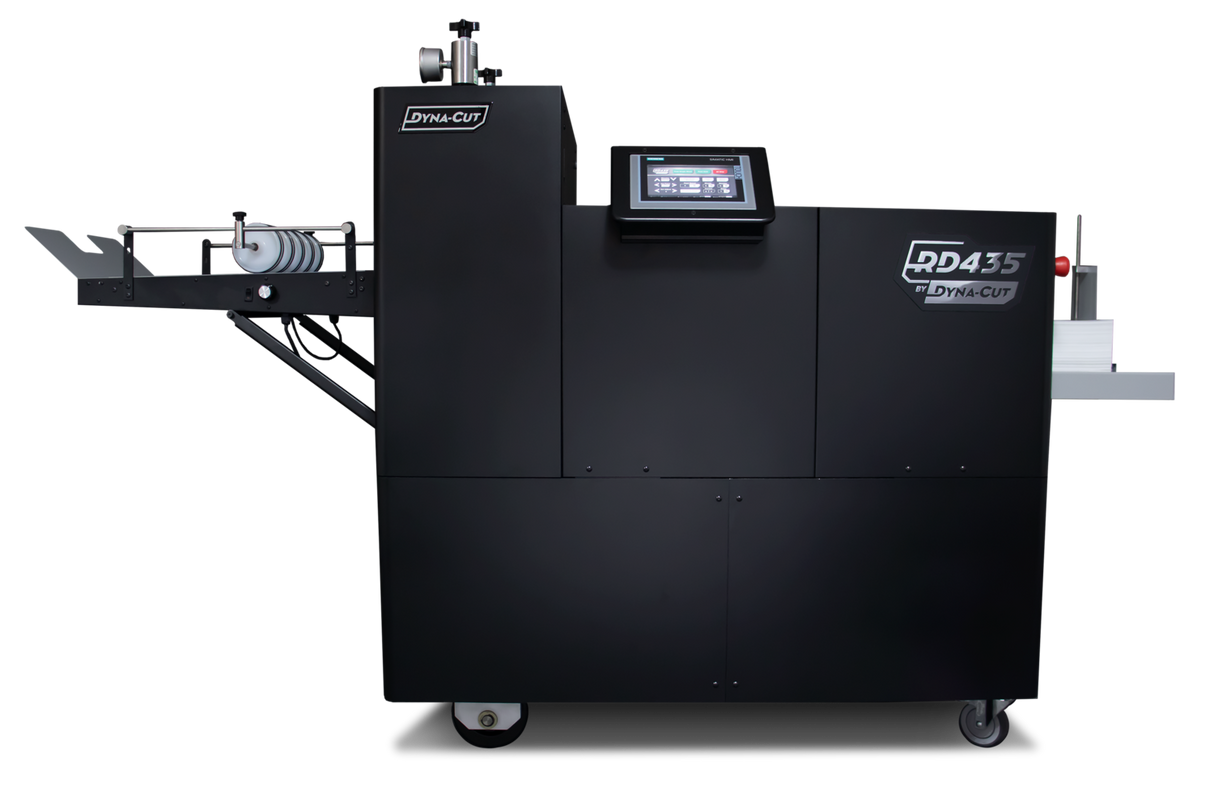

Dyna-Cut DC-RD435 Rotary Die Cutter With Tray
Dyna-Cut DC-RD435 Rotary Die Cutter With Tray is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Dyna-Cut DC-RD435 Rotary Die Cutter With Tray
Spec Sheet: View PDF File
Product Specifications
| Product Name | Dyna-Cut DC-RD435 Rotary Die Cutter With Tray |
| Model | RD435 |
| Dimensions | 105" L x 29.25" W x 55.25" H |
| Weight | 1025 lbs |
| Speed | 6,000 cycles per hour |
| Feed Capacity | Top Feed Vacuum System |
| Feed Tray Capacity | 8 inch |
| Paper Weight Range | 106 - 435 gsm |
| Max Sheet Size | 14" x 20" |
| Min Sheet Size | 8.5" x 11" |
| Delivery | Motorized Belt |
| Motor | Dual (Cylinder and Feeder) |
| Voltage | 110V |
| Double Sheet Detector | Yes |
| Registration Mark Sensor | Yes |
| Reg Board Alignment | Yes |
| In-line Scrap Separator | Yes |
| Made in | U.S.A. |
Product Description:
The RD435 Rotary Die Cutter offers advanced finishing capabilities for print and packaging businesses. This machine combines precision with high-volume production, enabling the creation of custom-shaped products to meet diverse client needs. Its versatile functionality includes kiss cuts, slits, perforations, debossing, and window punches, adapting to a wide range of print and packaging requirements.

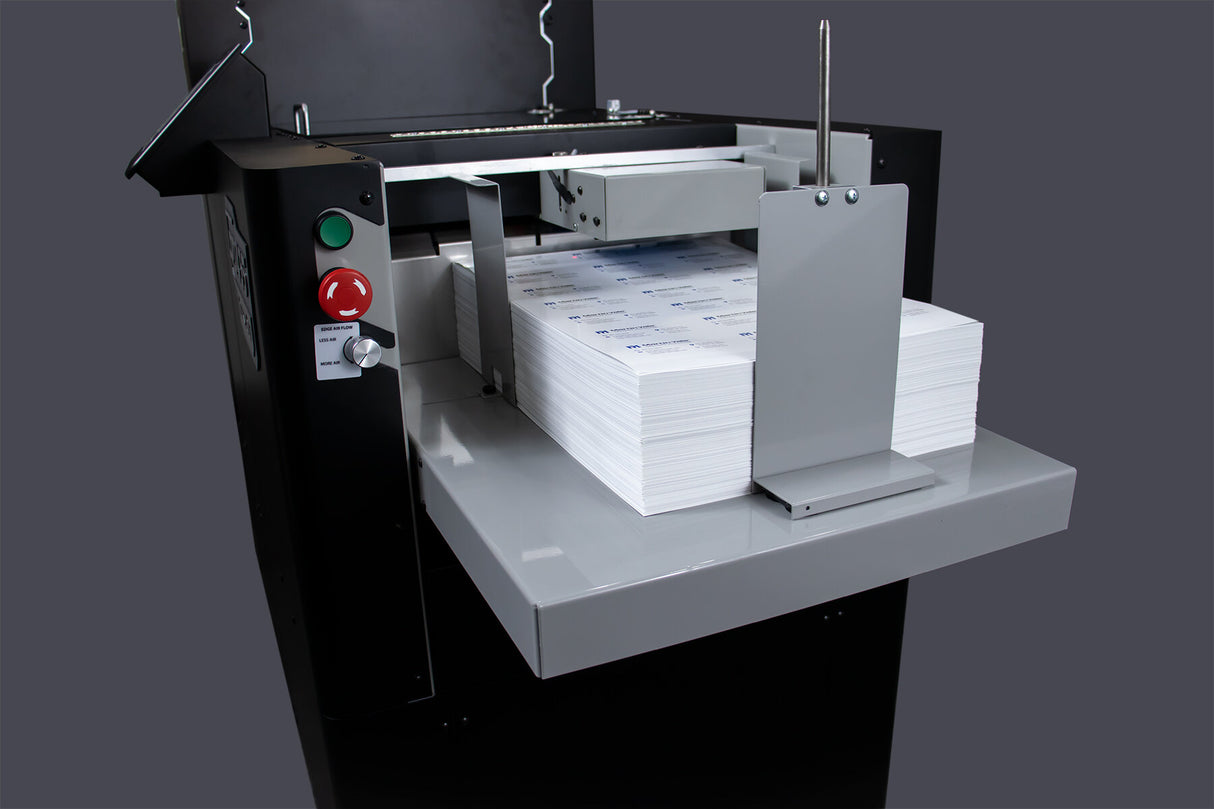

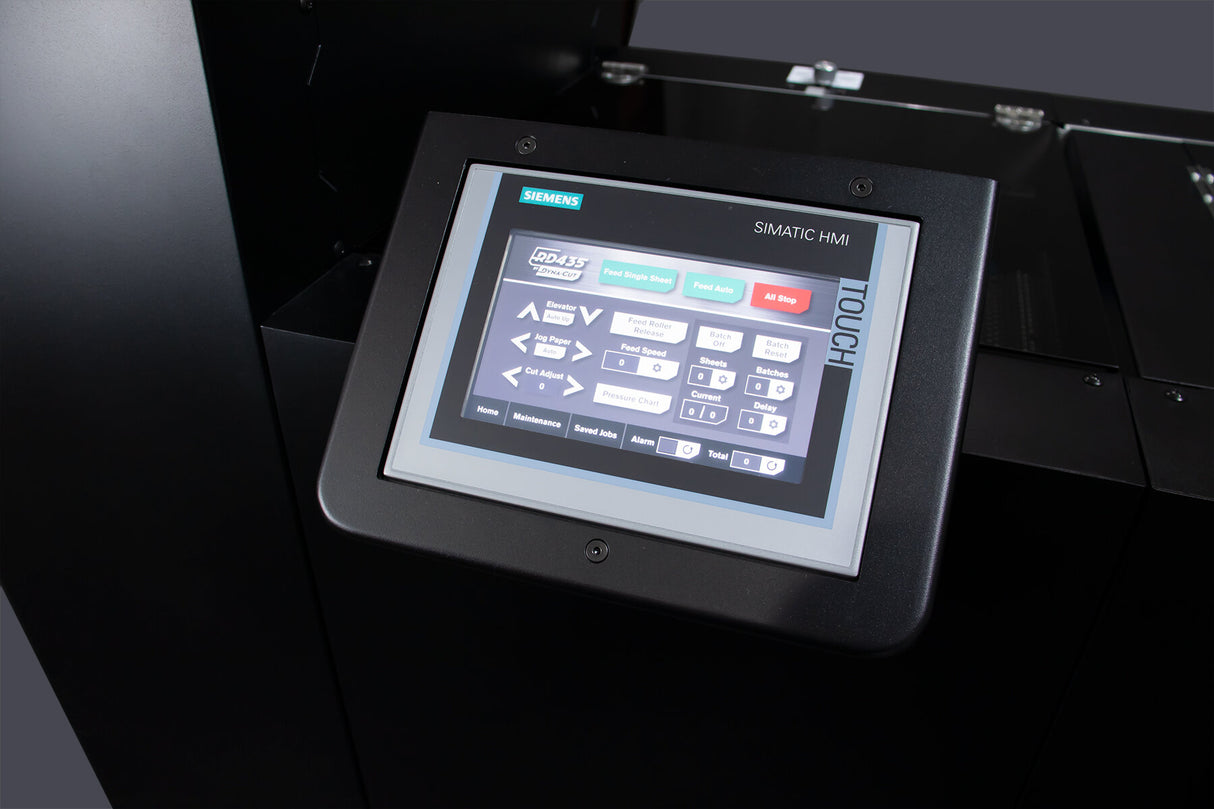

Designed for continuous operation, the RD435 incorporates a top feed vacuum system and a substantial 8" capacity pile feeder. Operation is streamlined through an intuitive touch screen interface, while the integrated conveyor system with in-line scrap separation enhances productivity. The machine processes materials from 106 to 435 GSM, accommodating various stock types for applications spanning from intricate business cards to durable folded boxes.
With its ability to handle sheets up to 14" x 20", the RD435 expands production possibilities, allowing businesses to efficiently create precise, custom-shaped printed materials.
Video of Dyna-Cut DC-RD435 Rotary Die Cutter With Tray
