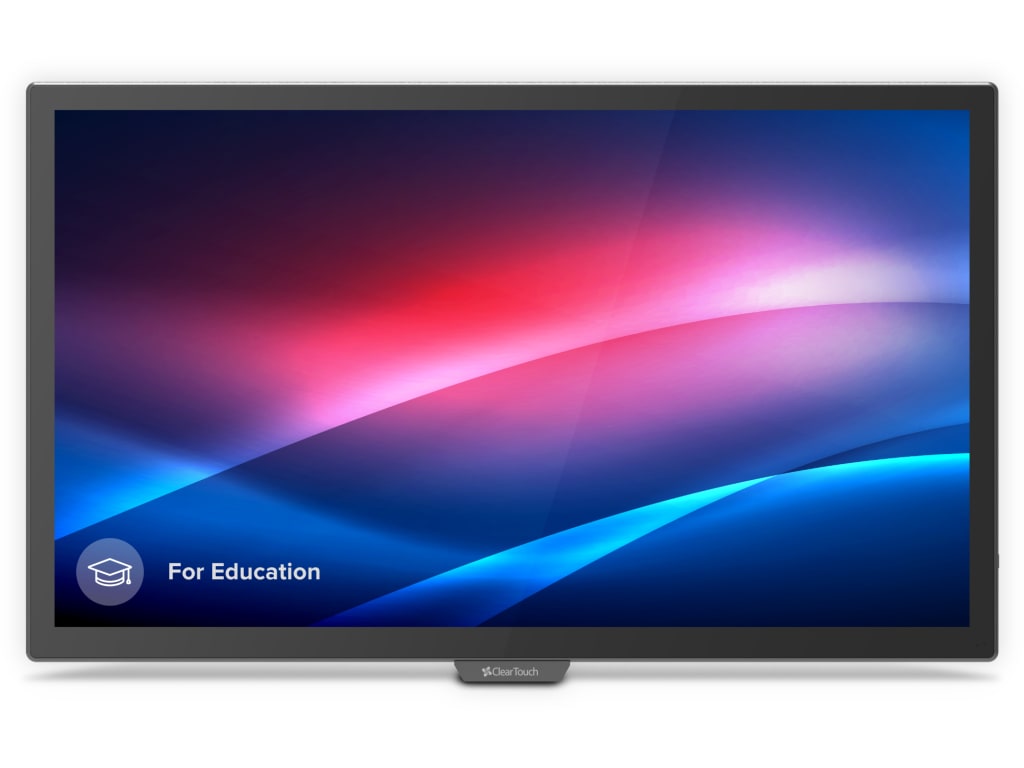

Clear Touch 7000XE Series Smart Board Display
Clear Touch 7000XE Series Smart Board Display is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Clear Touch 7000XE Series Smart Board Display
Spec Sheet: View PDF File
Other Resources: View PDF File
Product Specifications
| Model | CTI-7065XE-UH20 Specifications |
| Size | 65" |
| Panel Type | RGB |
| Aspect Ratio | 16:9 |
| Display Area | 56" x 31.6" |
| Resolution | 3840(H) x 2160(V) |
| Pixel Pitch | 0.372 x 0.372 mm |
| Back Light Unit | D-LED |
| Response Time | 6.5 ms |
| Refreshing Frequency | 60Hz |
| Display Color | 1.07B (10 bit) |
| Brightness (typical) | 350 cd/m 2 |
| Contrast Ratio | 4000:1 |
| Viewing Angle | 178° |
| Life Time | > 30,000 Hours |
| Sound Channel (Panel Audio) | 2.0 |
| Output Power | 2 x 10W + 15W |
| HDMI Output (Panel Connections) | 1 |
| USB 2.0 (shared across all inputs) | 3 |
| USB 3.0 (shared across all inputs) | 3 |
| USB-C port (45W PD) | 1 |
| Touch Input | 2 |
| HDMI Input | 3 |
| VGA Input | 1 |
| Audio Input | 1 |
| RS232 Port | 1 |
| Audio Output | 1 |
| RJ45 Port with LAN Pass Through to PC | 1 |
| SPDIF | 1 |
| Sensing Type (Panel Interactivity) | ITO |
| Compatibility | Windows10/Windows8/Windows7/WindowsXP/Linux/MacOSX/Android/Chrome |
| Touch Point | 10 writing, 20 points touch |
| Minimum Object Size | 2.8 mm |
| Touch Tool | Finger, Capacitive stylus |
| Response Time | 6.5 ms |
| Accuracy | ± 1 mm 90% area |
| Palm Rejection | Support |
| Pressure Sensitivity | Support |
| Simultaneous Writing | Double writing and double pens |
| Glass Type | Anti-glare 3mm thick glass |
| Interpolation Resolution | 32768(W) x 32768(D) |
| Power Requirements | 100-240V ~ 50/60Hz 4.0A |
| Standby Power | ≤0.5W |
| Overall Power (nominal power) | 400W |
| Key Location & Number (Physical Specification) | Right side physical key |
| Dimension L*W*H | 59" x 34" x 3" |
| Dimension (package) L*W*H | 67" x 9" x 21" |
| Net Weight | 87 Ibs |
| Gross Weight | 114 Ibs |
| Machine + Wall Mount Thickness | 4.5" WIB9060G |
| Wall-hanging Screw Spec | M8 x 25 mm |
| VESA | 600 x 400 mm |
What's in the Box:
- American Standard Power Cord
- USB Touch Cable (Type A-B)
- HDMI Cable
- Remote Control
- AAA Batteries (2)
- Pens
- Quick Start Guide
Product Description:
Elevate your classroom or office space with the Clear Touch 65" 7000XE Series Interactive UHD Panel. Experience vibrant Ultra HD resolution and 20 points of touch for an immersive learning environment. The HiSilicon V811 Chipset and capacitive touch technology ensure industry-leading performance and intuitive touch interaction.
- Ultra HD resolution for a vibrant and immersive learning experience
- HiSilicon V811 Chipset high-performance TV chip for industry-leading performance
- Capacitive touch technology with 20 points of touch for an intuitive touch experience
- Cutting-edge software suite for real-time collaboration, remote management, and connected learning

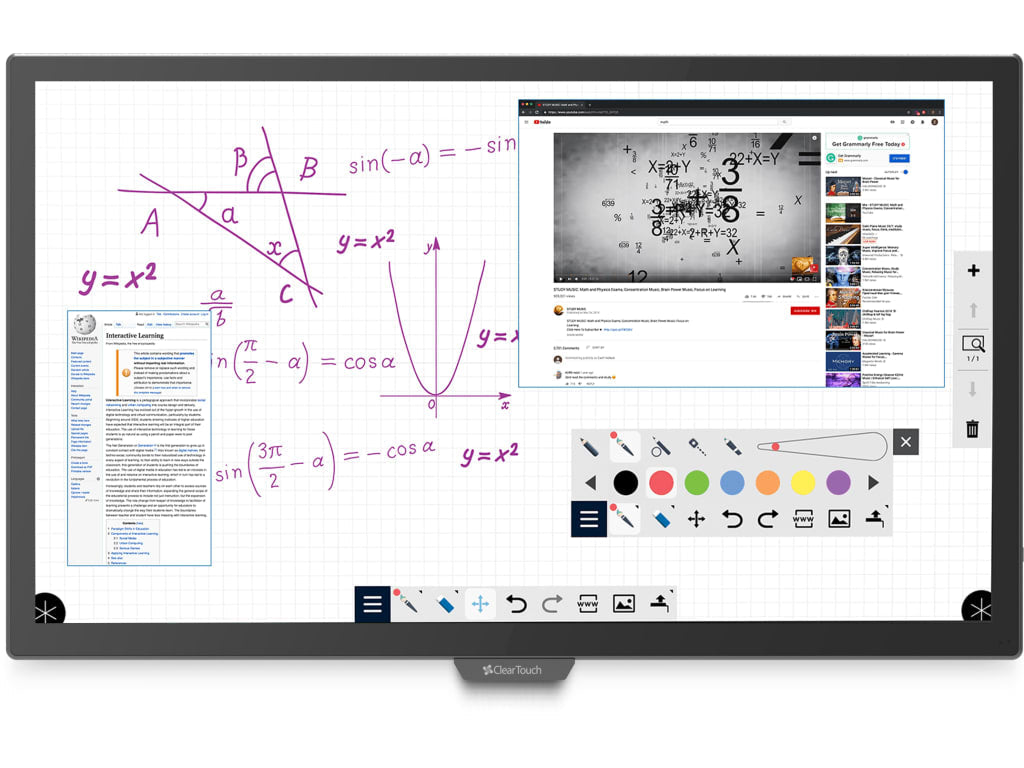

- Infinite whiteboard feature for sketching notes and diagrams

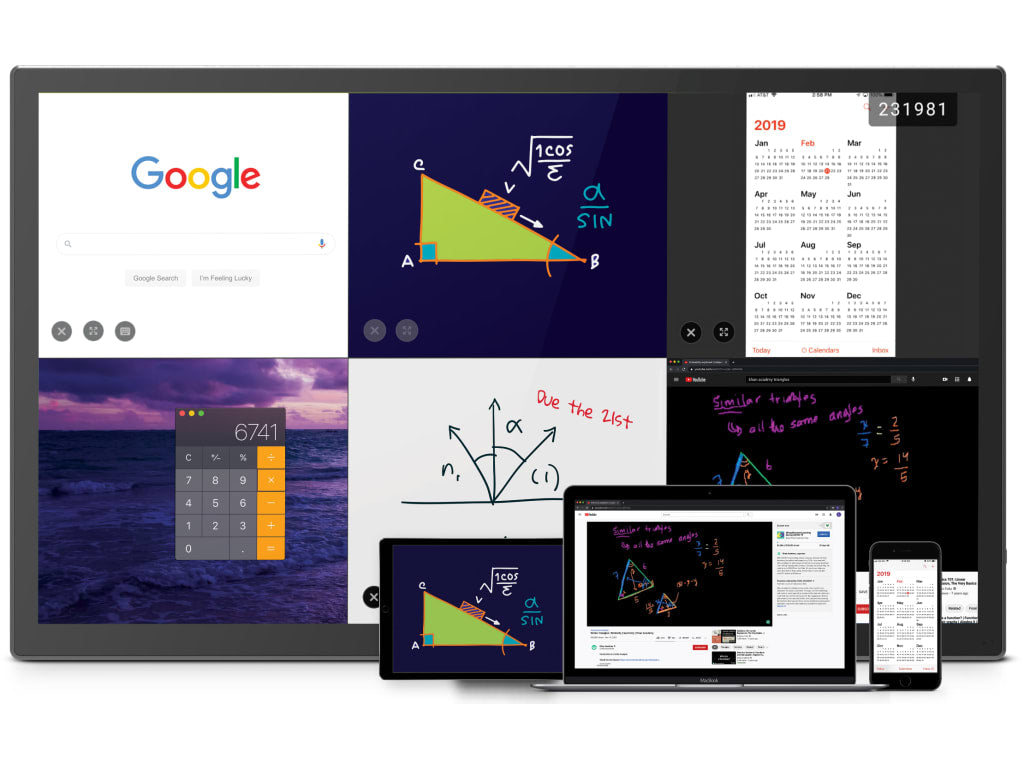

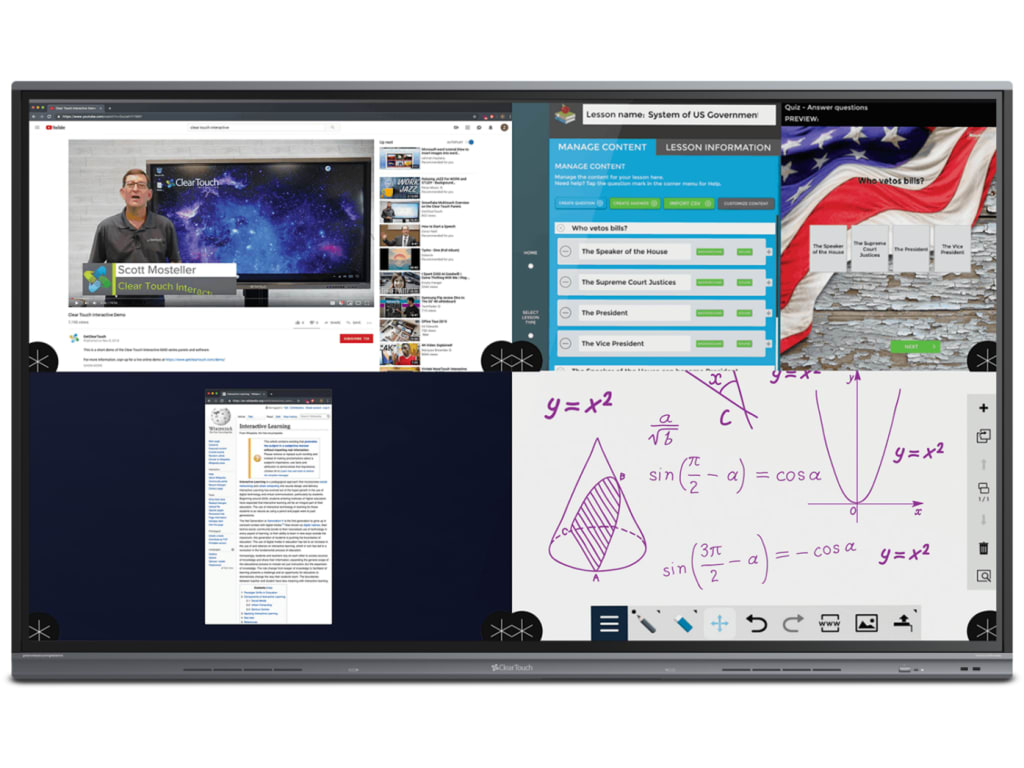

Enhance collaboration with features like multi-zone modes and a vibrant online community. With compatibility across various platforms and support for double writing, the 7000XE panel empowers educators to create a versatile digital ecosystem. Take your teaching or presentation to the next level with the Clear Touch 7000XE Interactive UHD Panel.
- Industry-leading DOA failure rate and 1-year warranty for peace of mind
- Touch Point: 10 writing, 20 points touch for versatile interaction
- Pressure Sensitivity Support for precise touch control
- Glass Type: Anti-glare 3mm thick glass for optimal viewing experience
- Power Requirements: 100-240V ~ 50/60Hz 4.0A for efficient power usage
