Christie  |  SKU: Christie FHD553-XE-R

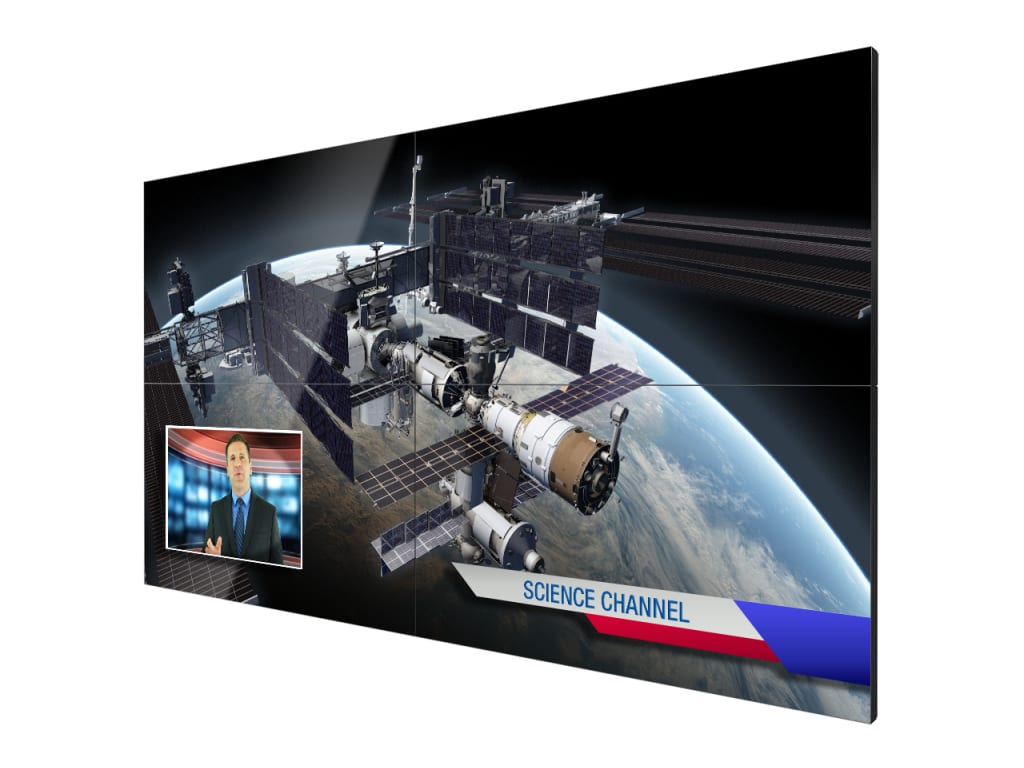

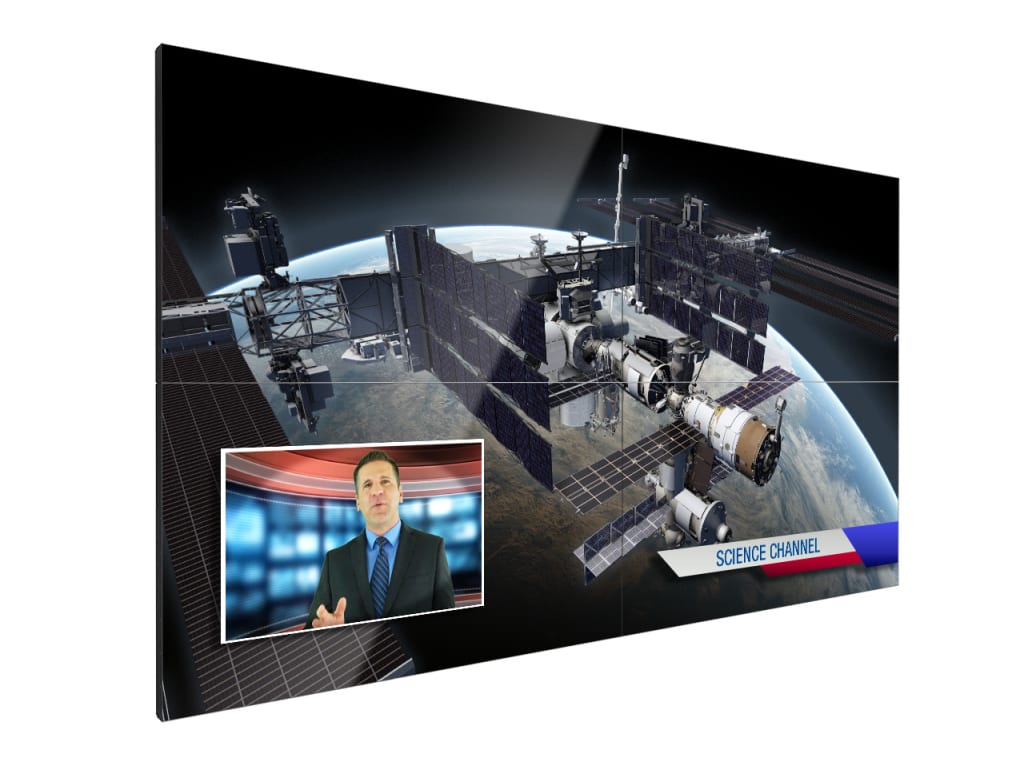

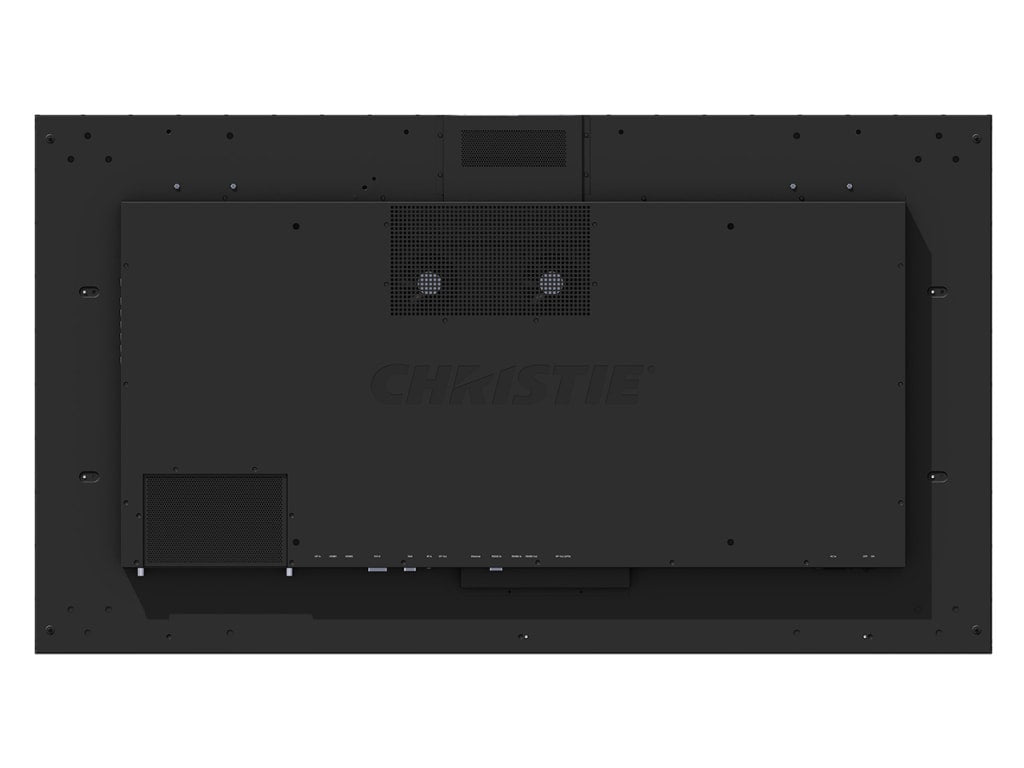

Christie FHD553-XE-R 55" Full HD Extreme Series LCD Panels

$6,698.44
Shipping calculated at checkout.

Request Replacement Part and Supplies

Spec Sheet: View PDF File

Other Resources: View PDF File

Product Specifications
Native resolution 1920 x 1080 (16:9)
Backlight Direct-lit LED
LED lifespan (50% brightness) 50,000 hrs
Pixel pitch (WxH) 0.63 x 0.63mm
Nominal bezel size 1.7mm combined bezel to bezel
Brightness (typical) 500 nits (cd/sq m)
Contrast ratio (full field) 4000:1 typical
Viewing angle (CR 10:1) 178 degrees h/v
Refresh rate 50-60Hz
Response time (typical) 8ms
Color space typical (CIE 1931) 72%
Display colors 8 bit, 16.7 million
Display orientation Portrait and landscape
Signal outputs DisplayPort (daisy chains DisplayPort, HDMI, and DVI inputs up to 16 panels from one source)
Control inputs RS-232 via D-Sub9
Control outputs RJ-45 for control looping
Power input rating 48 VDC from remote power supply unit
Power consumption 130 W (Typ.) 170 W (Max.) without OPS*
Operating temperature 41-95°F (5-35°C)
Operating humidity 20-90% RH non-condensing
Physical size (without handles) (WxHxD) 47.7 x 26.9 x 3.6" (1211.5 x 682.3 x 92.0mm)
Physical weight (without handles) 62.8lbs (28.5kg)
Mounting Works with Christie ML20 mount for a depth of ≤ 4" (100mm)
VESA (WxH) 400 x 400mm, M8 (15mm internal depth)
Runtime Designed for 24/7 operation featuring a reliable power supply and cooling system**
What's in the Box:
  • Panel ships with DisplayPort cable
  • IR remote control
  • External IR receiver
  • Power cable (AC or DC daisy chain)
  • Control daisy chain cable
  • Alignment brackets
  • User Manual
Product Description:

Enhance your video wall experience with the Christie FHD553-XE-R 55" Full HD Extreme Series LCD Panels. Featuring an extremely narrow bezel width of 1.7mm, these commercial-grade panels deliver vibrant visuals with a high contrast ratio of 4000:1. The Smart Light Control feature ensures uniform brightness across the entire display, while the LED backlighting provides a lifespan of up to 50,000 hours for long-lasting performance.


  • Calibrated for optimal brightness and color accuracy
  • Remote and redundant power options for enhanced reliability
  • Built-in SNMP monitoring for easy display status tracking
  • DisplayPort signal outputs for seamless connectivity
  • Designed for 24/7 operation with efficient cooling system
