Christie  |  SKU: Christie FHD553-XE-HR

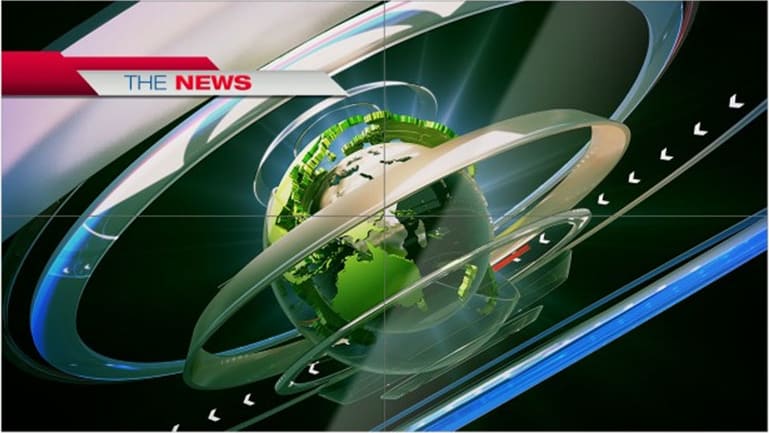

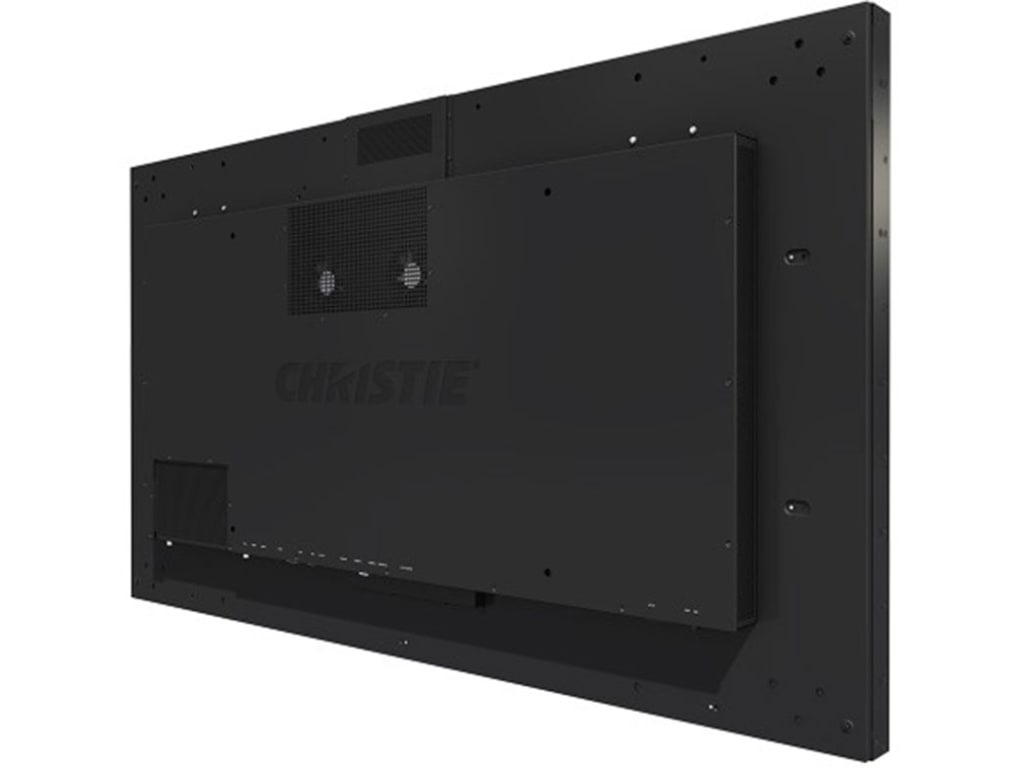

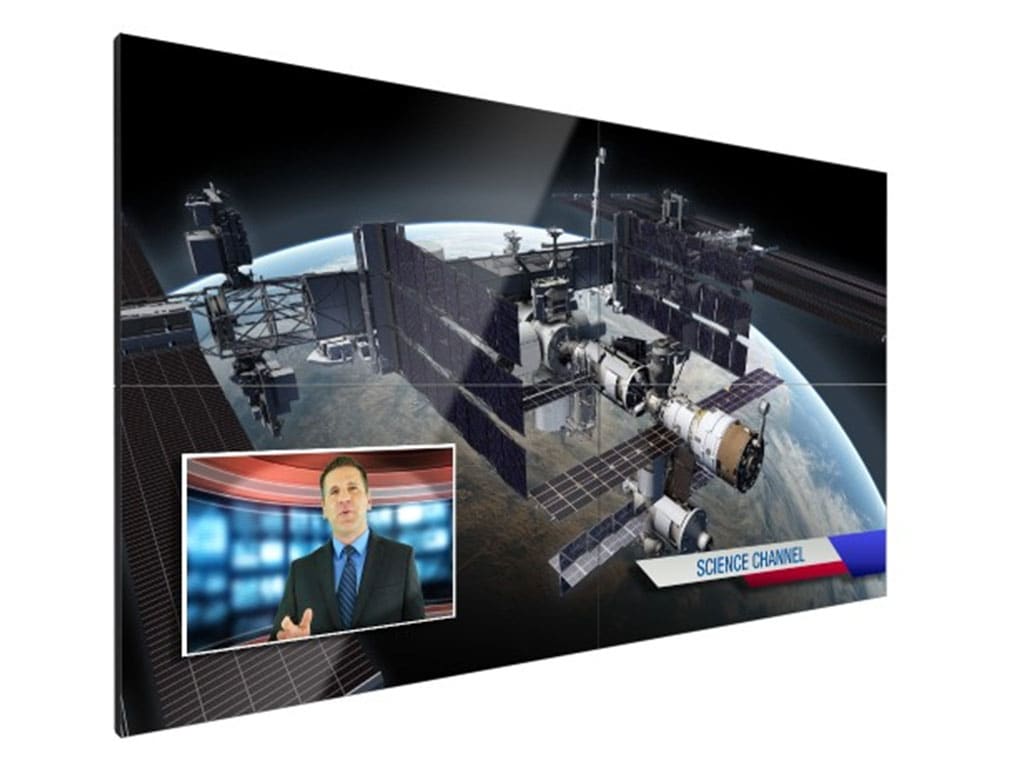

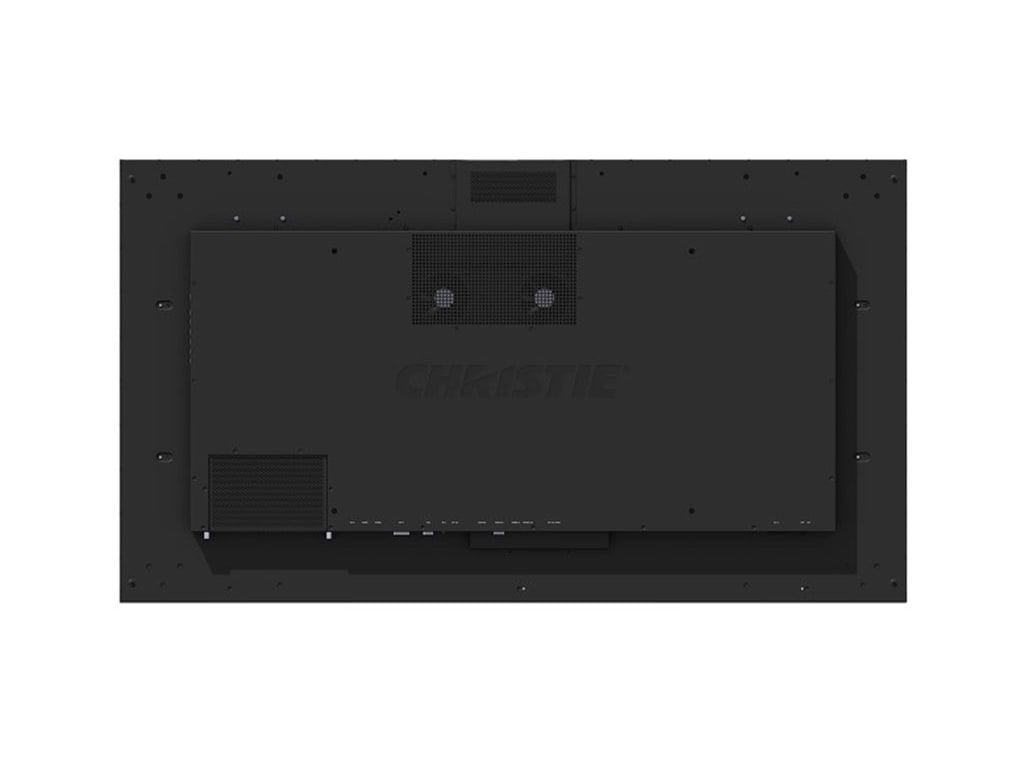

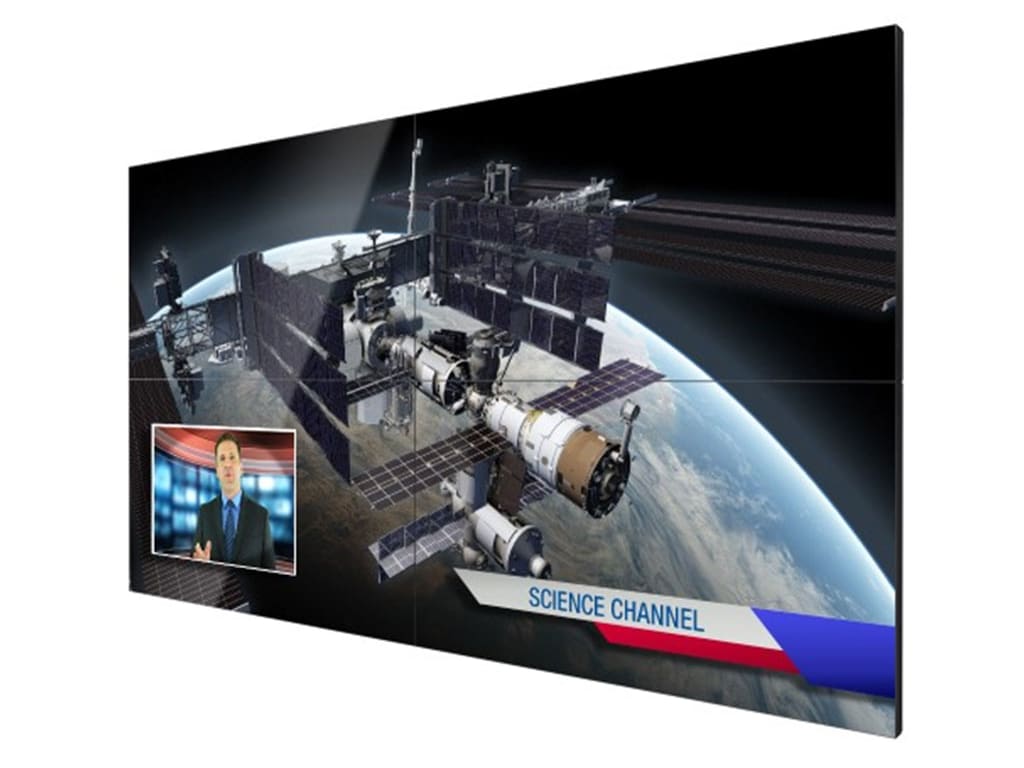

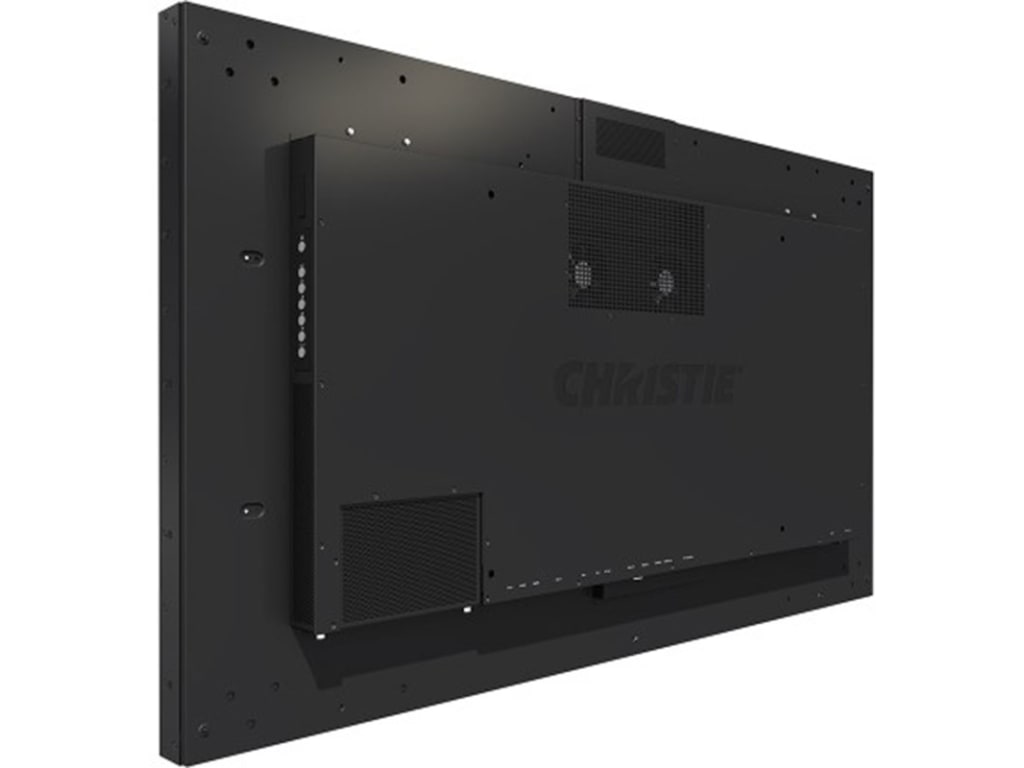

Christie FHD553-XE-HR 55" Full HD Extreme Series Display

$7,935.94
Shipping calculated at checkout.

Request Replacement Part and Supplies

Spec Sheet: View PDF File

Other Resources: View PDF File

Product Specifications
Screen size (diagonal) 55"/139.7cm
Native resolution 1920 x 1080 (16:9)
Backlight Direct-lit LED
LED lifespan 50,000 hours to 50% brightness
Display orientation Portrait and landscape
Pixel pitch 0.63 x 0.63mm
Nominal bezel size 1.7mm combined bezel to bezel
Brightness 700 nits (cd/m2) typical
Contrast ratio​ (full field) 4000:1 typical
Viewing angle (CR 10:1) 178° h/v
Refresh rate 50-60Hz
Response time 8 ms typical
Color space (CIE 1931) 72% typical
Display colors 8 bit, 16.7 million
Signal inputs 2 x HDMI (Ver 1.4, HDCP)
DisplayPort (Ver 1.2, HDCP)
DVI-D (HDCP)
VGA
Signal outputs DisplayPort (daisy chains DisplayPort, HDMI, and DVI inputs up to 16 panels from one source)
Control inputs RS-232 via D-Sub9
RJ-45 LAN
Keypad
IR window
IR wire extender
Control outputs RJ-45 for control looping
Power input rating 48 VDC from remote power supply unit
Power consumption 65 W(Typ.)
225 W(Max.) without OPS1
Operating temperature 41-95°F (5-35°C)
Operating humidity 20-90% RH non-condensing
Physical size (without handles) (WxHxD) 47.7 x 26.9 x 3.6" (1211.5 x 682.3 x 92.0mm)
Physical weight (without handles) 62.8lbs (28.5​kg)
Mounting Works with Christie ML20 mount for a depth of ≤ 4" (100mm)
VESA (WxH) 400 x 400mm, M8 (15mm internal depth)
Runtime Designed for 24/7 operation featuring a reliable power supply and cooling system2
Warranty Three year parts and labor limited warranty
Contact an authorized Christie representative for full details of our limited warranty
What's in the Box:
  • Panel ships with DisplayPort cable
  • IR remote control
  • External IR receiver
  • Power cable (AC or DC daisy chain)
  • Control daisy chain cable
  • Alignment brackets
  • User Manual
Product Description:

Transform any space into a visual marvel with the Christie FHD553-XE-HR 55" Full HD Extreme Series Display. Perfect for corporate, command and control, or digital signage applications, this display offers Full HD resolution and the ability to scale across video walls up to 10x10 for a captivating viewing experience.


  • 1.7mm combined extreme narrow bezel width for seamless display continuity
  • Supports portrait and landscape orientations for versatile installation
  • Brightness options of 500 and 700 nits ensure clear visibility in various environments
  • Designed for reliable 24/7 performance to meet the demands of continuous operation

Enhance your visual content with Christie's advanced image processing products and video wall controllers, allowing you to create a customized system tailored to your needs. Whether it's a control room, educational facility, or retail space, the Christie FHD553-XE-HR offers exceptional performance, image quality, and functionality at an attractive price point.


  • Features Direct-lit LED backlight technology for vibrant and energy-efficient display
  • Multiple signal inputs including HDMI, DisplayPort, DVI-D, and VGA for seamless connectivity
  • Built-in control inputs and outputs for easy integration into existing systems
  • Designed for 24/7 operation with a robust cooling system for long-term reliability
