Christie  |  SKU: Christie FHD493-XE

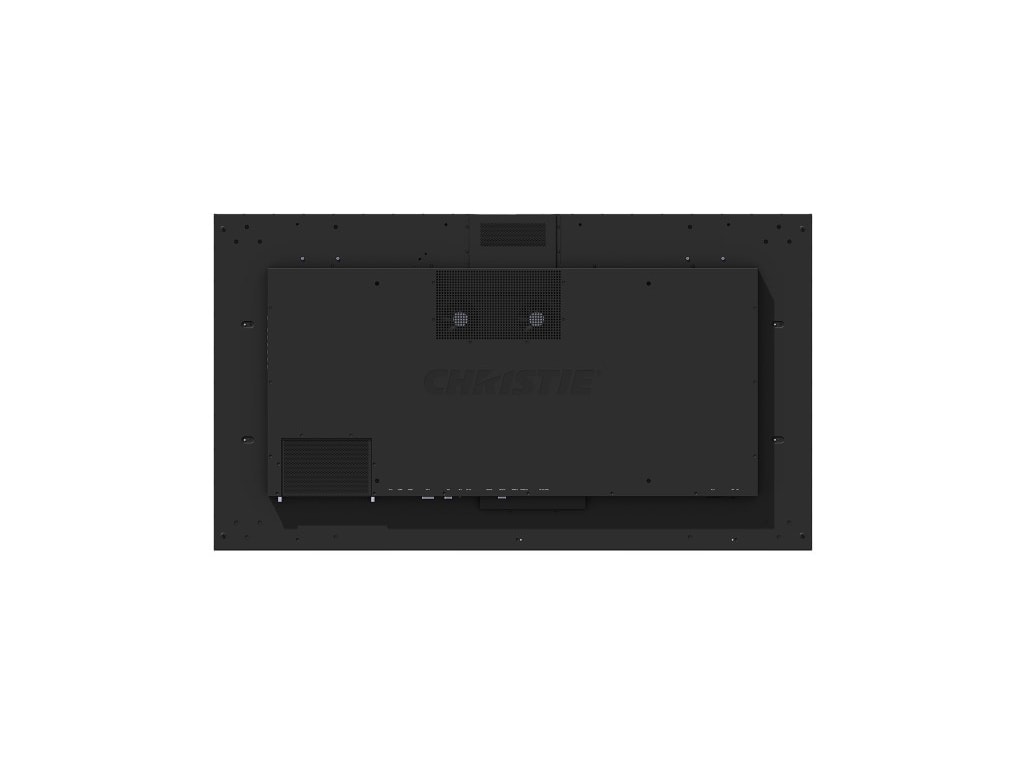

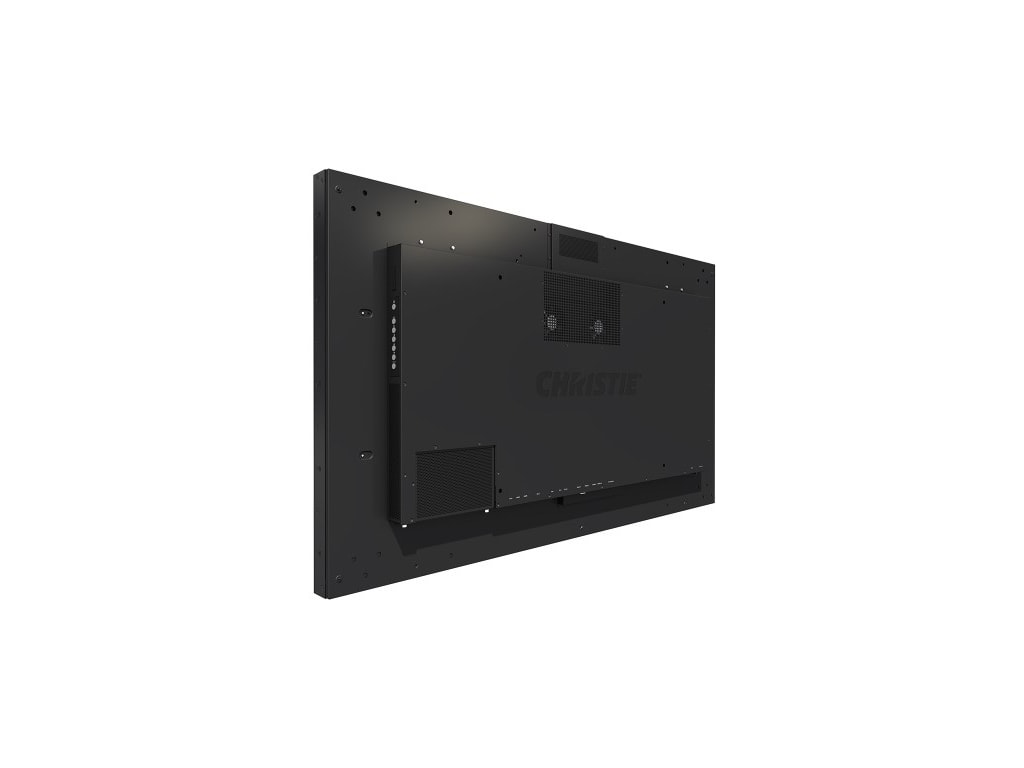

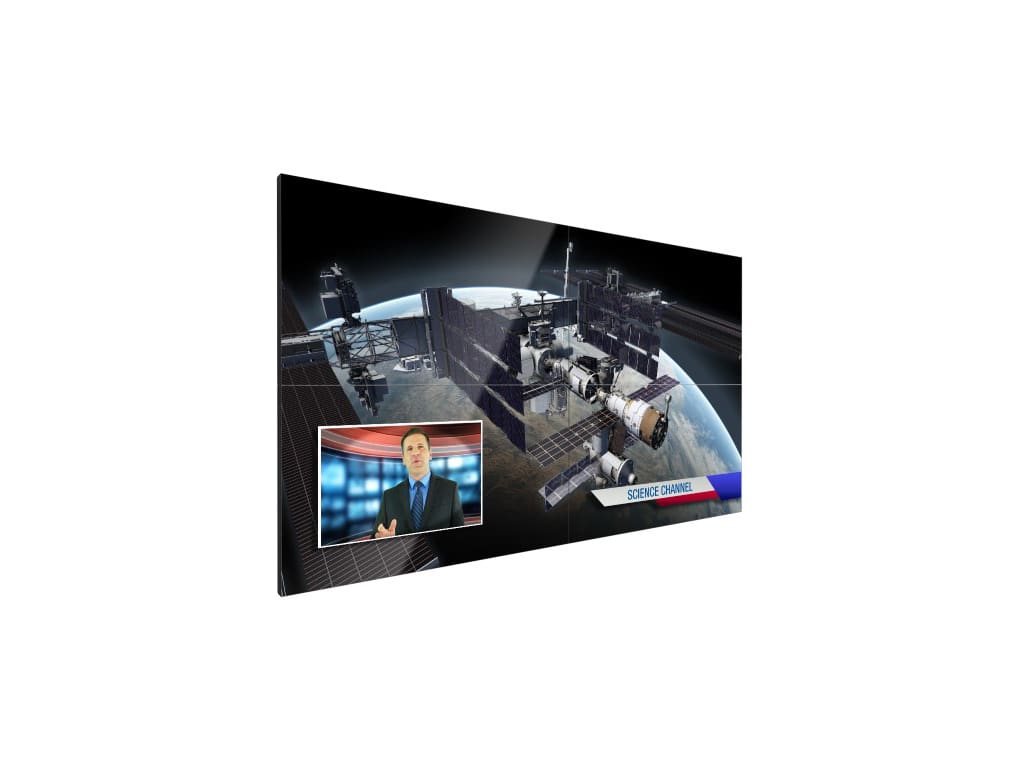

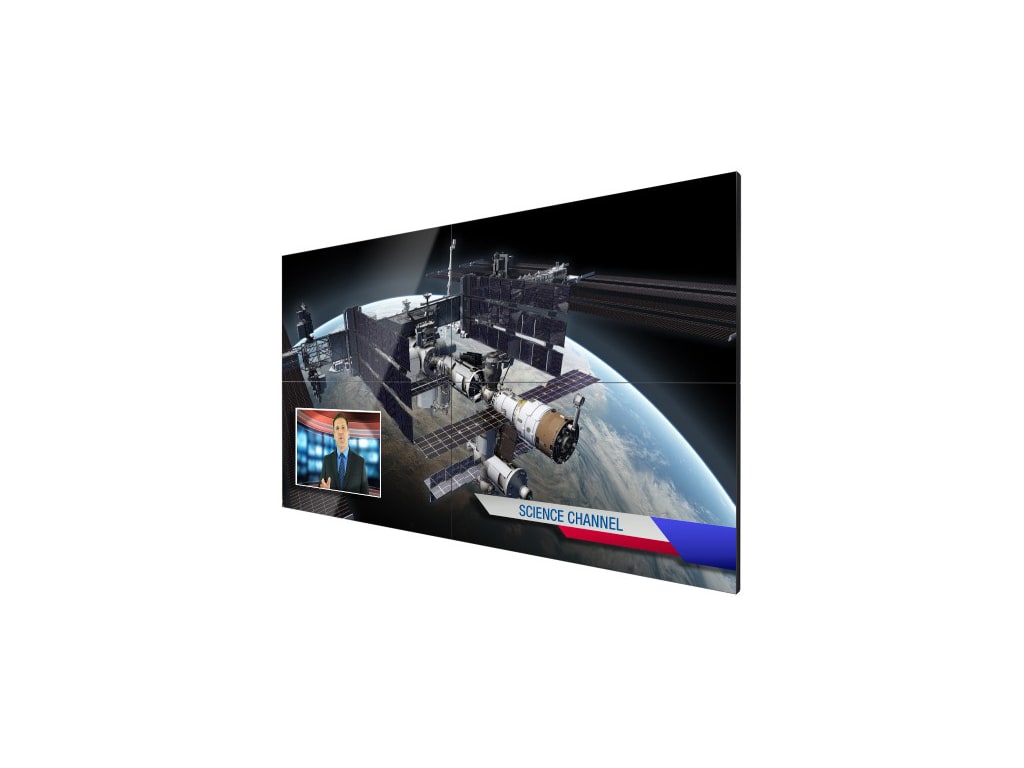

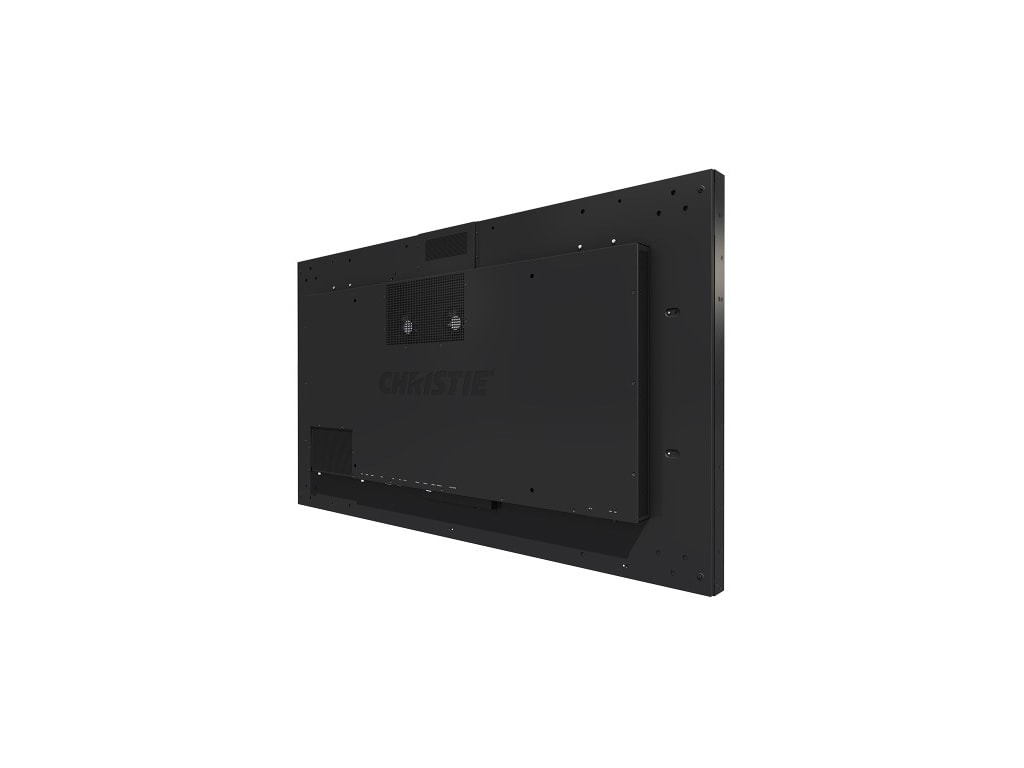

Christie FHD493-XE 49" LCD Panel with Extreme-Narrow Bezel.

Shipping calculated at checkout.

Spec Sheet: View PDF File

Other Resources: View PDF File

Product Specifications
Description Extreme-Narrow Bezel LCD Panel
Screen size (diagonal) 48.5"/123.2cm
Native resolution 1920 x 1080 (16:9)
Backlight Direct-lit LED
LED lifespan 50,000 hours to 50% brightness
Display orientation Portrait and landscape
Pixel pitch 0.56 x 0.56mm
Nominal bezel size 1.8mm combined bezel to bezel
Brightness 500 nits (cd/m2) typical
Contrast ratio​ (full field) 1300:1 typical
Viewing angle (CR 10:1) 178° h/v
Refresh rate 50-60Hz
Response time 8 ms typical
Color space (CIE 1931) 72% typical
Display colors 10 bit, 1.07 billion
Control outputs RJ-45 for control looping
Power input rating 100-240 VAC @ 50-60Hz
Power consumption 105 W (Typ.) 140 W ​(Max.) without OPS1
Standby <= 0.5W
Operating temperature 41-95°F (5-35°C)
Operating humidity 20-90% RH non-condensing
Physical size (without handles) (WxHxD) 42.3 x 23.9 x 3.8" (1075.7 x 605.9​ x 97.7mm)
Physical weight (without handles) 56.7lbs (25.7kg)
Mounting VESA (WxH) 400 x 400mm, M8 (15mm internal depth)
Runtime Designed for 24/7 operation featuring a reliable power supply and cooling system2
What's in the Box:
  • Panel ships with DisplayPort cable
  • IR remote control
  • External IR receiver
  • Power cable (AC or DC daisy chain)
  • Control daisy chain cable
  • Alignment brackets
Product Description:

Elevate your video wall experience with the Christie FHD493-XE 49" Extreme-Narrow Bezel LCD Panel. Featuring a stunning full HD resolution and support for 4K scaling, this display ensures crisp and vibrant visuals that captivate viewers.

With a slim 1.8mm combined bezel width, this LCD panel offers a seamless viewing experience ideal for creating immersive video walls. Its 500 nits brightness and 1300:1 typical contrast ratio deliver vivid images with exceptional clarity, making it perfect for a variety of business settings.

  • Full HD resolution for sharp, detailed imagery
  • Supports 4K resolution and scaling for impressive video walls
  • 500 nits brightness and 1300:1 contrast ratio for vibrant visuals
  • Designed for 24/7 operation with a reliable power supply and cooling system
  • Advanced electronics platform and OPS slot for seamless integration

Christie FHD493-XE 49" LCD Panel with Extreme-Narrow Bezel.
