Product Specifications
Model: VK330 Specifications | |
Panel Spec | |
Display Type | TFT-LCD |
Size | 10.1" |
Touch Screen | Capacitive |
Resolution | 1280 x 800 |
Aspect Ratio | 16 : 9 |
Color Depth | 8 bit |
Contrast Ratio | 800 : 1 |
Backlight | LED |
Viewing Angle | ± 85° (H), ± 85° (V) |
Interfaces | |
Ethernet | 1 x RJ-45 Female, 10 / 100 / 1000 BaseT |
USB | 1 x USB Type A |
Power Inputs | |
Power over Ethernet (PoE) | 802.3 af PoE / 802.3 at PoE+ |
Power Consumption | DC48V:20WBTU |
Environmental | |
Operating Temperature | 0 - 40°C |
Storage Temperature | -10 - 55°C |
Humidity | 10 - 80% RH, Non-Condensing |
Physical Properties | |
Housing | Plastic |
Weight | 0.62 kg ( 1.37 lb ) |
Dimensions (L x W x H) | 25.20 x 17.78 x 2.45 cm (9.92 x 7 x 0.96 in.) |
Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
Product Description:

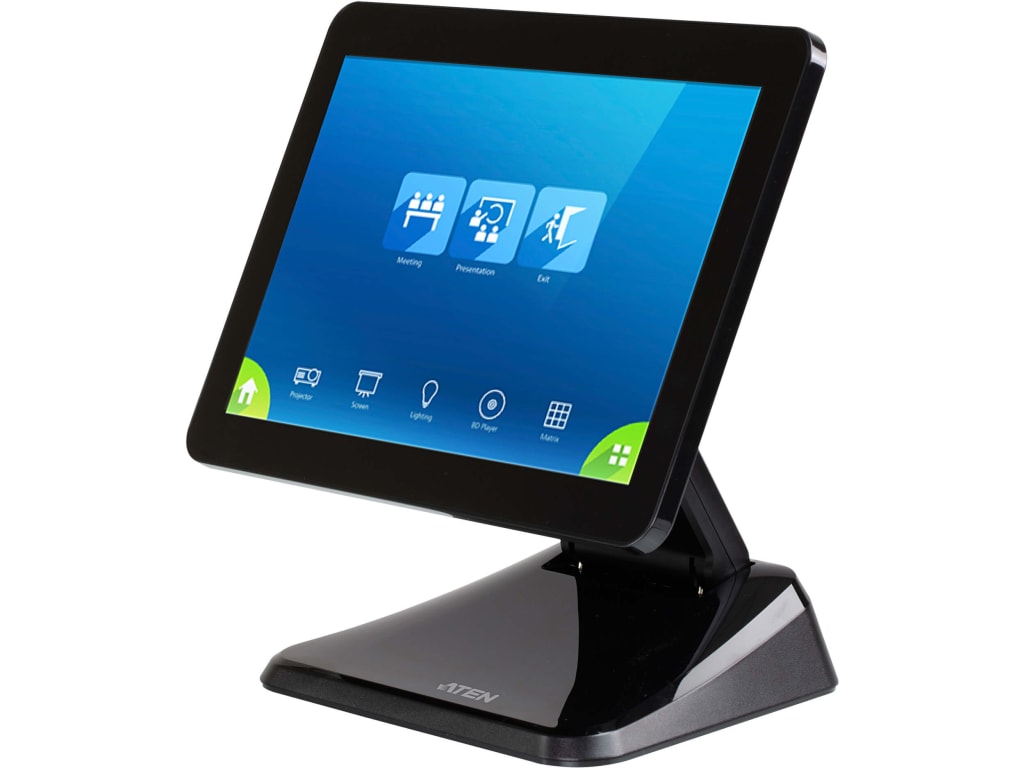

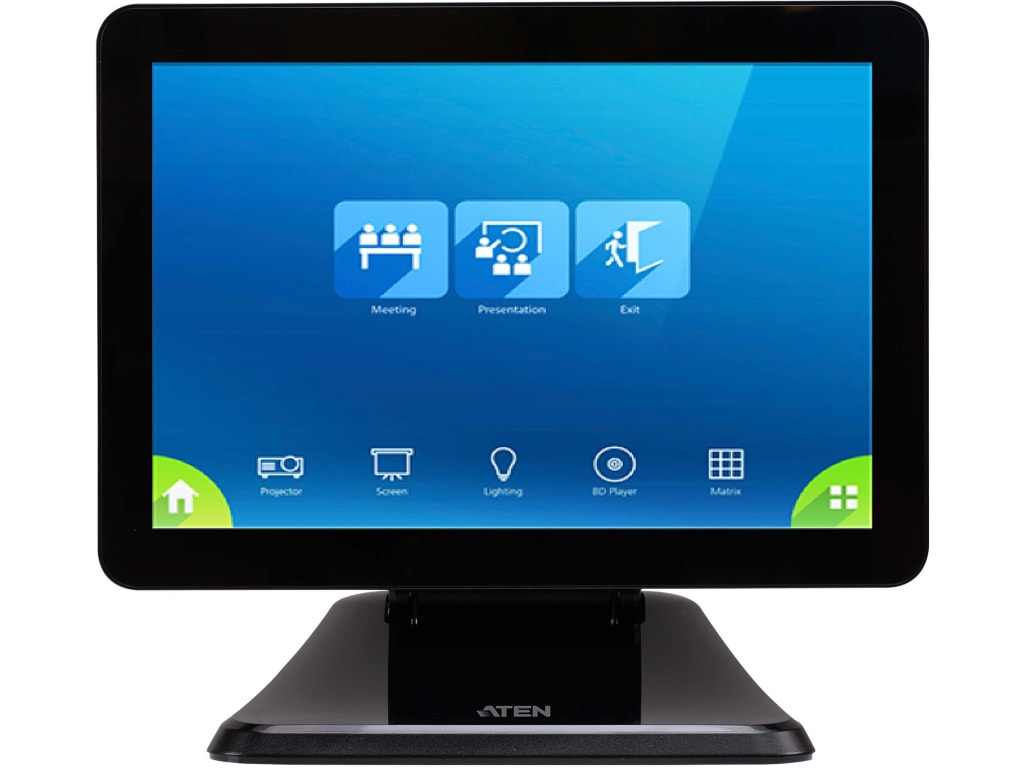

Elevate your control system with the Aten VK330 - 10.1" Capacitive Touch Panel. Immerse yourself in vibrant visuals and seamless touch response with its 1280 x 800 resolution and capacitive multi-touch screen.
- Experience precise device control with the natively installed ATEN Control System app.
- Simplify installation with Power over Ethernet (PoE) support.
- Effortlessly navigate menus and control devices with the responsive touch screen.

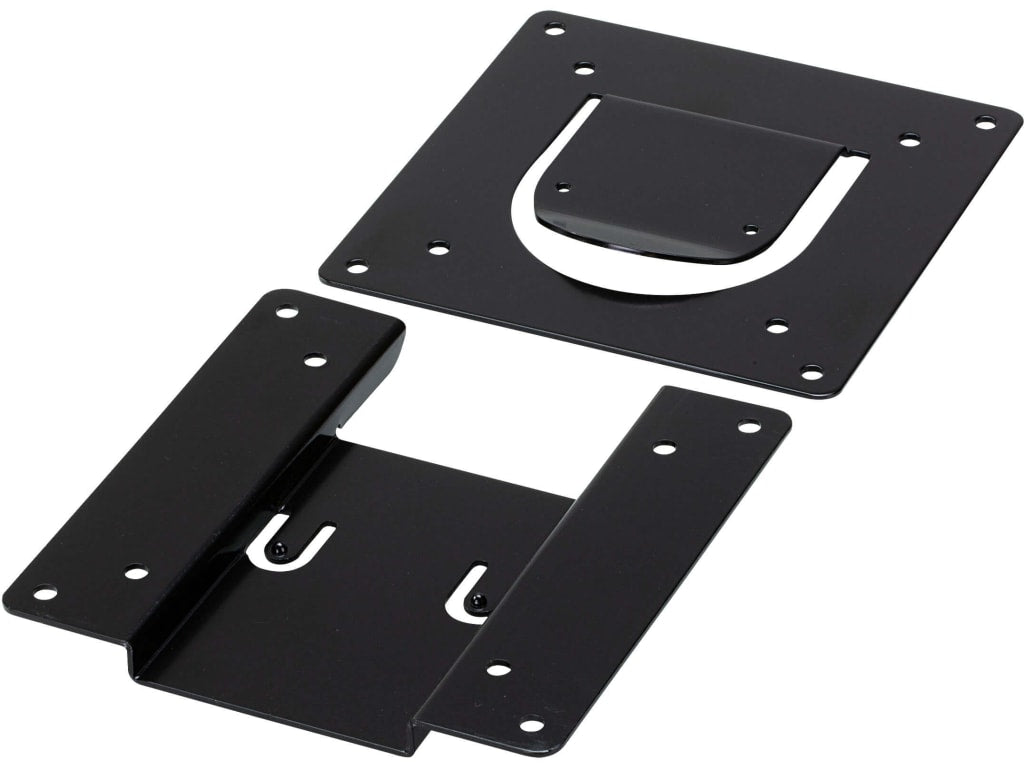

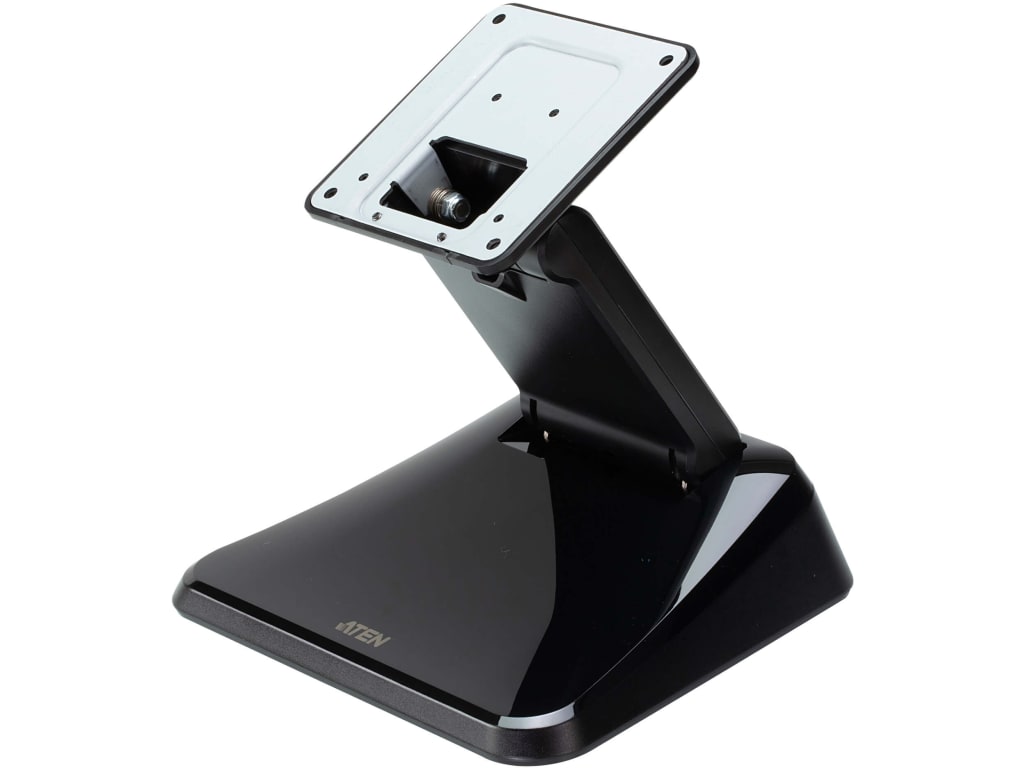

- Enhance flexibility with additional wall mount and tabletop kits.
- Achieve easy mounting on any surface with standard VESA 75 x 75 mm compatibility.
