Akiles  |  SKU: DUOMAC-C51

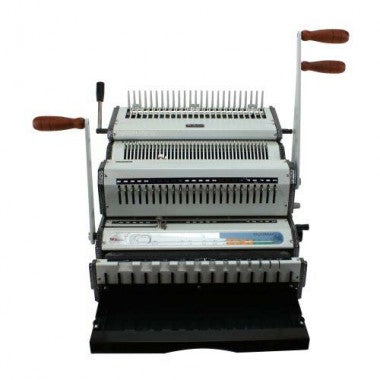

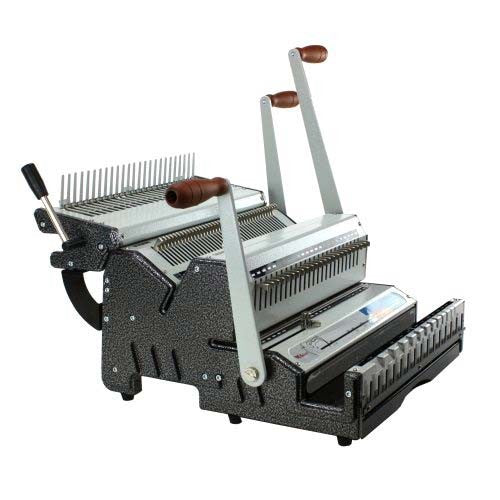

Akiles DuoMac C51 Plastic Comb and 5:1 Coil Binding Machine

$958.80
Shipping calculated at checkout.

Brochure View PDF File

User Manual: View PDF File

Product Specifications
Product Name Akiles DuoMac C51 Plastic Comb and 5:1 Coil Binding Equipment
Manufacturer Akiles
SKU DUOMAC-C51
Punch Length (inches) 13
Punch Pitch 9/16, 5:1
Paper Punch Volume (lbs.) 20
Category DuoMac
Binding Operation Manual
Binding Type Comb Binding, Wire Binding
Punch Operation Manual
Binding Capacity (Diameter") Comb (1/4 - 2) , Coil (1/8 - 1-7/8)
Binding Capacity (Sheets) Comb (30 - 425), Coil (25 - 450)
Number of pitches 2
Paper Size Letter
Punch Hole Size (mm) (5/16 x 1/8) , (4 x 5)
Depth Margin Adjustable
Warranty 1 Year
Included Accessories Coil Crimper
Country of Origin Taiwan
User Type Commercial
Closing Mechanism Vertical
Reverse Switch No
Waste Drawer Yes
Side Margin Adjustable
Disengageable Pins Comb (54) , Coil (5)
Punch Hole Shape Oval, Rectangular
Number of Holes Comb (24) , Coil (53)
Punching Capacity (Sheets) 20
Product Description:

The Akiles DuoMac C51 plastic comb and coil binding equipment is a versatile machine designed for efficient punching and binding operations using Plastic Combs and 5:1 Pitch Spiral Coil. This binding machine streamlines the process, turning time-consuming tasks into professionally finished booklets.


  • Two-in-One Comb & 4:1 Coil Binding Machine
  • 425 Comb Binding Capacity, 450 Coil Binding Capacity
  • 5 Disengageable Pins for Coil
  • 13" Punch Length

The Akiles DuoMac C51 features two independent punching die sets, allowing for large-scale punching and binding operations. It is equipped with Punch, Wire Closer, and Comb Opener Handles for user convenience. The built-in Punch Throat & Ruler ensure accurately measured punching, while the Depth Margin Control feature provides appropriate punch margin depth.


This binding machine accommodates up to 20 sheets for single punching and documents up to 14" in length. The Open Punching Throat & Continuous Punching Guide facilitate professional handling of longer documents. With a Master Selector for determining Wire Diameter, Closing Position, Depth Margin & Wire Pitch, users can shape the final output as needed.


The Akiles DuoMac C51 boasts a heavy-duty design powered by CAE technology, ensuring efficient operation. It features a Diameter Scale for instant document thickness gauging, a built-in wire holder for stability during operation, and a spacious waste drawer for a tidy workspace. The Side Margin Control enables neat and well-aligned punches, enhancing the overall professional look of the output.


Backed by a 1-Year Manufacturer Warranty, this binding machine is ideal for commercial use, offering manual binding operations for both Comb and Wire Binding. With adjustable depth margin and disengageable pins, the Akiles DuoMac C51 provides versatility and precision in punching and binding tasks.
