Akiles CoilMac-ECI+ Electric Coil Binding Machine
Brochure View PDF File
User Manual: View PDF File
Product Specifications
| Product Name | Akiles CoilMac-ECI+ Electric Coil Binding Equipment |
| Manufacturer | Akiles |
| SKU | ACM-ECI41+ |
| Punch Length (inches) | 11 |
| Punch Pitch | 4:1 |
| Paper Punch Volume (lbs.) | 20 |
| Category | CoilMac |
| Binding Operation | Electric |
| Binding Type | Coil Binding |
| Punch Operation | Manual |
| Binding Capacity (Diameter") | 1 |
| Binding Capacity (Sheets) | 250 |
| Number of pitches | 1 |
| Paper Size | All Paper Size |
| Punch Hole Size (mm) | (4 x 5) |
| Depth Margin | Adjustable |
| Warranty | 1 Year |
| Included Accessories | Coil Crimper, Coil Diameter Selector |
| Country of Origin | Taiwan |
| User Type | Large Office |
| Closing Mechanism | Vertical |
| Reverse Switch | No |
| Waste Drawer | Yes |
| Side Margin | Adjustable |
| Disengageable Pins | 54 |
| Punch Hole Shape | Oval |
| Number of Holes | 44 |
| Punching Capacity (Sheets) | 20 |
Product Description:

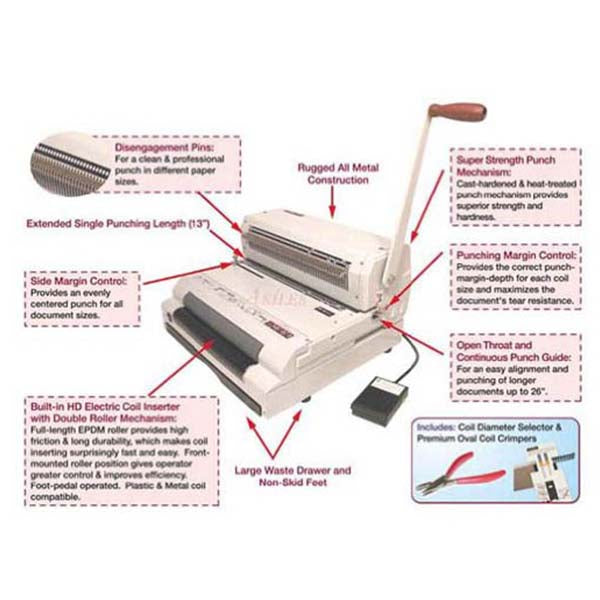

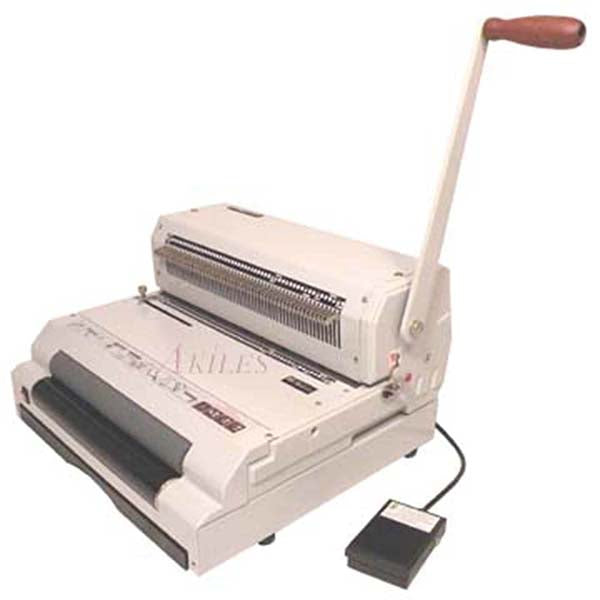

The Akiles CoilMac-ECI+ Electric Coil Binding Equipment sets a new standard in industrial binding with its innovative features and robust construction. Ideal for busy offices, this machine is designed to handle high-capacity work efficiently.
The CoilMac-ECI+ can punch up to 20 sheets of 20 lbs paper in a single manual punch, showcasing its ability to manage large workloads with ease. With an extended 13" punching length, it can accommodate documents up to 26" by utilizing its open-ended design. The continuous punching guide ensures precise alignment during operation.
Its punching die features unique 4x5mm oval-shaped holes with a 4:1 letter pitch, enhancing binding and coil insertion processes significantly. The die set includes fully disengageable pins, allowing for accurate punching of various paper sizes by conveniently disengaging individual pins as needed.

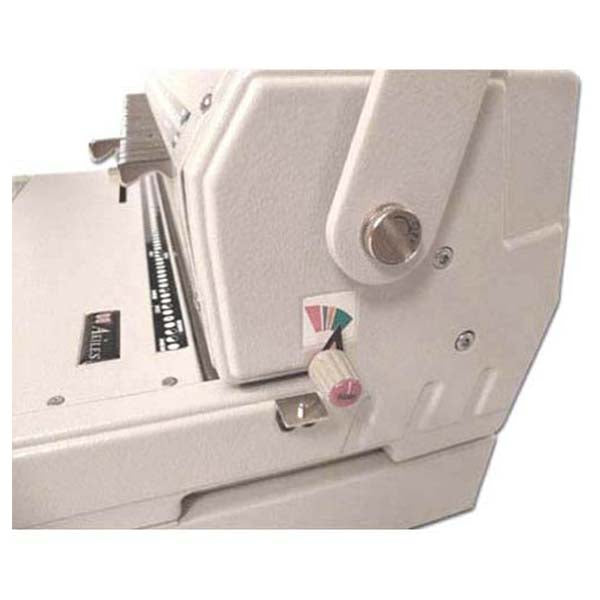

The CoilMac-ECI+ ensures perfect coil-bound documents with features like side margin and punching margin controls for proper paper alignment and punch depth selection. Additionally, it includes a coil size selection guide for added convenience.

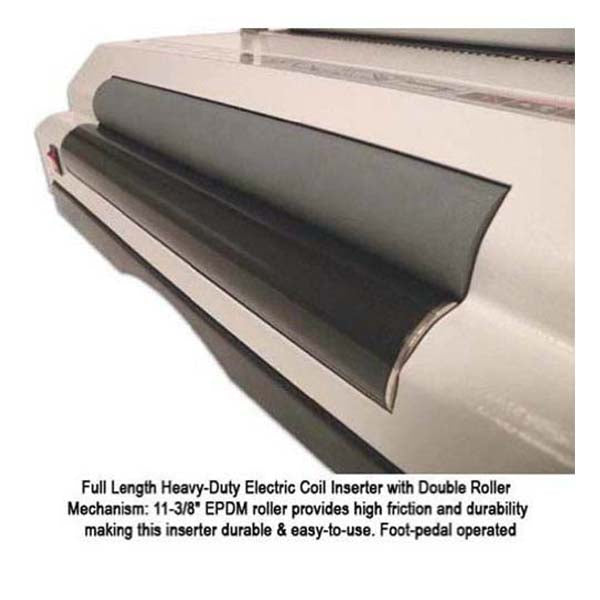

Equipped with an electric coil inserter operated by a double roller mechanism and foot pedal, this machine efficiently inserts coils into punched documents at high speeds. The package also includes a quality coil crimping tool, completing the coil binding process seamlessly.
