Akiles CoilMac-ECI Electric Coil Binding Machine
Brochure View PDF File
User Manual: View PDF File
Product Specifications
| Product Name | Akiles CoilMac-ECI Electric Coil Binding Equipment |
| Manufacturer | Akiles |
| SKU | ACM-ECI41 |
| Punch Length (inches) | 11 |
| Punch Pitch | 4:1 |
| Paper Punch Volume (lbs.) | 20 |
| Category | CoilMac |
| Binding Operation | Electric |
| Binding Type | Coil Binding |
| Punch Operation | Manual |
| Binding Capacity (Diameter") | 7/8 |
| Binding Capacity (Sheets) | 230 |
| Number of pitches | 1 |
| Paper Size | A4 Size |
| Punch Hole Size (mm) | 4 |
| Depth Margin | Adjustable |
| Warranty | 1 Year |
| Included Accessories | Coil Crimper, Coil Diameter Selector |
| Country of Origin | Taiwan |
| User Type | Medium Office |
| Closing Mechanism | Vertical |
| Reverse Switch | No |
| Waste Drawer | Yes |
| Side Margin | Adjustable |
| Disengageable Pins | 5 |
| Punch Hole Shape | Round |
| Number of Holes | 43 |
| Punching Capacity (Sheets) | 20 |
Product Description:
The Akiles CoilMac-ECI Electric Coil Binding Equipment is a top-tier solution for all coil binding needs in workplaces. With a punching capacity of 20 sheets and an extended 13" punching length, this machine is designed for high-volume work, offering efficiency and reliability.
Constructed with a rugged design, the CoilMac-ECI features a durable punching die made of cast-hardened, heat-treated steel for heavy-duty use. The die set includes 5 disengageable pins, allowing for precise punching of various paper sizes. The standard 4mm round holes with a 4:1 pitch ensure consistent and professional results.

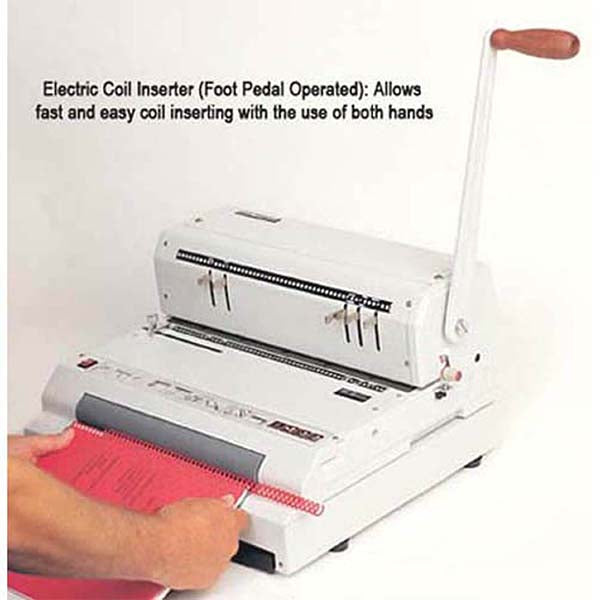

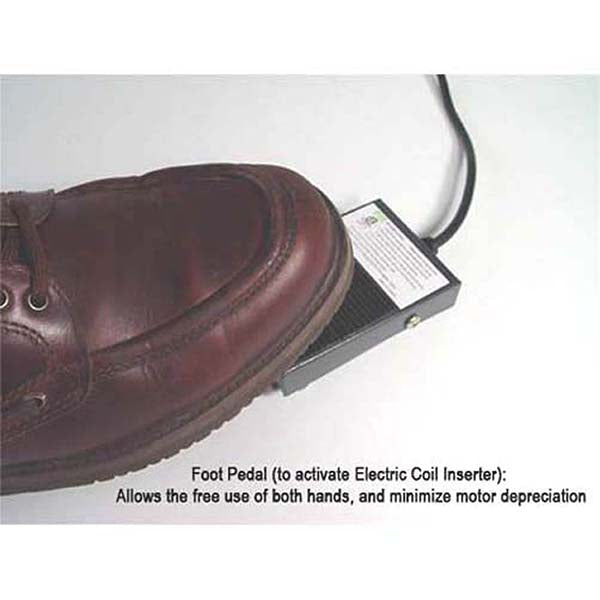

For added convenience, this electric coil binding machine comes equipped with a built-in electric coil inserter and coil crimpers. The electric coil inserter streamlines the coil insertion process with its double roller mechanism, accommodating both plastic and metallic coils efficiently.

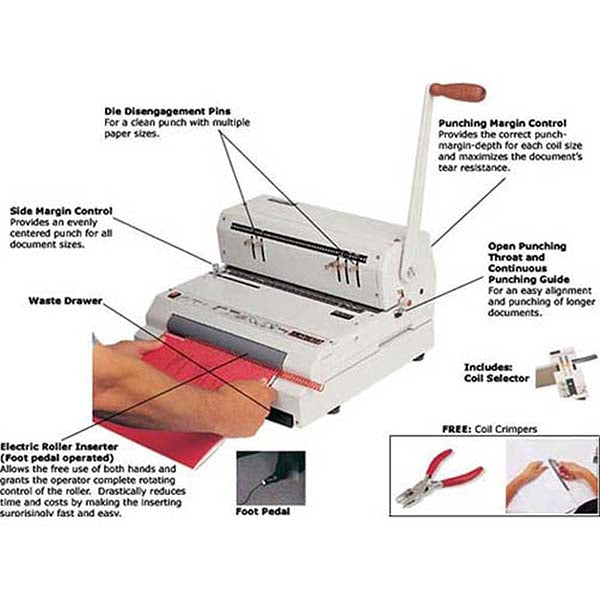

Akiles has incorporated practical features into the CoilMac-ECI to enhance user experience and output quality. The continuous punching guide enables punching of documents longer than the machine's standard length, while the side margin control and punching margin control assist in precise alignment for optimal results.
